C9200L-48P-4G-E

Model:

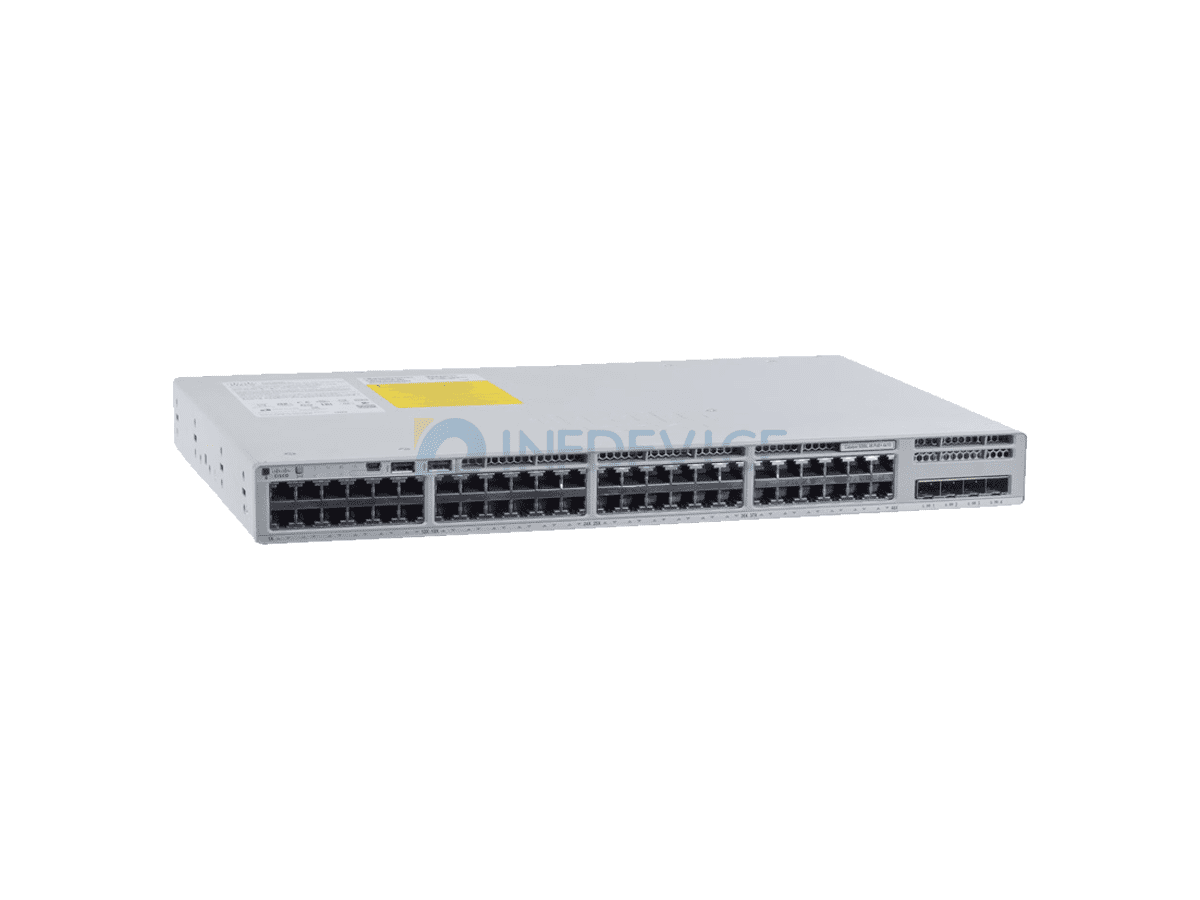

Cisco Catalyst 9200L 48-Port PoE+ Switch

Detail:

Cisco Catalyst 9200L 48-port PoE+ Switch with 4x1G uplink, offering Network Essentials.

Price:

US$1,800.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Cisco C9200L PoE Switch 48 Port PoE Switch 48 Port Switch 48 Port Gigabit Switch Convergence Switches C9200L-48P-4G

Add to Cart

Overview

C9200L-48P-4G-E: Power and Flexibility for Your Network

The C9200L-48P-4G-E is a versatile and powerful switch, designed to meet the needs of small to medium-sized businesses. With 48 full Power over Ethernet Plus (PoE+) ports, it can easily support devices like IP phones, wireless access points, and security cameras. Its four 1G uplinks provide ample bandwidth for network connectivity.

Key Features & Benefits

Full PoE+ Support: Power a wide range of devices directly through the switch, eliminating the need for separate power adapters.
High Reliability: Redundant power supplies, fans, and modular uplinks ensure your network stays up and running.
Flexible Deployment: Choose between data or PoE+ for your downlink connections, and stack multiple switches for increased capacity.
Advanced Security: Protect your network with MACsec encryption, policy-based segmentation, and a trustworthy system design.
Layer 3 Capabilities: Support for routing protocols like OSPF and EIGRP enables efficient network traffic management.
Simplified Management: Cisco DNA Center and SD-Access streamline network operations and deployment.
Plug and Play: Easy setup and configuration for new devices.

Model Comparison

Model	Description	Software	PoE+ Ports
C9200L-48T-4G-A	48-port Data, 4x1G uplink	Network Advantage	0
C9200L-48T-4G-E	48-port Data, 4x1G uplink	Network Essentials	0
C9200L-48P-4G-A	48-port PoE+, 4x1G uplink	Network Advantage	48
C9200L-48P-4G-E	48-port PoE+, 4x1G uplink	Network Essentials	48

The C9200L-48P-4G-E stands out with its combination of full PoE+ support on all ports and the streamlined Network Essentials software. This makes it an ideal choice for businesses that need to power a large number of devices while keeping network management simple and efficient.

Specification

C9200L-48P-4G-E Specification
Fans	Fixed redundant
Software	Network Essentials
Chassis Dimensions	1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm
Virtual Networks	1
Stacking bandwidth	80 Gbps
Downlinks total 10/100/1000 or PoE+ copper ports	48 ports full POE+
Uplink configuration	4x 1G fixed uplinks
Default primary AC power supply	PWR-C5-1KWAC
Total number of MAC addresses	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries	3,000
IPv6 routing entries	1,500
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,500
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	2 GB
Flash	4 GB
VLAN IDs	1024
Switching capacity	104 Gbps
Forwarding rate	154.76 Mpps
Mean time between failures (hours)	347,760
Total Switched Virtual Interfaces (SVIs)	512
Jumbo frames	9198 bytes
Wireless bandwidth per switch	N/A

Q&A

How many PoE+ ports does the C9200L-48P-4G-E have, and what is their power output?

It has 48 PoE+ ports, each providing up to 30W of power.

What is the switching capacity and forwarding rate of the C9200L-48P-4G-E?

It boasts a 104 Gbps switching capacity and a 154.76 Mpps forwarding rate for smooth network traffic.

Does the C9200L-48P-4G-E support stacking, and what is the stacking bandwidth?

Yes, it supports stacking with up to 80 Gbps bandwidth for increased port density and resiliency.

What are some key features and benefits of the Catalyst 9200 series that the C9200L-48P-4G-E inherits?

Key features include PoE+ support, high resiliency, flexible downlinks, stacking, enhanced security, Layer 3 capabilities, and advanced network monitoring.

What are some common troubleshooting steps for the C9200L-48P-4G-E if I encounter issues?

Common steps include verifying power and cables, checking LEDs, and reviewing switch configuration and logs.
