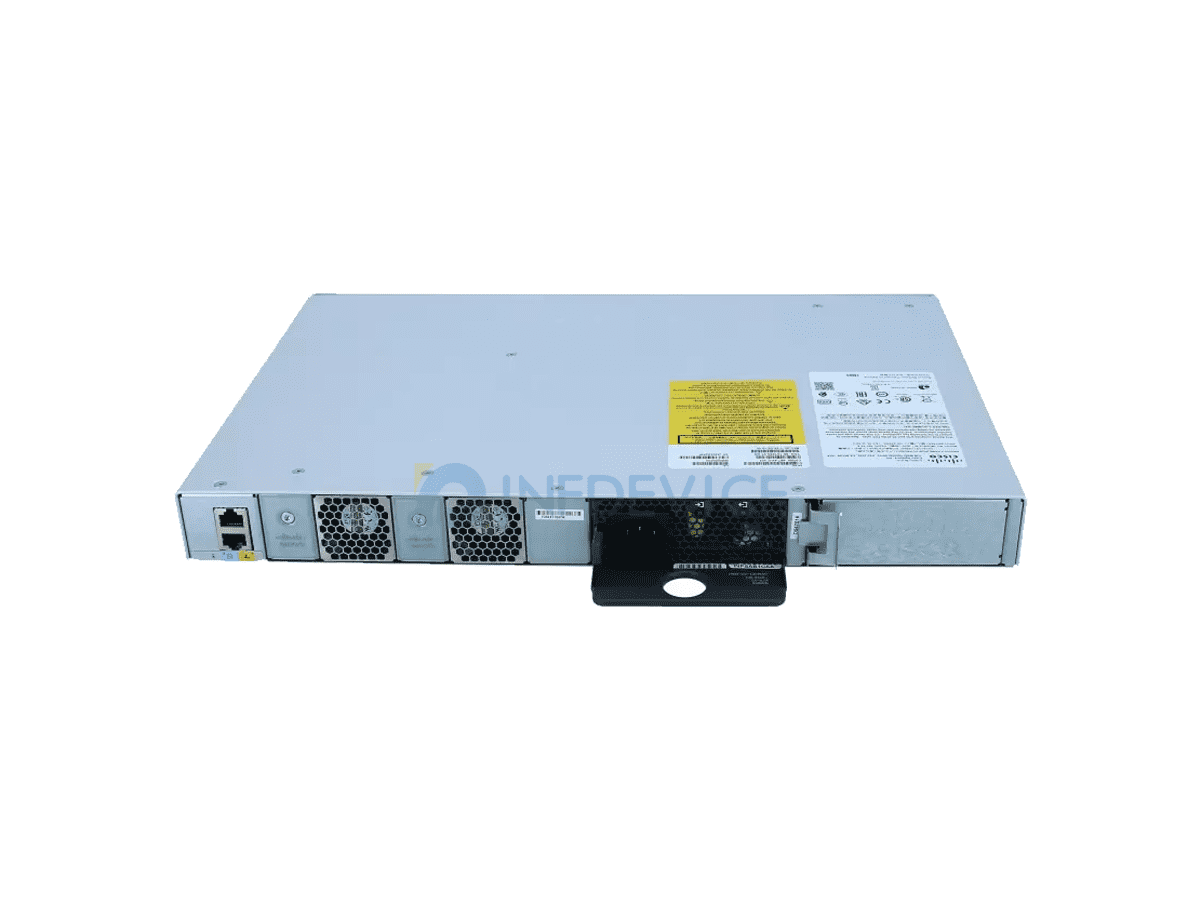

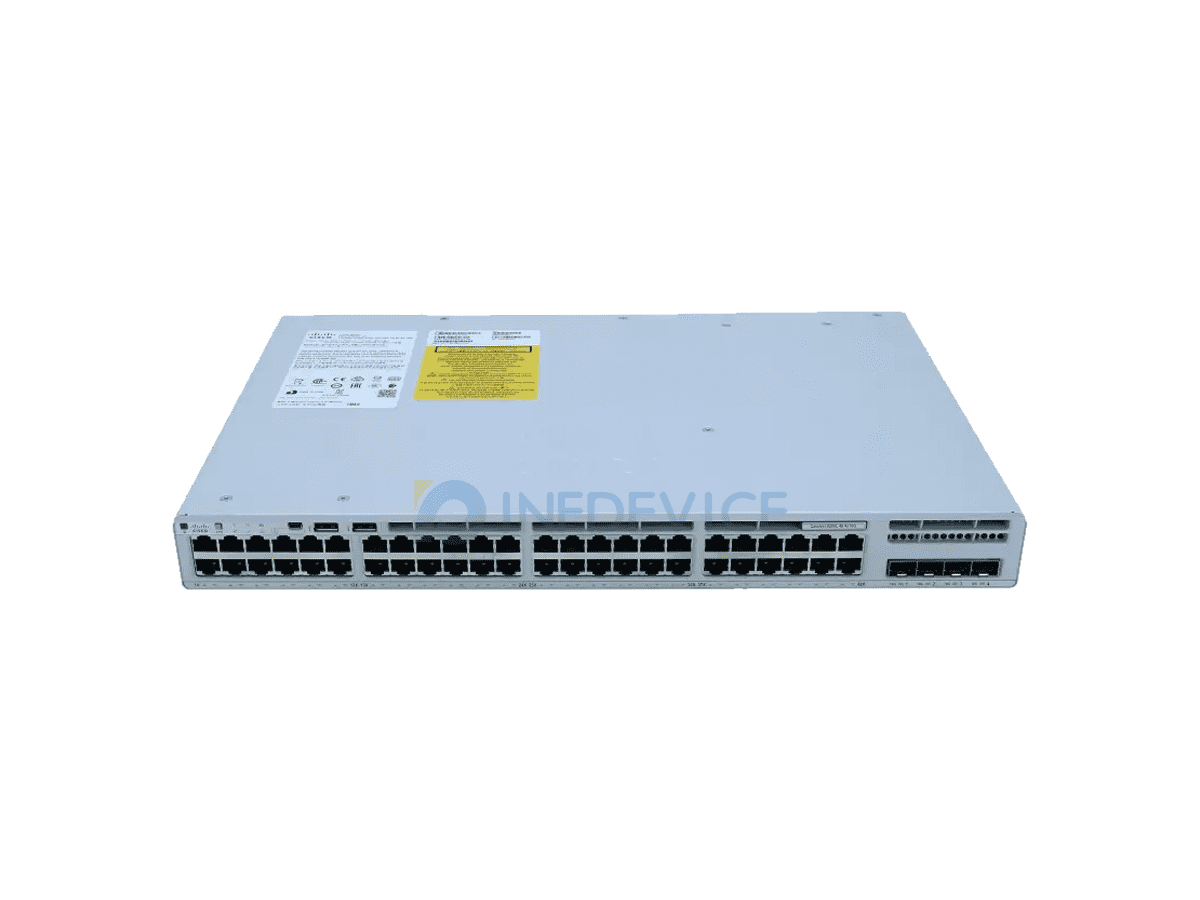

C9200L-48T-4X-E

C9200L-48T-4X-E Specification

Downlinks total 10/100/1000 or PoE+ copper ports

48 ports data

Uplink configuration

4x 10G fixed uplinks

Default primary AC power supply

PWR-C5-125WAC

Fans

Fixed redundant

Software

Network Essentials

Chassis Dimensions

1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm

Virtual Networks

1

Stacking bandwidth

80 Gbps

Total number of MAC addresses

16,000

Total number of IPv4 routes (ARP plus learned routes)

11,000 (8,000 direct routes and 3,000 indirect routes)

IPv4 routing entries

3,000

IPv6 routing entries

1,500

Multicast routing scale

1,000

QoS scale entries

1,000

ACL scale entries

1,500

Packet buffer per SKU

6 MB buffers for 24- or 48-port Gigabit Ethernet models

Flexible NetFlow (FNF) entries

16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM

2 GB

Flash

4 GB

VLAN IDs

1024

Total Switched Virtual Interfaces (SVIs)

512

Jumbo frames

9198 bytes

Wireless bandwidth per switch

N/A

Switching capacity

176 Gbps

Forwarding rate

261.9 Mpps

Mean time between failures (hours)

503,400
