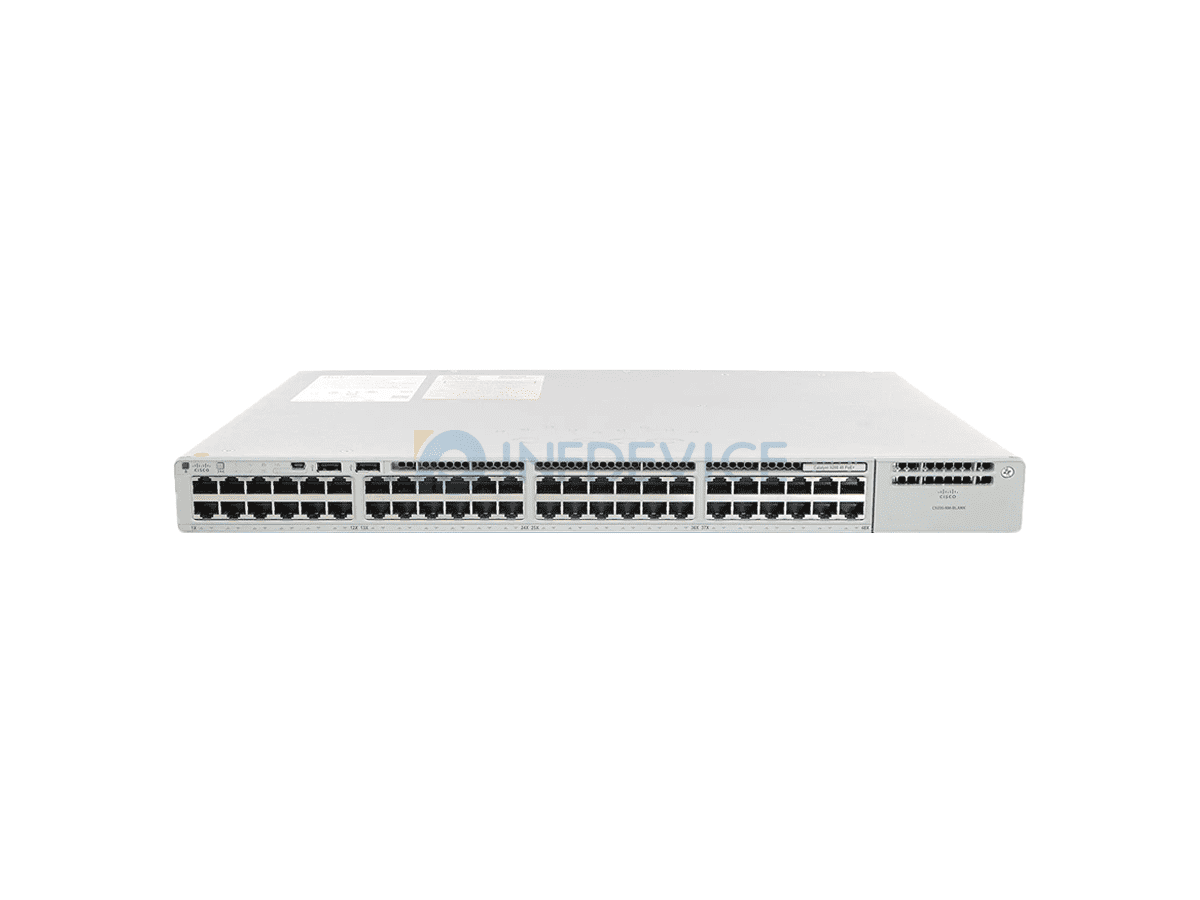

C9200-48P-E

C9200-48P-E Specification

Downlinks total 10/100/1000 or PoE+ copper ports

48 ports full PoE+

Uplink configuration

Modular uplink options

Default primary AC power supply

PWR-C6-1KWAC

Virtual Networks

4

Stacking bandwidth

160 Gbps

Total number of MAC addresses

32,000

Fans

FRU redundant

Software

Network Essentials

Chassis Dimensions

1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Total number of IPv4 routes (ARP plus learned routes)

14,000 (10,000 direct routes and 4,000 indirect routes)

IPv4 routing entries

4,000

IPv6 routing entries

2,000

Multicast routing scale

1,000

QoS scale entries

1,000

ACL scale entries

1,600

Packet buffer per SKU

6 MB buffers for 24- or 48-port Gigabit Ethernet models

Flexible NetFlow (FNF) entries

16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM

4 GB

Flash

4 GB

VLAN IDs

4096

Switching capacity

176 Gbps

Forwarding rate

261.9 Mpps

Total Switched Virtual Interfaces (SVIs)

1000

Jumbo frames

9198 bytes

Wireless bandwidth per switch

Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model

Mean time between failures (hours)

375,570
