C9200L-24P-4G-E

Model:

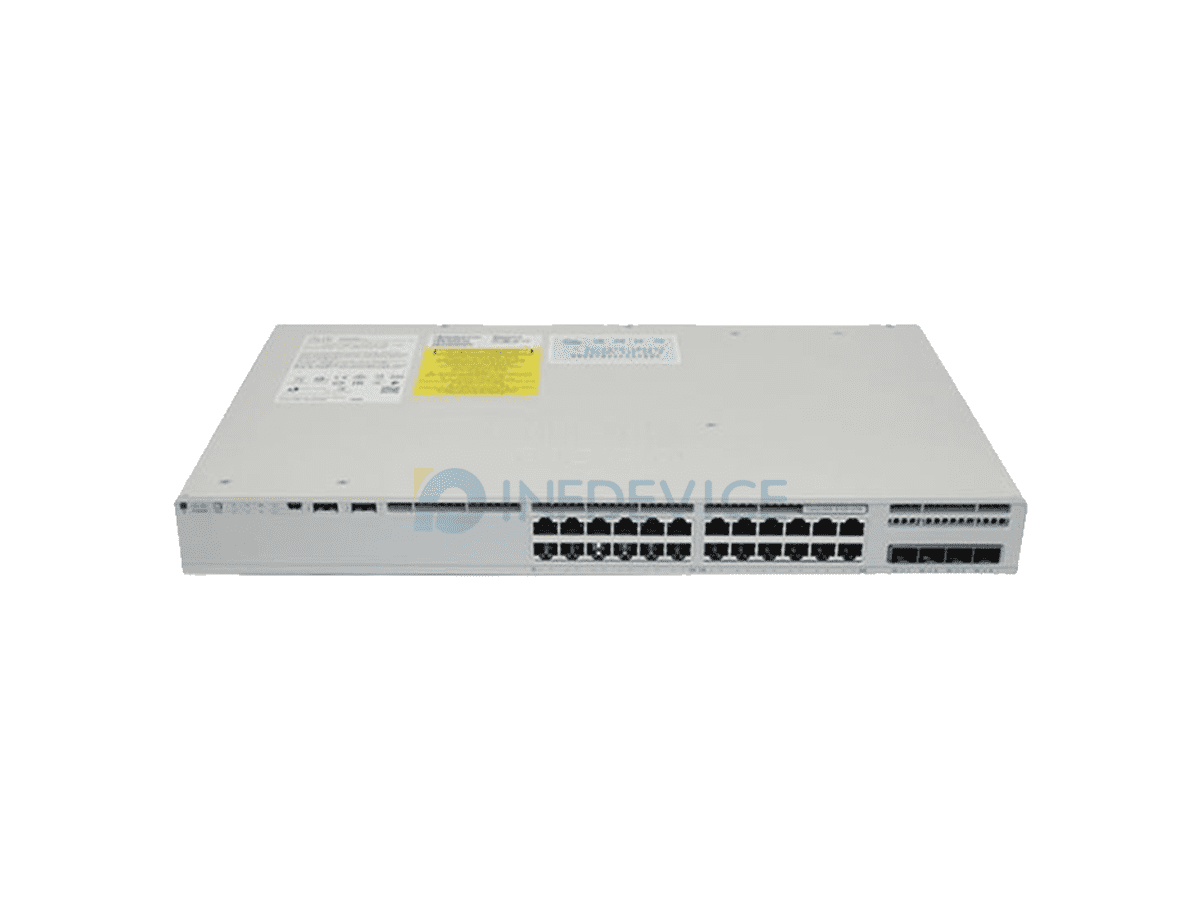

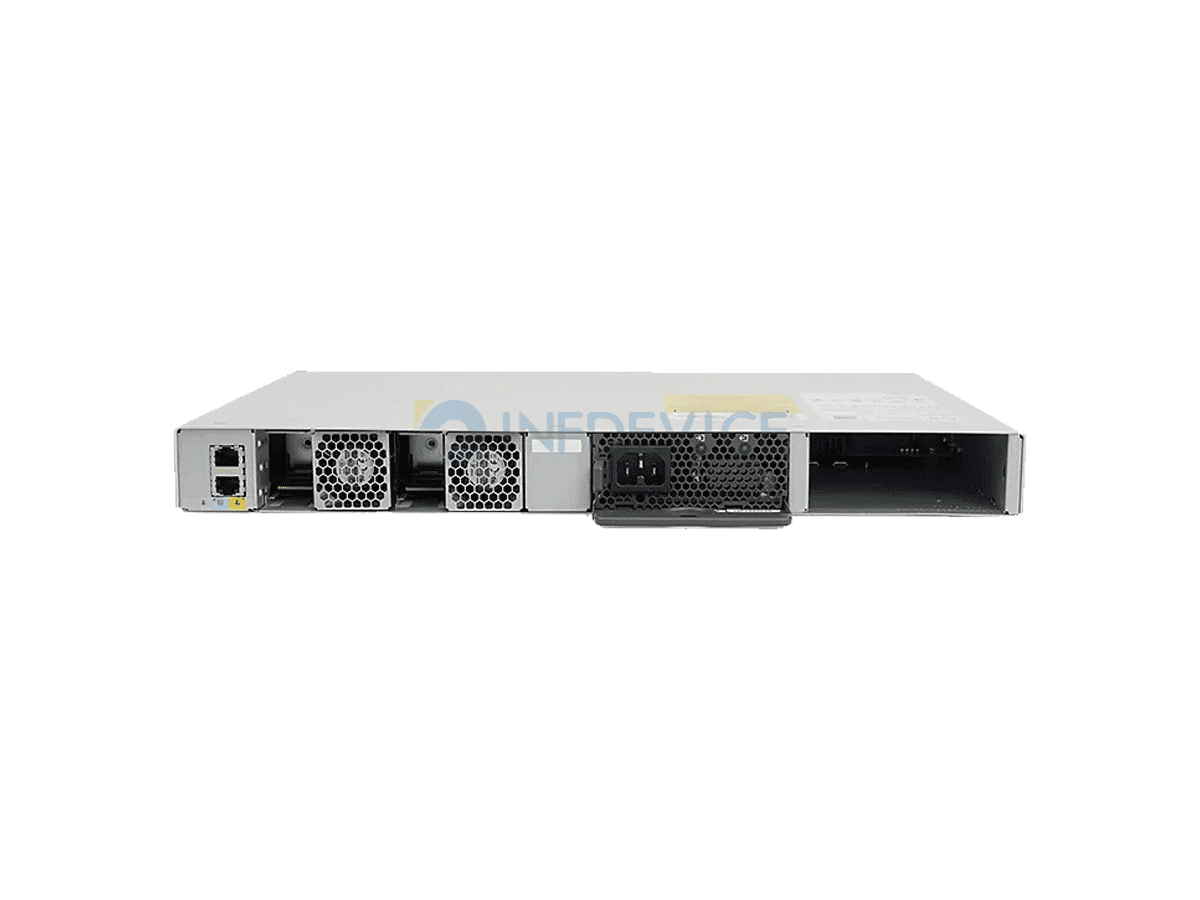

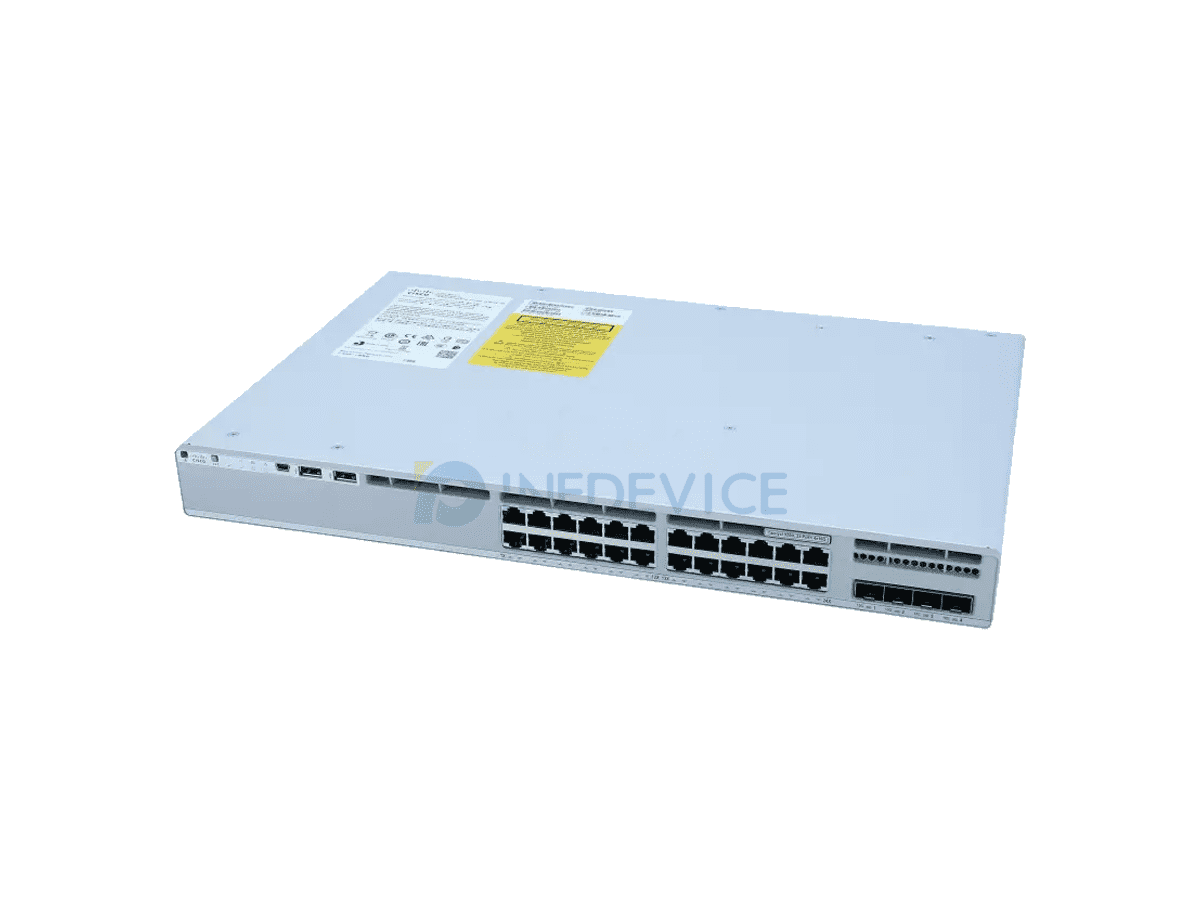

Cisco Catalyst 9200L 24-Port PoE+ Switch

Detail:

Cisco Catalyst 9200L 24-port PoE+ Switch featuring 4x1G uplink, part of the Network Essentials series.

Price:

US$1,000.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Cisco C9200L 24 Port Gigabit Switch PoE Switch Convergence Switches C9200-24P C9200L-24P-4G

Add to Cart

Overview

Cisco Catalyst 9200L-24P-4G-E Switch: Detailed Overview

The Cisco Catalyst 9200L-24P-4G-E is a versatile and powerful access layer switch designed to streamline network operations while delivering enterprise-grade features. As part of the Catalyst 9200 Series, it inherits the benefits of intent-based networking and Catalyst 9000 innovation, making it an ideal choice for a wide range of deployments.

Key Features and Benefits:

Full PoE+ Support: 24 ports of full Power over Ethernet Plus (PoE+) enable seamless connectivity for devices like IP phones, wireless access points, and security cameras.
High Availability: Field-Replaceable Units (FRUs), redundant power supply and fans ensure continuous operation, minimizing downtime.
Flexible Connectivity: Downlink ports can be configured for data or PoE+, adapting to evolving needs.
Scalable Stacking: Optional backplane stacking (up to 160 Gbps) provides scalability for growing networks.
Optimized Performance: UADP 2.0 Mini with integrated CPU delivers optimized scale and cost efficiency.
Enhanced Security: Advanced security measures like AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems protect your network.
Layer 3 Capabilities: Support for routing protocols like OSPF, EIGRP, ISIS, RIP, and routed access enables efficient traffic management.
Advanced Network Monitoring: Full Flexible NetFlow provides deep visibility into network traffic for effective troubleshooting and optimization.
Cisco SD-Access: Simplified operations and deployment with policy-based automation from edge to cloud, managed by Cisco Identity Services Engine (ISE). Network assurance and improved resolution times are achieved through Cisco DNA Center.
Plug and Play (PnP): Easy and secure network device rollouts and updates, simplifying network management.
Cisco IOS XE: A unified operating system with model-driven programmability and streaming telemetry for enhanced network management.
ASIC with Programmable Pipeline: Optimizes performance through configurable allocation of Layer 2 and Layer 3 forwarding, ACLs, and QoS entries.

Technical Specifications:

Specification	Value
Model	C9200L-24P-4G-E
Downlink Ports	24 ports (10/100/1000 or PoE+)
Uplink Ports	4x 1G fixed uplinks
Power Supply	PWR-C5-600WAC
Fans	Fixed redundant
Software	Network Essentials
Stacking Bandwidth	80 Gbps
DRAM	2 GB
Flash	4 GB
Switching Capacity	56 Gbps
Forwarding Rate	83.33 Mpps
Dimensions	1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)
Weight	4.35 Kg

Supported Products:

StackWise-80 and StackWise-160 Kits and cables
Power supplies (PWR-C5-600WAC/2)

Comparison with Similar Models:

Model	Description	Key Difference
C9200L-24T-4G-A	24-port Data, 4x1G uplink, Network Advantage	No PoE+ support, Network Advantage software
C9200L-24T-4G-E	24-port Data, 4x1G uplink, Network Essentials	No PoE+ support
C9200L-24P-4G-A	24-port PoE+, 4x1G uplink, Network Advantage	Network Advantage software
C9200L-24P-4G-E	24-port PoE+, 4x1G uplink, Network Essentials	-

The Cisco Catalyst 9200L-24P-4G-E is a robust and adaptable switch, ideal for organizations seeking a secure, reliable, and future-ready network solution. Its combination of PoE+ capabilities, advanced features, and simplified management makes it a compelling choice for modern businesses.

Specification

C9200L-24P-4G-E Specification
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+
Uplink configuration	4x 1G fixed uplinks
Default primary AC power supply	PWR-C5-600WAC
Fans	Fixed redundant
Software	Network Essentials
Chassis Dimensions	1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm
Weight	4.35 Kg
Virtual Networks	1
Stacking bandwidth	80 Gbps
Total number of MAC addresses	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries	3,000
IPv6 routing entries	1,500
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,500
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	2 GB
Flash	4 GB
VLAN IDs	1024
Total Switched Virtual Interfaces (SVIs)	512
Jumbo frames	9198 bytes
Wireless bandwidth per switch	N/A
Switching capacity	56 Gbps
Forwarding rate	83.33 Mpps
Mean time between failures (hours)	392,210

Q&A

What is the main difference between the C9200L-24P-4G-E and the Catalyst 2960-X series?

The C9200L-24P-4G-E offers superior performance, more PoE+ power outputs, and advanced security features compared to the 2960-X series.

What is the switching capacity and forwarding rate of the C9200L-24P-4G-E?

The C9200L-24P-4G-E has a switching capacity of 56 Gbps and a forwarding rate of 83.33 Mpps.

How many MAC addresses and IPv4/IPv6 routes does the C9200L-24P-4G-E support?

It supports up to 16,000 MAC addresses, 11,000 IPv4 routes (8,000 direct and 3,000 indirect), and 1,500 IPv6 routing entries.

Does the C9200L-24P-4G-E support stacking for increased bandwidth?

Yes, it supports stacking with a bandwidth of up to 80 Gbps.

What is the warranty provided with the C9200L-24P-4G-E?

The C9200L-24P-4G-E comes with a 3-year warranty.
