C9500-16X-A

Model:

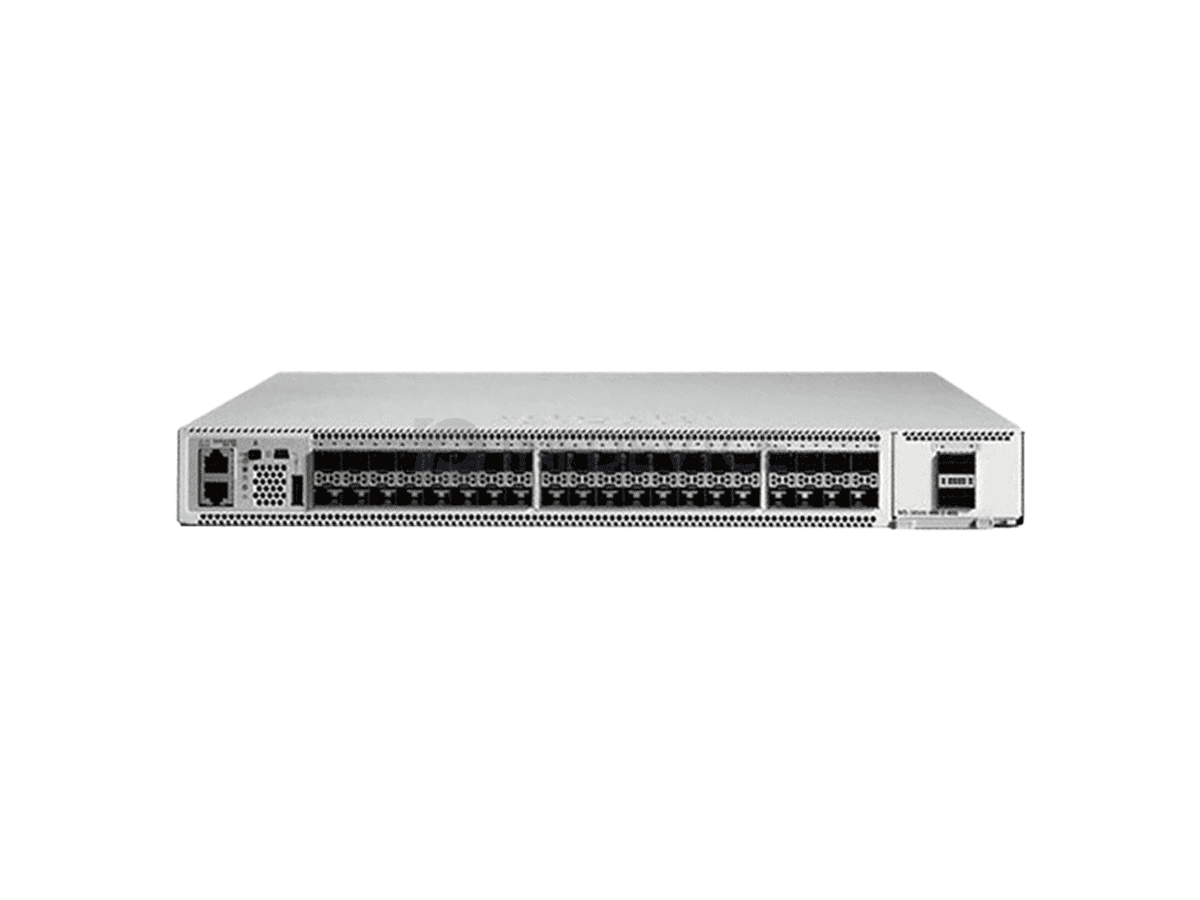

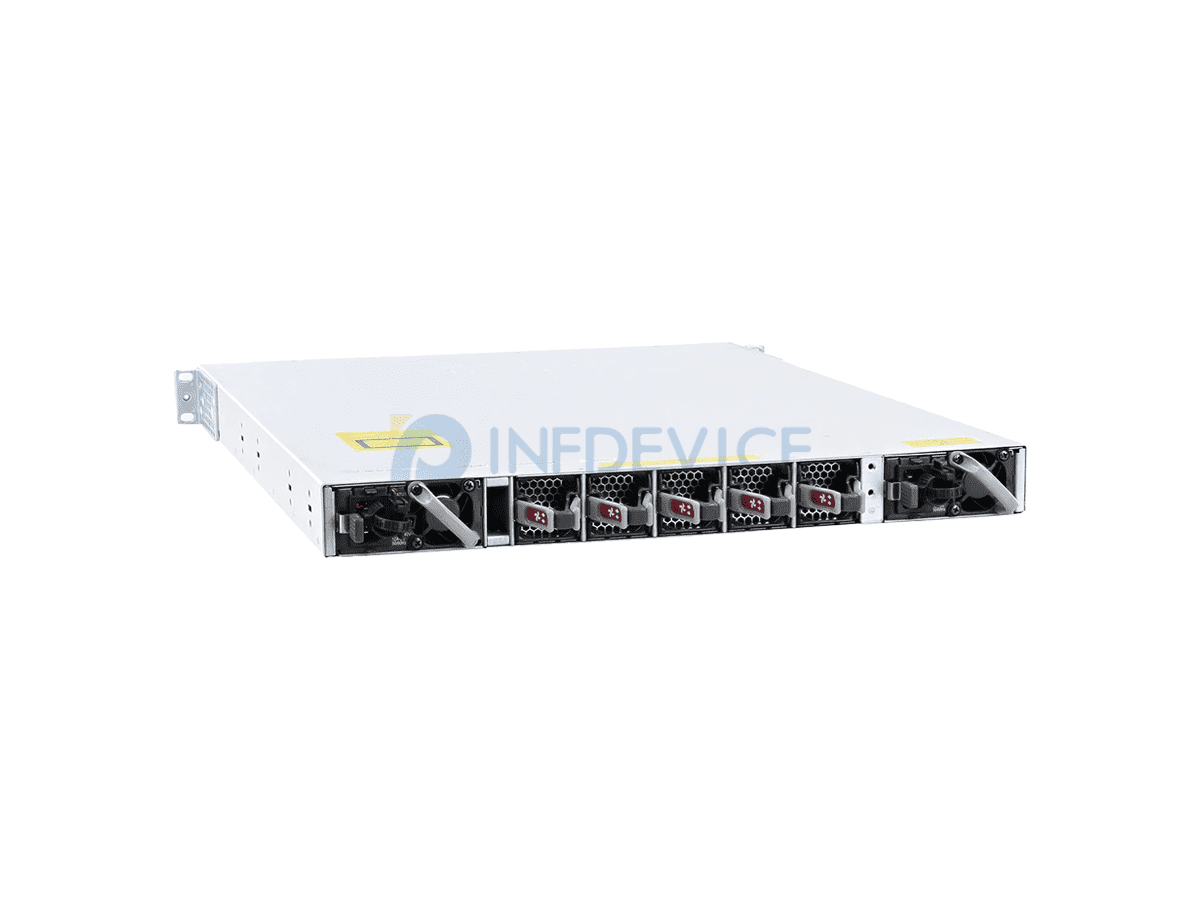

Cisco ONE Catalyst 9000 Series C9500-16X-A

Detail:

Cisco Catalyst 9500 16-port 10Gig switch with Advantage for enhanced network performance.

Price:

US$6,800.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

C9500-16X

Add to Cart

Ovenview

C9500-16X-A: Empowering the Next-Generation Enterprise Network

The Cisco C9500-16X-A stands as a high-performance, 16-port 10 Gigabit Ethernet switch, meticulously crafted to address the dynamic requirements of contemporary enterprise networks. It is an integral part of the Cisco Catalyst 9500 Series, embodying a new era in core and aggregation layer switching, distinguished by its complete programmability and serviceability.

Key Advantages

Future-Proof Performance: Built on a robust x86 CPU, it delivers exceptional switching capacity and forwarding rates, ensuring your network can effortlessly handle the escalating demands of bandwidth-intensive applications and substantial data traffic.
Enterprise-Grade Security: The C9500-16X-A integrates advanced security features to shield your network from threats and vulnerabilities, bolstering your overall defense posture.
Cloud and IoT Optimized: Purpose-built to support the burgeoning adoption of cloud services and the Internet of Things (IoT), it furnishes the scalability and adaptability necessary for a modern digital infrastructure.
Simplified Management: The switch's full programmability empowers you to automate network operations and streamline management tasks, enhancing efficiency.

Quick Specs at a Glance

Feature	Value
Product Code	C9500-16X-A
Description	Catalyst 9500 16-port 10 Gigabit Ethernet switch, with Network Advantage license
Switching Capacity	Up to 480 Gbps
Forwarding Rate	Up to 360 Mpps
DRAM	16 GB
Flash	16 GB
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 inches
Rack Units (RU)	1 RU

Feature Highlights

High-Density 10G Connectivity: Offers 16 ports of 10 Gigabit Ethernet, facilitating high-speed network access for demanding applications.
Flexible Uplinks: Supports SFP/SFP+ transceivers, enabling 8 x 1/10 G or 2 x 40 G uplinks for adaptable and scalable network designs.
Secure Segmentation: Implements robust segmentation with SD-Access, effectively isolating network traffic and fortifying security.
Advanced Routing: Supports MPLS Level 2/3 VPNs and MVPN, providing flexible design templates to accommodate intricate network topologies.
Enhanced Limited Lifetime Warranty (E-LLW): Provides long-term assurance with Cisco's comprehensive warranty coverage.

Compare and Contrast

Feature	C9500-16X-A	C9500-32C-A
Description	Catalyst 9500 16-port 10 Gigabit Ethernet switch, with Network Advantage license	Cisco Catalyst 9500 Series high-performance 32-port 100G switch, with Network Advantage license
Switching Capacity	Up to 480 Gbps	Up to 3.2 Tbps
Forwarding Rate	Up to 360 Mpps	Up to 2 Bpps
DRAM	16 GB	16 GB
Flash	16 GB	16 GB
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 inches	1.73 x 17.5 x 21.2 inches
Rack Units (RU)	1 RU	1RU

The Cisco C9500-16X-A is a powerful and versatile switch that delivers the performance, security, and scalability required for modern enterprise networks. Whether you're aiming to upgrade your existing infrastructure or construct a new network from the ground up, the C9500-16X-A is an exceptional choice.

Specification

C9500-16X-A Specification

C9500-16X-A Specification
Performance specifications
Switching capacity	Up to 480 Gbps
Forwarding rate	Up to 360 Mpps
Total number of MAC addresses	Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 64,000 indirect Up to 80,000 host
Total number of IPv6 routes	Up to 32,000 indirect Up to 40,000 host
QoS ACL scale	Up to 18000
Security ACL scale	Up to 18000
FNF entries	Up to 512,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9198 bytes
Power supply specifications
Power Supply Selection	PWR-C4-950WAC-R or PWR-C4-950WDC-R
Power max rating	950 W
Dimensions, physical specifications, weight, and MTBF
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 in
Rack units (RU)	1 RU
Input voltage	90 to 264 VAC
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude	Operation up to 6000 feet at 55°C and 13,000 feet at 45°C
MTBF (hours)	315,790

Q&A

What are some common troubleshooting steps for the C9500-16X-A?

Start by checking physical connections, verifying configurations, and utilizing diagnostic commands like show and debug through the CLI.

Which accessories are compatible with the C9500-16X-A?

You can use compatible SFP+ transceivers, power supplies, and rack-mount kits.

How does the C9500-16X-A stack up against other Cisco Catalyst switches?

The C9500-16X-A boasts higher 10Gig port density, enhanced security features, and improved automation compared to older Catalyst models.

Is the C9500-16X-A switch a good fit for small to medium-sized businesses (SMBs)?

Absolutely, its advanced features and scalability make the C9500-16X-A an excellent choice for SMBs seeking a future-proof network solution.

Does the C9500-16X-A support Power over Ethernet (PoE)?

No, the C9500-16X-A does not support PoE.

Can the C9500-16X-A be managed through a web interface?

Yes, it can be managed through both a web interface and a command-line interface (CLI).
