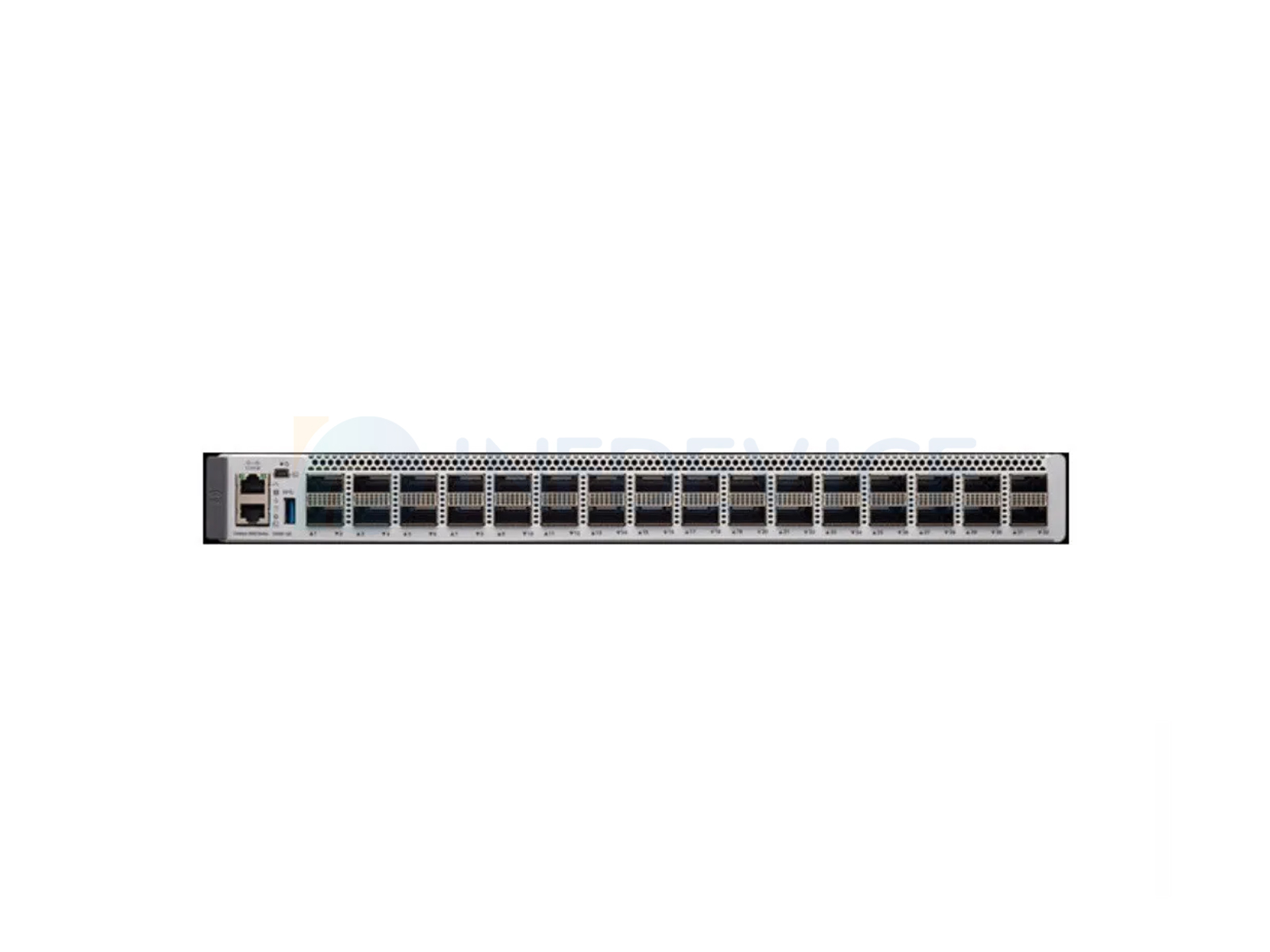

C9500-12Q-E

C9500-12Q-E Specifications

Switching capacity

Up to 960 Gbps

Forwarding rate

Up to 720 Mpps

Total number of MAC addresses

Up to 64,000*

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 64,000 indirect*

Up to 32,000 host*

Total number of IPv6 routes

Up to 32,000 indirect*

Up to 16,000 host*

Multicast scale

Up to 48,000*

QoS ACL scale

Up to 18000*

Security ACL scale

Up to 18000*

FNF entries

Up to 512,000*

DRAM

16 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9198 bytes

Dimensions (H x W x D)

1.73 x 17.5 x 21.52 in

Rack units (RU)

1 RU

Input voltage

90 to 264 VAC

Operating temperature

32°F to 104°F (0° to 40°C)

Storage temperature

-4° to 149°F (-20° to 65°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude

Operation up to 6000 ft

MTBF (hours)

179,660

Power supply specifications

Power Supply Feature

Support in the Catalyst 9500 Series

AC power max rating

950W

System power consumption

850W max

Input-voltage range and frequency

AC 115 to 230 VAC, 50 to 60 Hz

Power supply efficiency

94%

Total output BTU (Note: 1000 BTU/hr = 293W)

2901 BTU/hr (850W) max

Input current

AC 10A at 115VAC, 5 A at 230VAC

Output ratings

12V at 79A, 12V at 3A

Output holdup time

AC = 10 ms at maximum load

Power-supply input receptacles

AC IEC 60320 C16

Power cord rating

AC 15A
