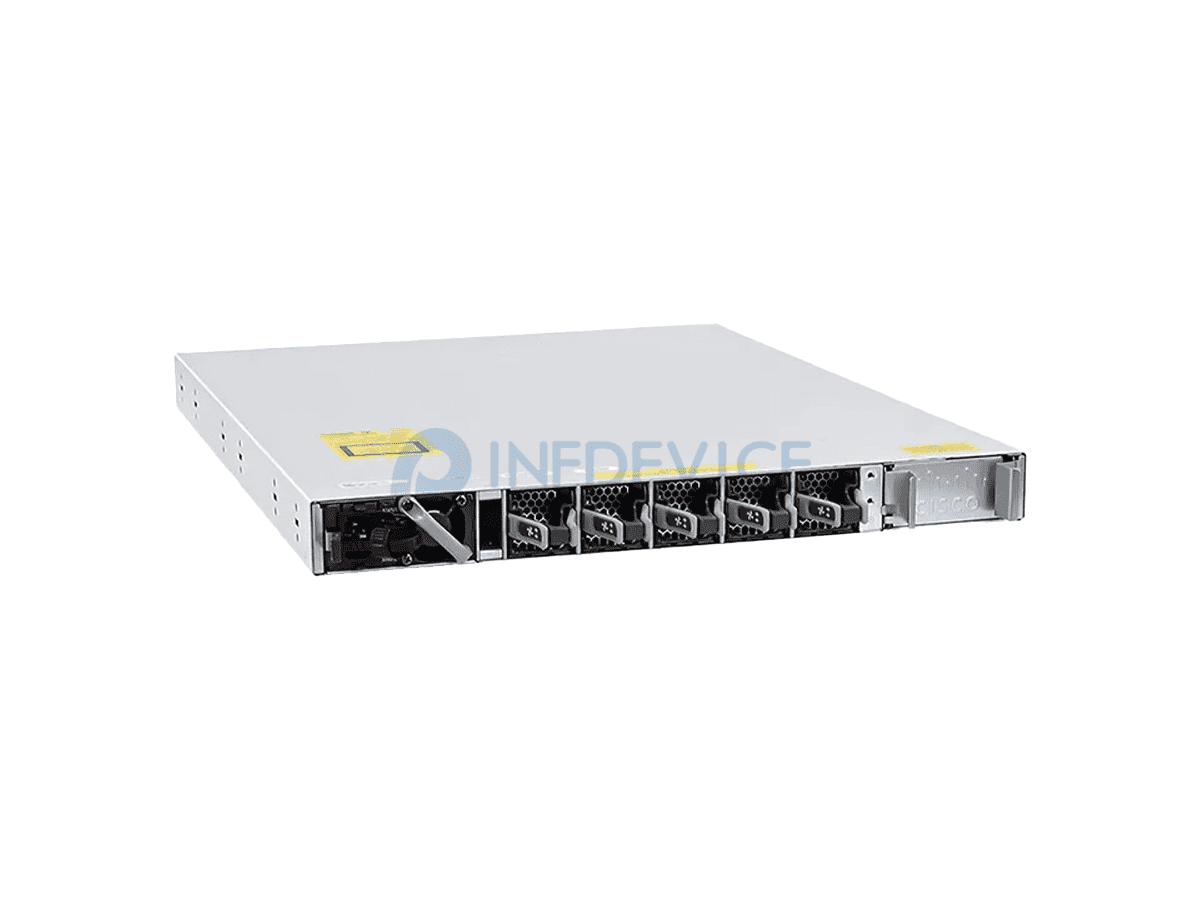

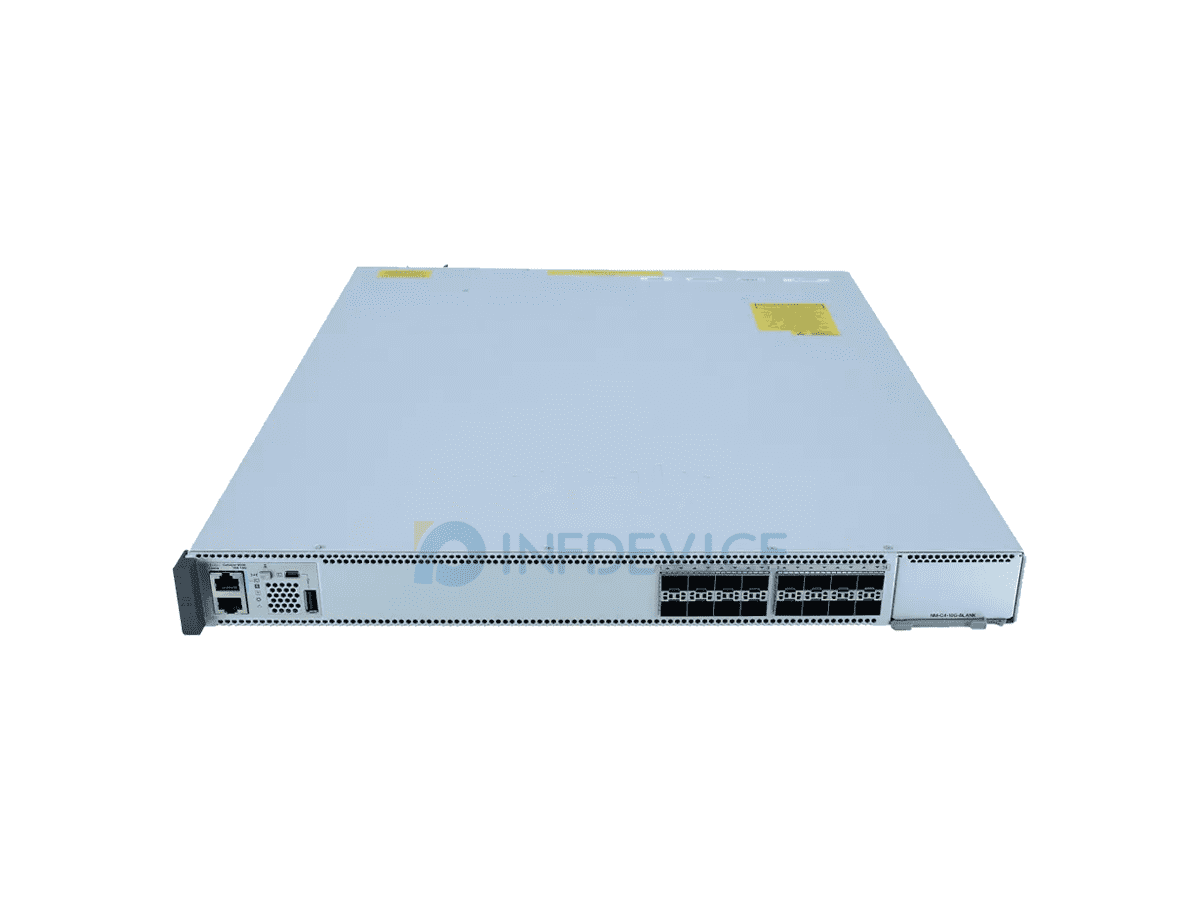

C9500-40X-E specifications |
|
Performance specifications |
|
Switching capacity |
Up to 960 Gbps |
Forwarding rate |
Up to 720 Mpps |
Total number of MAC addresses |
Up to 64,000* |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 64,000 indirect* Up to 32,000 host* |
Total number of IPv6 routes |
Up to 32,000 indirect* Up to 16,000 host* |
Multicast scale |
Up to 48,000* |
QoS ACL scale |
Up to 18000* |
Security ACL scale |
Up to 18000* |
FNF entries |
Up to 512,000* |
DRAM |
16 GB |
Flash |
16 GB |
VLAN IDs |
4000 |
Total Switched Virtual Interfaces (SVIs) |
4000 |
Jumbo frame |
9198 bytes |
Power supply specifications |
|
Power Supply Feature |
Support in the Catalyst 9500 Series |
AC power max rating |
950W |
System power consumption |
850W max |
Input-voltage range and frequency |
AC 115 to 230 VAC, 50 to 60 Hz |
Power supply efficiency |
94% |
Total output BTU (Note: 1000 BTU/hr = 293W) |
2901 BTU/hr (850W) max |
Input current |
AC 10A at 115VAC, 5 A at 230VAC |
Output ratings |
12V at 79A, 12V at 3A |
Output holdup time |
AC = 10 ms at maximum load |
Power-supply input receptacles |
AC IEC 60320 C16 |
Power cord rating |
AC 15A |
Dimensions, physical specifications, and MTBF |
|
Description |
Specifications |
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
Rack units (RU) |
1 RU |
Input voltage |
90 to 264 VAC |
Operating temperature |
32°F to 104°F (0° to 40°C) |
Storage temperature |
-4° to 149°F (-20° to 65°C) |
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
Altitude |
Operation up to 6000 ft |
MTBF (hours) |
180,640 |
