C9200-24P-A

Model:

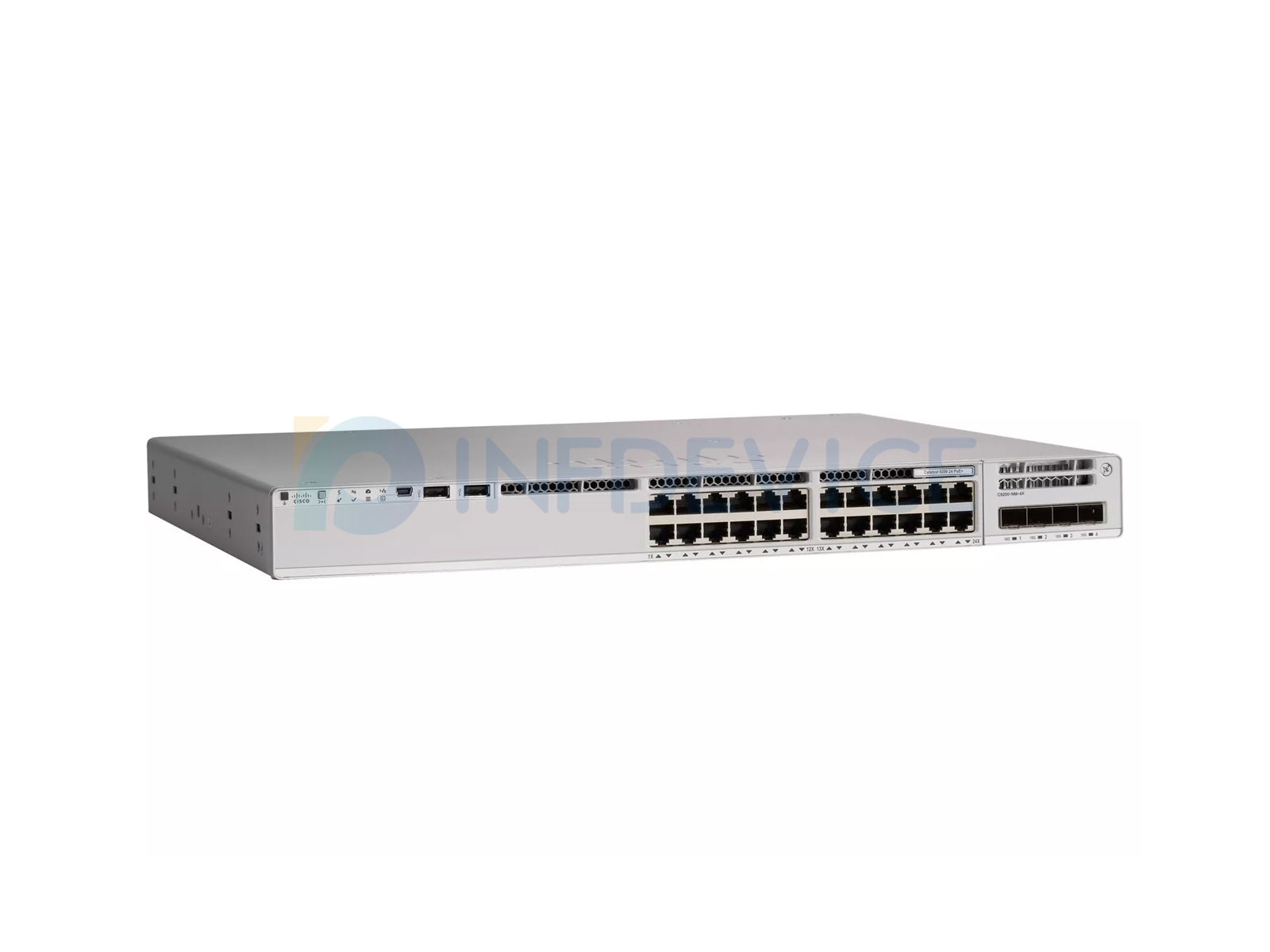

Cisco Catalyst 9200 24-Port PoE+ Switch

Detail:

Cisco Catalyst 9200 24-port PoE+ Switch, Network Advantage edition for advanced networking.

Price:

US$1,525.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

Specification

C9200-24P-A Specification
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+
Uplink configuration	Modular uplink options
Default primary AC power supply	PWR-C6-600WAC
Fans	FRU redundant
Software	Network Advantage
Chassis Dimensions	1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm
Virtual Networks	4
Stacking bandwidth	160 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries	4,000
IPv6 routing entries	2,000
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,600
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	4 GB
Flash	4 GB
VLAN IDs	4096
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Wireless bandwidth per switch	Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity	128 Gbps
Forwarding rate	190.4 Mpps
Mean time between failures (hours)	422,310

Q&A

Can I upgrade the software on the C9200-24P-A switch?

Yes, the C9200-24P-A switch supports software upgrades to take advantage of new features and bug fixes. Updates can be downloaded from the Cisco website and installed using the software upgrade process specified in the documentation.

What troubleshooting steps should I take if I encounter network connectivity issues with the C9200-24P-A switch?

First, check the physical connections and ensure that cables are properly connected. Next, verify the IP configuration and VLAN settings. If the issue persists, you can refer to the troubleshooting guide provided by Cisco or contact their technical support for further assistance.

How does the C9200-24P-A compare to other similar switches in terms of performance?

The C9200-24P-A switch offers high-performance switching with a forwarding rate of up to 154.76 Mpps. It also supports advanced features like StackWise-160 technology, providing enhanced scalability and resiliency compared to other switches in its class.

Can the C9200-24P-A switch be used for both Ethernet and PoE devices?

Yes, the C9200-24P-A switch supports both Ethernet and Power over Ethernet (PoE) devices. It provides 24 PoE+ ports, delivering power and data connectivity to devices like IP phones, wireless access points, and IP cameras without the need for additional power adapters.
