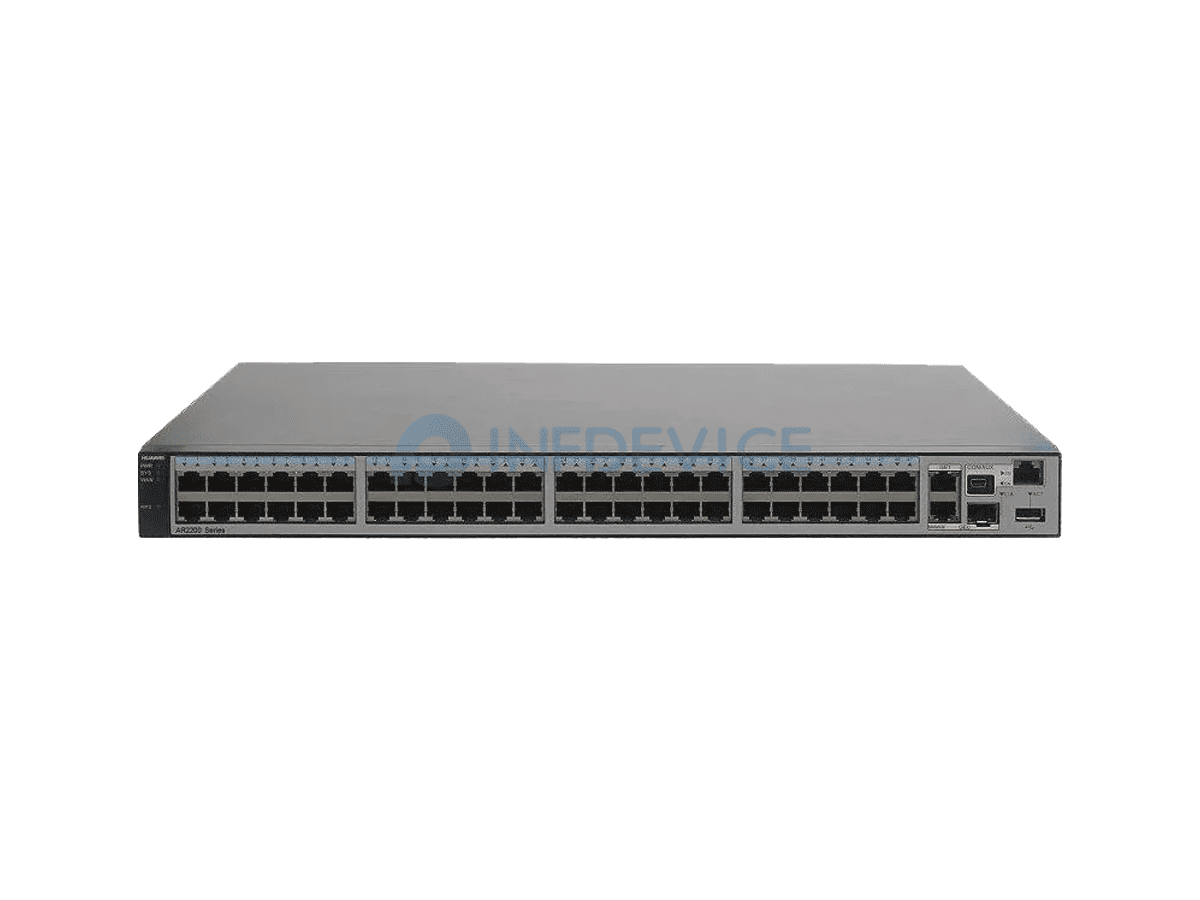

AR2202-48FE

AR2202-48FE Specifications

Type

AR2202-48FE, 2GE WAN(1GE Combo), 1 E1, 1 SA, 1 USB, 48FE LAN, 60W AC Power

Software Version

V200R003C00 and later

Dimensions (W x D x H)

442.0 mm x 314.9 mm x 43.6 mm

Memory

512 MB

Flash

512 MB

Hard disk

None

Service and Router Unit (SRU)

Not supported

Network data encryption (SM1/2/3/4) card

Not supported

Management interface

Supported

Console interface (RJ45)

Supported

Console interface (Mini USB)

Supported

USB 2.0 interface (host)

Supported

USB 2.0 interface (OTG)

None

Micro SD card (default)

Not supported

Antenna interfaces

None

Service interfaces (standard configuration)

WAN interfaces: 1 GE electrical interface, 1 GE combo interface, 1 SA interface, 1 E1 interface

LAN interfaces: 48 10/100M auto-sensing Ethernet electrical interfaces

Interface number

LAN interfaces: FE0-FE47

Extended slots

1

Power module type

Built-in AC power module

Rated voltage range

100 V AC/240 V AC, 50 Hz/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

RPS150

Supported

PoE

Not supported

Maximum PoE power for PDs

None

PoE+ interfaces

None

Weight

4.5 kg (9.92 lb)

Mounting brackets

Standard configuration

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating altitude

0-4000 m (0-13123 ft.)

Fan type

Built-in fans

Heat dissipation mode

Forcible air cooling

Installation mode

Rack mounting
