AR2204-27GE-P

Model:

AR2204-27GE-P - AR2200 Series Routers

Detail:

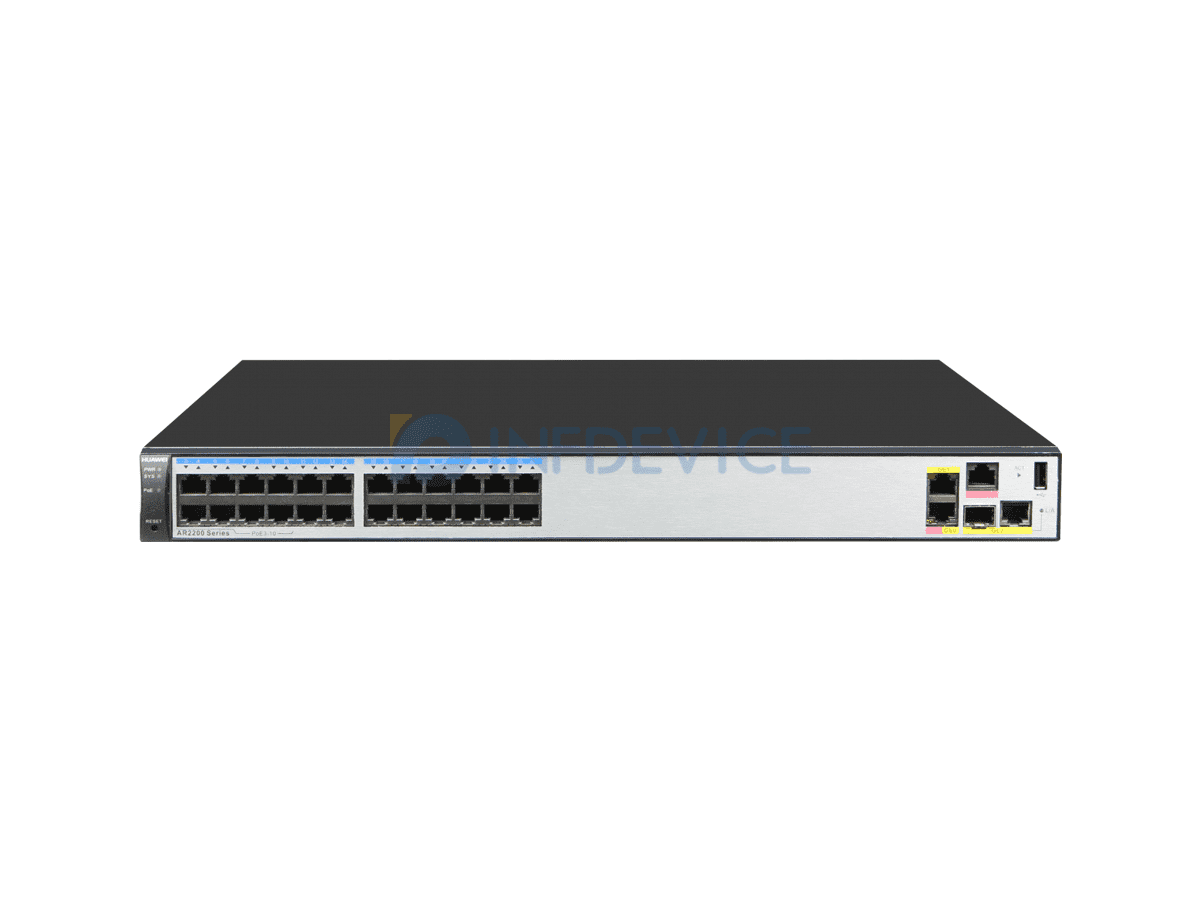

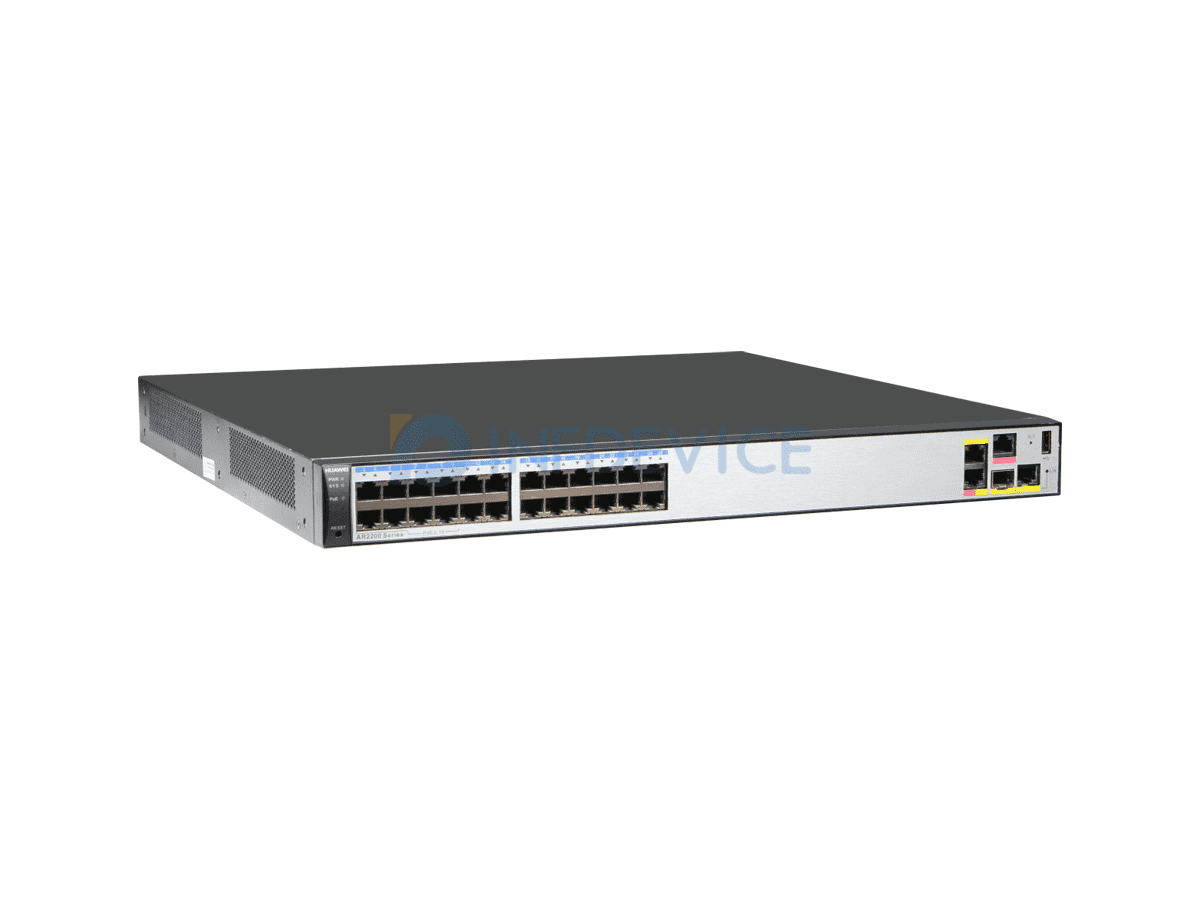

Huawei AR2204-27GE-P,3GE WAN(1GE Combo),24 GE(8 POE),1 USB,4 SIC,60W AC POWER(1+1)

List Price:

US$ 810.00

Price:

US$605.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

PoE BGP OSPF

Add to Cart

Specification

AR2204-27GE-P Specification
WAN Speed with Services***	200 Mbit/s
Firewall Performance (large packets)	1.2 Gbit/s
Device Switching Capacity	30 Gbit/s
Number of recommended users	150
Fixed WAN Ports	3 x GE (1 x combo port)
Fixed LAN Ports	24 x GE
SIC Slots	4
WSIC Slots (default/max)**	0
XSIC Slots (default/max)**	0
USB 2.0 Ports	1
Mini-USB Ports	-
Console Port	1
Memory	512 MB
Flash (default/max)**	512 MB
Maximum Power	60W
Redundant Power Supply	-
AC Power	100V to 240V
Frequency	50 Hz/60 Hz
DC Power	-
Dimensions (H x W x D)	44.5 mm x 442 mm x 420 mm
Weight	4.95 kg (without power module and interface card)
Ambient Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Basic Features	DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and Subinterface management
3G	3G Interface card (WCDMA)
LTE	LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
WLAN (AC)	AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
IPv4 Unicast Routing	Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS	LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE聽FRR
VPN	IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
QoS	DiffServ mode, MPLS QoS, priority mapping, traffic policing with Committed Access Rate (CAR), traffic shaping, congestion avoidance (based on IP precedent LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR (interface/DSCP-based WRED), congestion management (LAN interface: SP, WRR, SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, FR QoS, Smart Application Control (SAC), and Hard QoS (SRU80 Main Boards support)
Security	ACL, firewall, 802.1x authentication, MAC address authentication, Web Authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, and IP source tracing
Management and Maintenance	Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

Q&A

What accessories are available for the Huawei AR2204-27GE-P?

Accessories for the Huawei AR2204-27GE-P include additional SIC modules, PoE injectors, and mounting brackets for rack installation.

How does the Huawei AR2204-27GE-P compare to other similar products?

The Huawei AR2204-27GE-P offers a balance of cost and functionality with its high port density and PoE support compared to similar models in its category.

Can the Huawei AR2204-27GE-P be managed remotely?

Yes, the Huawei AR2204-27GE-P supports remote management via web interface and command-line interface, providing flexibility in network administration.
