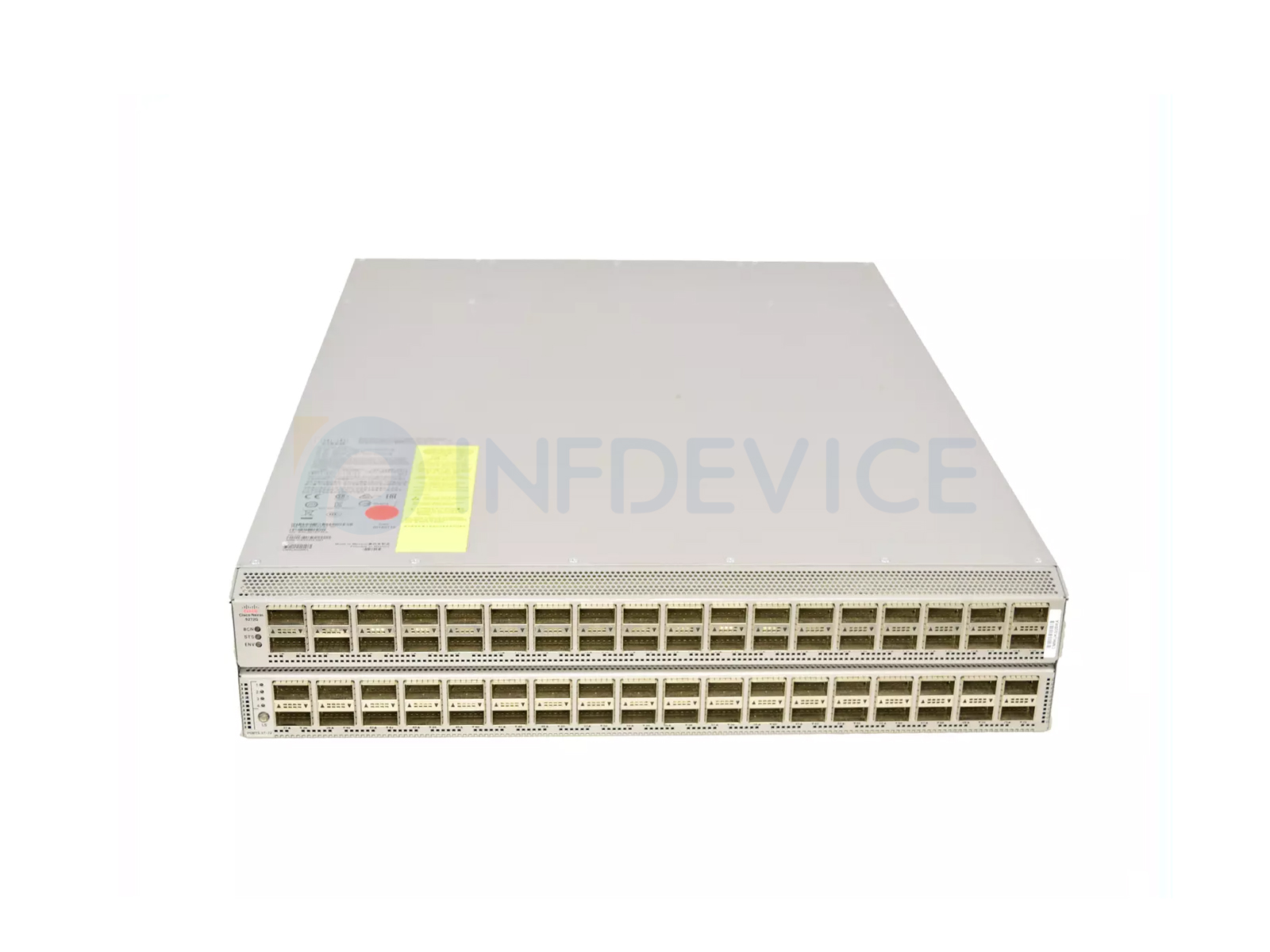

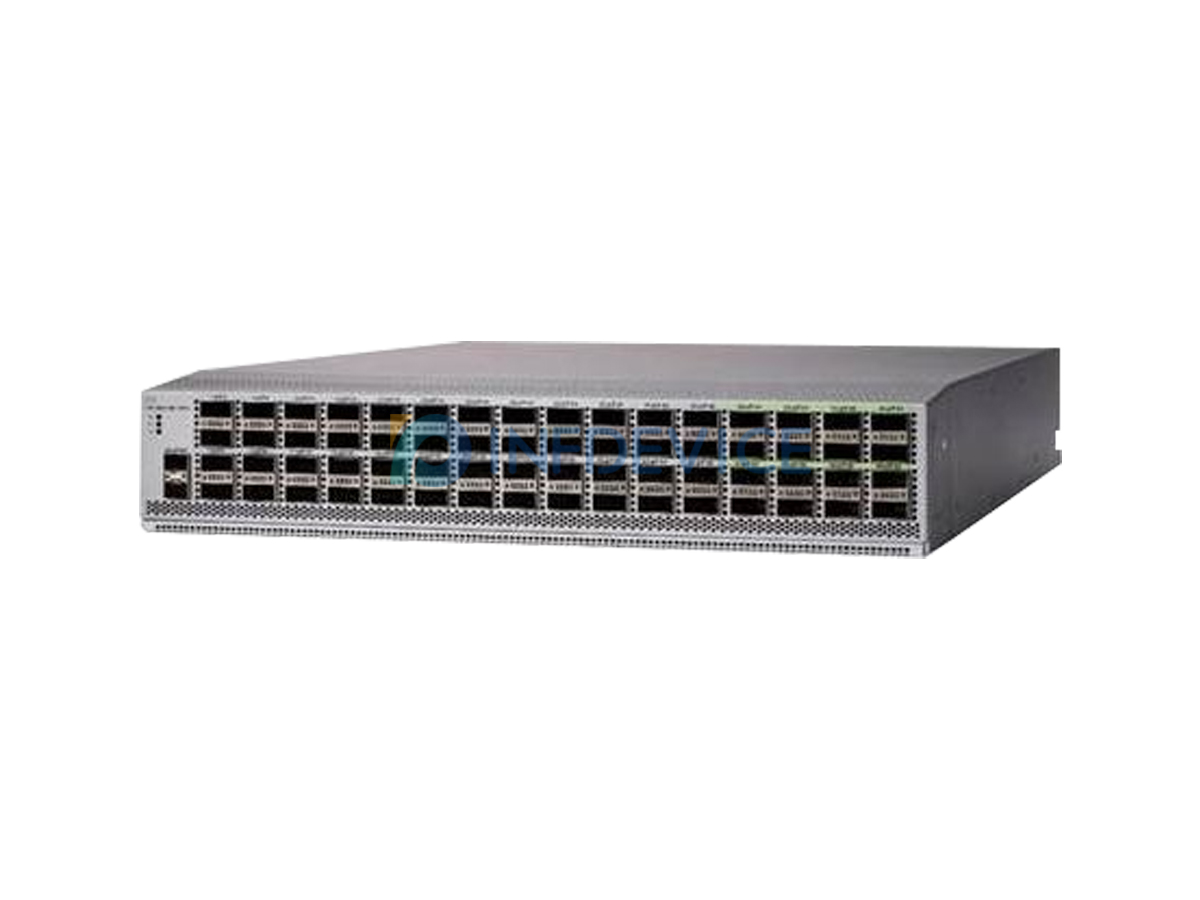

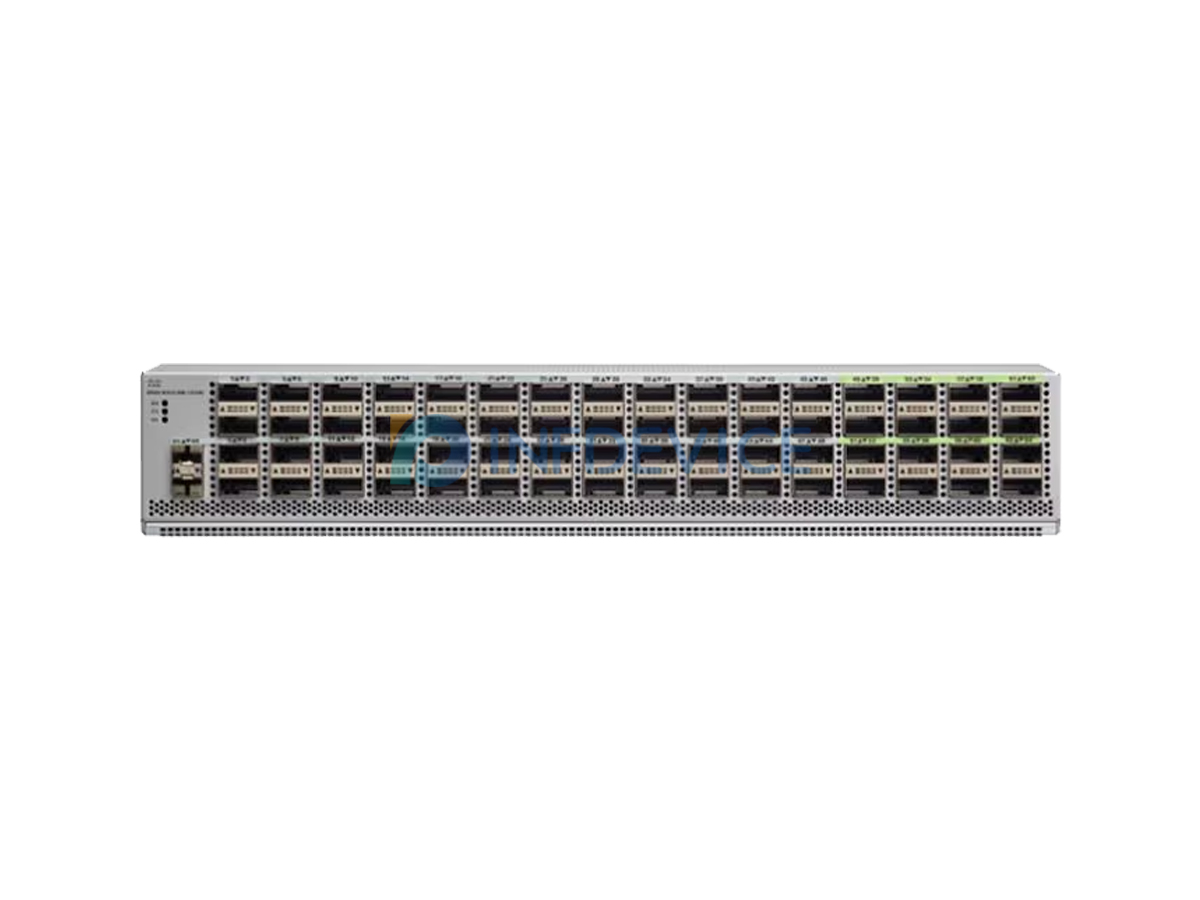

N9K-C9364C

N9K-C9364C Specification

Physical

●  64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports

●  1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)

●  Hot-swappable, dual fan trays with redundant fans

●  System memory: 32GB

●  SSD: 256GB

●  USB: 1 port

●  RS-232 serial console ports: 1

●  Management ports:
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)

●  Broadwell-DE CPU: 4 cores

Power and Cooling

●  Power: 1200W AC, 930W DC or 1200W HVAC/HVDC

●  Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal)

*Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W; PSU redundancy is not supported when used in 100-120V

●  Frequency: 50 to 60 Hz (AC)

●  Efficiency: 90% or greater (20 to 100% load)

●  RoHS compliance: Yes

●  Hot swappable: Yes

●  Port-side intake or port-side exhale options

●  Typical power: 429W (AC)

●  Maximum power: 1245W (AC)

Environmental

●  Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)

●  Weight: 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Nonoperating (storage) temperature: -40 to 158°F
(-40 to 70°C)

●  Humidity: 5 to 85% (noncondensing)

●  Altitude: 0 to 13,123 ft (0 to 4000m)

Acoustics

●  Fan speed at 40%: 76.7 dBA

●  Fan speed at 70%: 88.7 dBA

●  Fan speed at 100%: 97.4 dBA

MTBF

●  257,860 hours

Regulatory compliance

Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC

Safety

●  UL 60950-1 Second Edition

●  CAN/CSA-C22.2 No. 60950-1 Second Edition

●  EN 60950-1 Second Edition

●  IEC 60950-1 Second Edition

●  AS/NZS 60950-1

●  GB4943

EMC: Emissions

●  47CFR Part 15 (CFR 47) Class A

●  AS/NZS CISPR22 Class A

●  CISPR22 Class A

●  EN55022 Class A

●  ICES003 Class A

●  VCCI Class A

●  EN61000-3-2

●  EN61000-3-3

●  KN22 Class A

●  CNS13438 Class A

EMC: Immunity

●  EN55024

●  CISPR24

●  EN300386

●  KN 61000-4 series

RoHS

The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead
press-fit connectors
