N9K-C93180YC-FX

N9K-C93180YC-FX Specification

Hardware performance and scalability

Ports

48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

Downlink supported speeds

1/10/25-Gbps Ethernet

16/32-Gbps Fibre Channel

CPU

6 cores

System memory

Up to 32 GB

SSD drive

128 GB

System buffer

40 MB

Management ports

1 RJ-45 port

L1 and L2 ports are unused

USB ports

1

RS-232 serial ports

1

Power supplies (up to 2)

500W AC, 930W DC, or 1200W HVAC/HVDC

Typical power (AC/DC)

260W

Maximum power (AC/DC)*

425W

Input voltage (AC)

100 to 240V

Input voltage
(High-Voltage AC [HVAC])

200 to 277V

Input voltage (DC)

–48 to –60V

Input voltage
(High-Voltage DC [HVDC])

–240 to –380V

Frequency (AC)

50 to 60 Hz

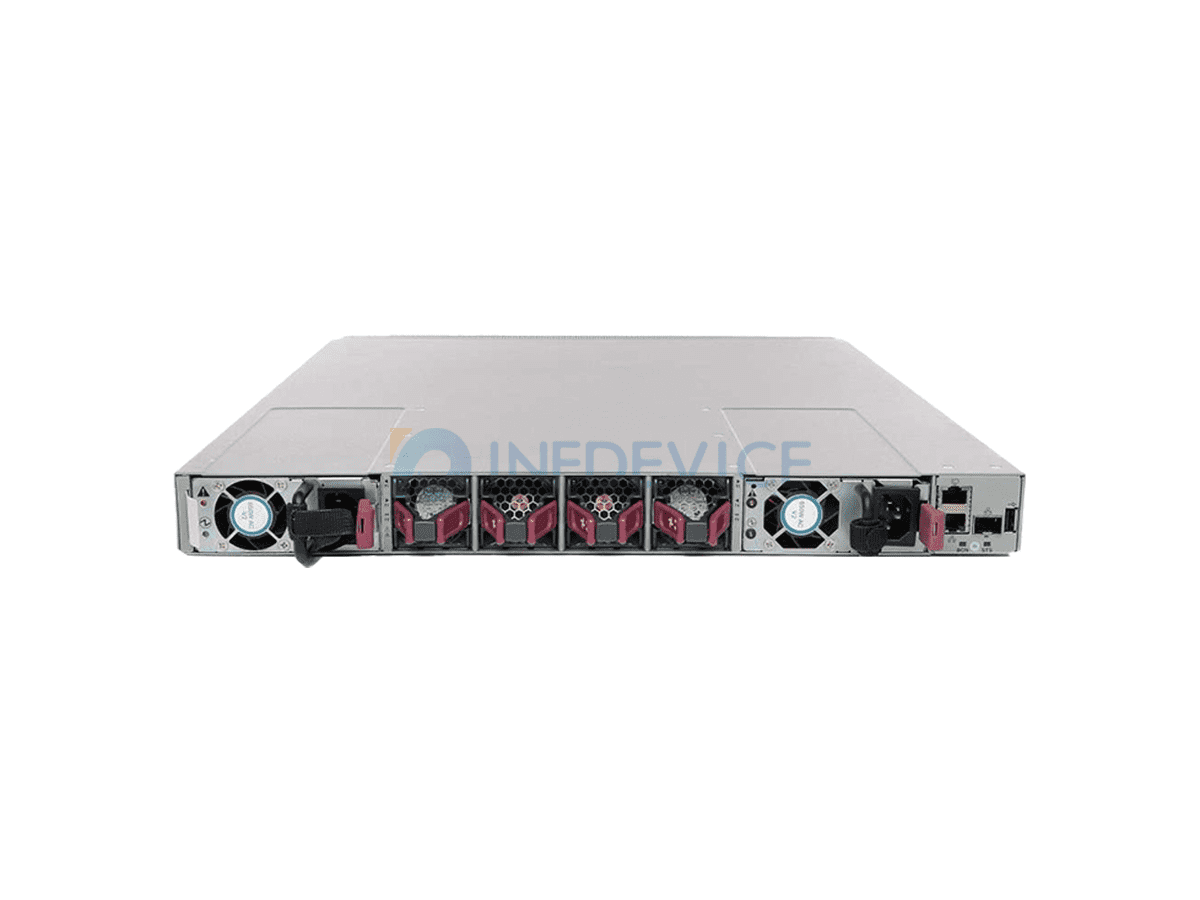

Fans

4

Airflow

Port-side intake and exhaust

Physical dimensions
(H x W x D)

1.72 x 17.3 x 22.5 in.
(4.4 x 43.9 x 57.1 cm)

Acoustics

57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed

RoHS compliance

Yes

MTBF

238,470 hours

Environmental properties

Operating temperature

32 to 104°F (0 to 40°C)

Nonoperating (storage) temperature

–40 to 158°F (–40 to 70°C)

Humidity

5 to 95% (noncondensing)

Altitude

0 to 13,123 ft (0 to 4000m)
