ISR4331/K9

Model:

Cisco 4000 Router ISR4331 (3GE, 2NIM, 1SM, 4G FLASH)

Detail:

System throughput 100-300Mbps, 3 WAN/LAN ports, 2 SFP ports, multi-Core CPU, 1 service module slot.

Price:

US$1,139.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

ISR4331/K9 Overview

The Cisco 4331 Integrated Services Router is designed for high-performance networking, delivering an aggregate throughput of 100 Mbps to 300 Mbps. It features a versatile Enhanced service-module (SM-X) slot that accommodates both single- and double-wide service modules, providing flexibility for various deployment scenarios.

Quick Specs:

Throughput: 100 Mbps to 300 Mbps aggregate
Service Module Slot: 1 Enhanced service-module (SM-X) slot (supports single- and double-wide modules)

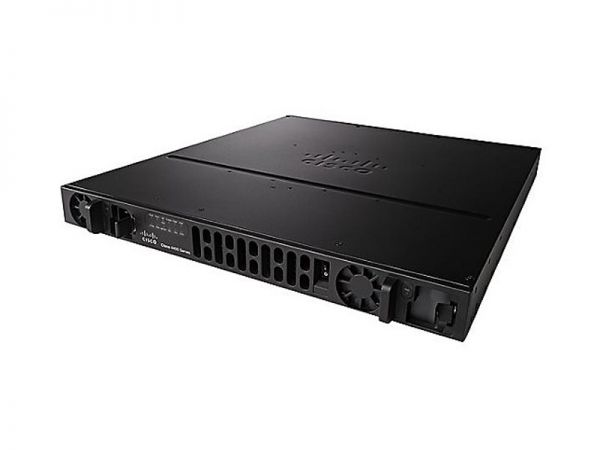

Appearance: See Figure 1 for a visual representation of the Cisco ISR4331/K9.

This router offers a powerful and adaptable solution for businesses seeking reliable and scalable network connectivity.

Table 1 shows the Quick Specs.

Specification	Description
Product Code	Cisco ISR4331/K9
Memory (Installed/Max)	4 GB DDR3 SDRAM (Default/16 GB Supported)
Flash Memory (Installed/Max)	4 GB (Default/16 GB Supported)
Aggregate Throughput	100 Mbps to 300 Mbps
Ports (Total 10/100/1000)	3
RJ-45 Ports	2
SFP Ports	2
Service-module (SM-X) Slot	1 Enhanced
Network Interface Module (NIM) Slots	2
Onboard ISC Slot	1
Power Supply Options	Internal AC and PoE
Rack Height	1 RU
Dimensions (H x W x D)	1.8 x 17.2 x 17.2 inches (44.45 x 438.15 x 438.15 mm)
Package Weight	12.96 Kg

Product Details

Figure 2 shows the front panel of Cisco ISR4331/K9.

Note:

Port/Feature	Description
①	USB Type B mini port
②	Serial console port
③	USB Type A port
④	AUX Port
⑤	Management port
⑥	LEDs (eight indicators included)
⑦	AC Power
⑧	Power switch

The LEDs include eight indicators.

Figure 3 shows the back panel of Cisco ISR4331/K9.

Component	Description
RJ45 Ports (①)	Four ports are available, including one combo port that shares with an RJ45 and an SFP port, meaning they cannot be used simultaneously.
SFP Ports (②)	Two SFP ports are present, one of which can be in a combo configuration with an RJ45 port.
NIM Slots (③)	These slots support the installation of one double-wide or two single-wide modules.
SM-X Slot (④)	One Enhanced service-module (SM-X) slot is available, which can be converted into a Network Interface Module (NIM) slot using an optional carrier card.

And for the modules, cards, licenses, and accessories:

Category	Description
Modules & Cards	The Cisco ISR4331/K9 supports new modules and cards such as NIM and ISC slots.
Licenses	The router can be upgraded through various licenses to enhance its capabilities.

Specification

ISR4331/K9 Specifications
Product Model	Cisco ISR4331/K9
System Throughput	100Mbps - 300Mbps
WAN/LAN Ports	3
SFP Ports	2
Service Module Slots	1
Processor	Multi-Core CPU
Flash Memory Installed	4 GB
Max Flash Memory Supported	16 GB
Memory Technology	DDR3 SDRAM
RAM Installed	4 GB
Product Type	Router
Frequency	50/60 hertz
Power Provided	250 watt
Rack Mounting Kit	Included
Dimensions(H X W X D>	1.8 x 17.2 x17.2 inch

Q&A

What are the key features of the ISR4331/K9?

The ISR4331/K9 features a high system throughput, multiple WAN/LAN ports, SFP ports for flexible connectivity, a powerful CPU, and support for various services.

What is the recommended application scenario for the ISR4331/K9?

The ISR4331/K9 is suitable for small to medium-sized enterprises requiring reliable and secure network connectivity with advanced services.

Are there any alternative products to the ISR4331/K9?

Yes, Cisco offers a range of ISR4000 series routers with different specifications and features to cater to various network requirements. Please consult our sales team for the most suitable alternative.

How do I install the ISR4331/K9?

The ISR4331/K9 can be easily installed following the provided user manual. It is recommended to consult a certified technician for professional assistance if needed.
