ISR4451-X/K9

Model:

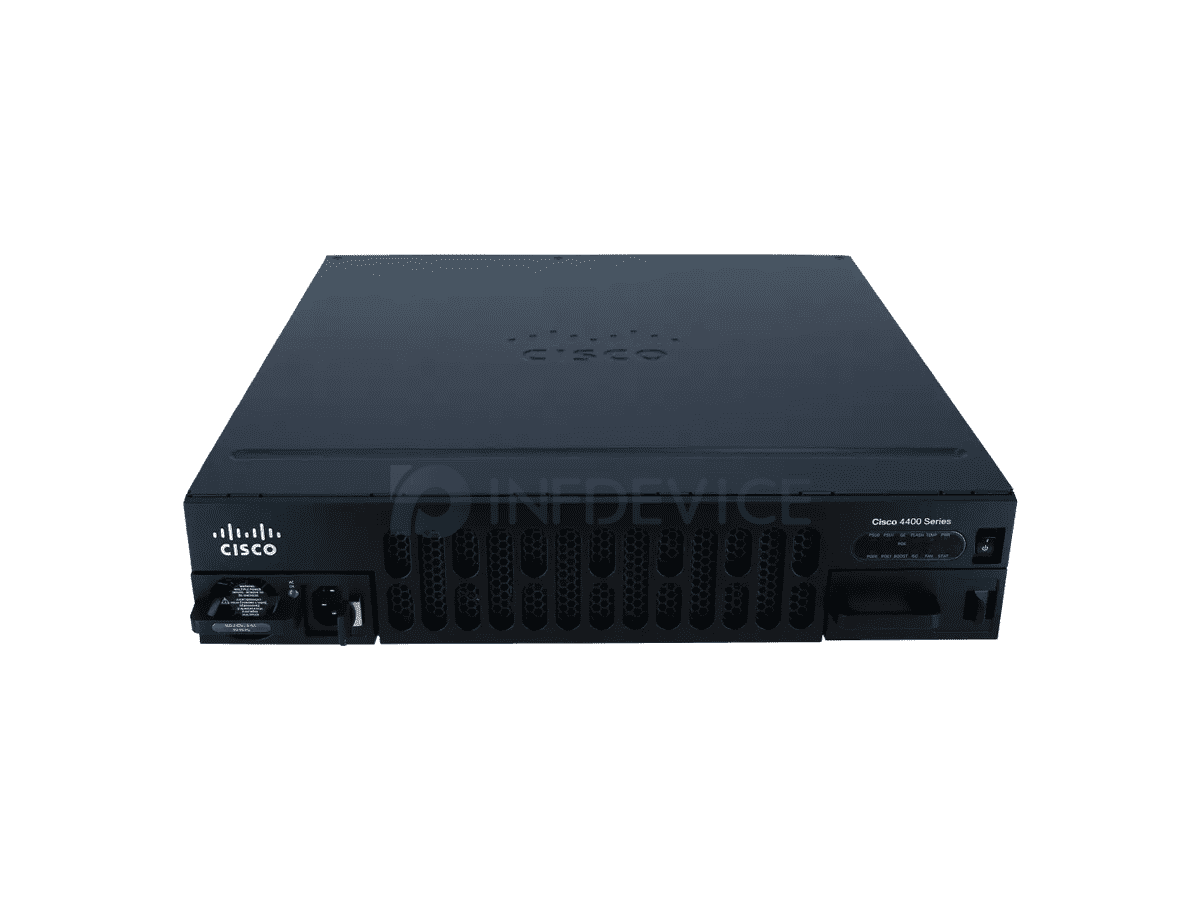

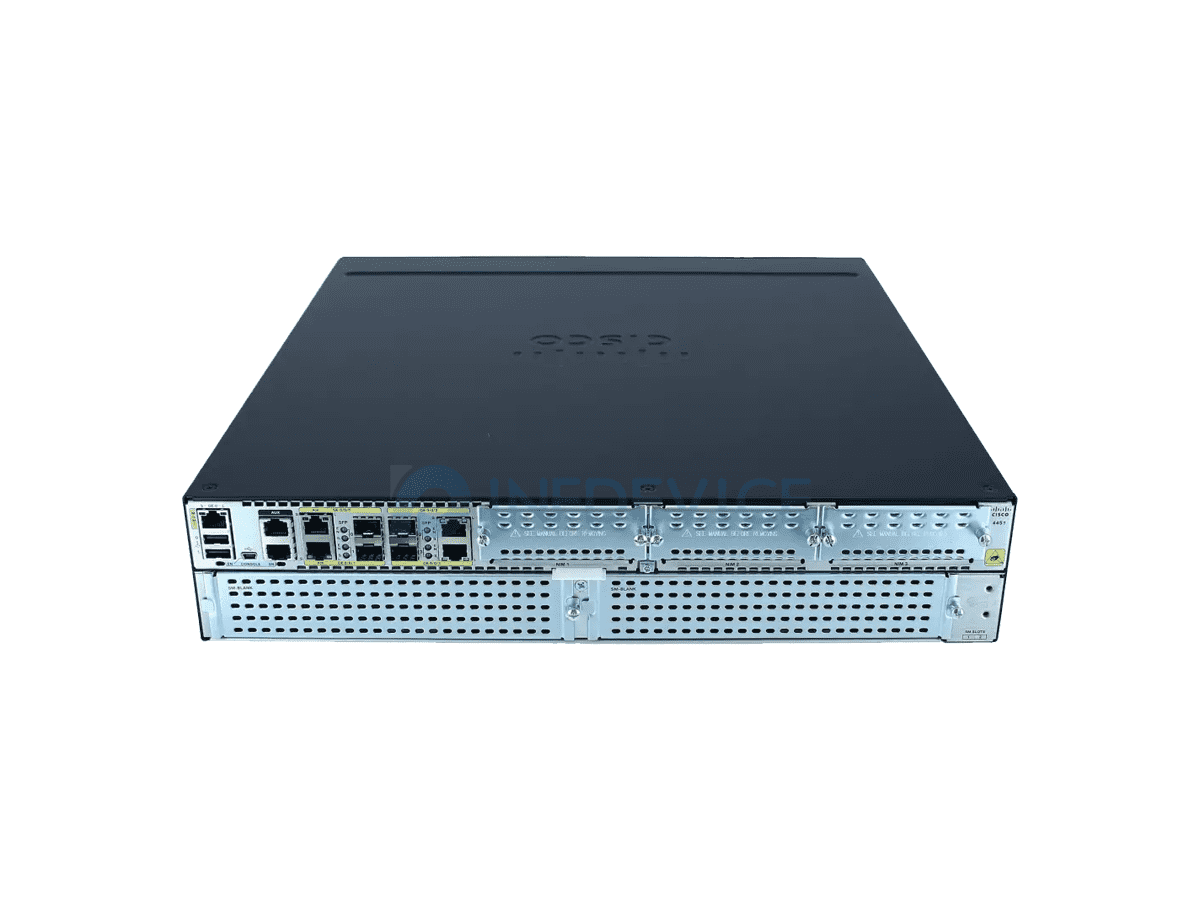

Cisco ISR 4451 Router (4GE, 3NIM, 2SM, 8G FLASH)

Detail:

System throughput 1-2Gbps, 4 WAN/LAN ports, 4 SFP ports, 10 Core CPU, separate control and service CPUs.

Price:

US$7,655.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

Specification

Cisco ISR4451-X/K9 Specification
Aggregate Throughput	1 Gbps to 2Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module slots	2
Doublewide service-module slots	1 (assumes no singlewide SM-X modules installed)
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	NA
Default memory DDR3 ECC DRAM (data plane)	2 GB
Maximum memory DDR3 ECC DRAM (data plane)	2 GB
Default memory DDR3 ECC DRAM (control/services plane)	4 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	16 GB
Default flash memory	8 GB
Maximum flash memory	32 GB
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC and PoE
Redundant power supply	Internal: AC, DC and PoE
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
AC input surge current	<50 A
Typical power (no modules) (watts)	158
Maximum power with AC power supply (watts)	450 (no PoE)
Maximum power with PoE power supply (platform only) (watts)	1000 with PoE redundant 1450 with PoE boost no redundancy
Maximum endpoint PoE power available from PoE power supply (watts)	500 W with optional redundancy
Maximum endpoint PoE power capacity with PoE boost (watts)	950 W no redundancy

Q&A

Where do I position the Cisco 4451-X in comparison to the Cisco 3900 Series ISRs and the ASR 1000 Series Aggregation Services Routers?

The Cisco 4451-X is positioned for high-end enterprise branch offices or enterprise headend where there is a performance requirement of 1 to 2 Gbps with services. Performance-wise the Cisco 4451-X is positioned between the 3945E ISR and the ASR 1001.

How many dual inline memory modules (DIMMs) does the Cisco ISR4451-X/K9 have?

The Cisco ISR4451-X/K9 have three DIMM slots. Two slots are used for control-plane and one slot for data-plane memory.

What type of backplane is used between components in the Cisco ISR4451-X/K9?

The 4000 Series uses multigigabit fabric (MGF) for Layer 2 connectivity between the modules. On the 4451-X, the MGF can provide either 2 Gbps to all NIM slots or up to 10 Gbps to all SM-X slots. The MGF is completely nonblocking and can forward in excess of 50 Gbps.

Is the Cisco ISR4451-X/K9 power supplY field-replaceable units (FRUs)?

Yes. The power supplY can be replaced in the field.

Support FAQ

Warranty terms

We promise that our products are original and genuine only. Brand-new products will be brand new and sealed to ensure no malfunctions, and second-hand products will undergo strict testing before shipment.

We offer a 1-year warranty for brand-new products and a 90-day warranty for second-hand products. During the warranty period, if the equipment you purchase has any operational defects, we will replace it for you (the warranty does not cover faults caused by human damage and improper use).

Once the product malfunctions, please notify us as soon as possible, and we will appreciate your detailed description or photos.

The warranty period is calculated from the date of receipt of the goods. For any issues or inquiries regarding your purchase, please feel free to contact us via WhatsApp (+86 152 7186 6615) or Skype/Email: sales@infdevice.com
