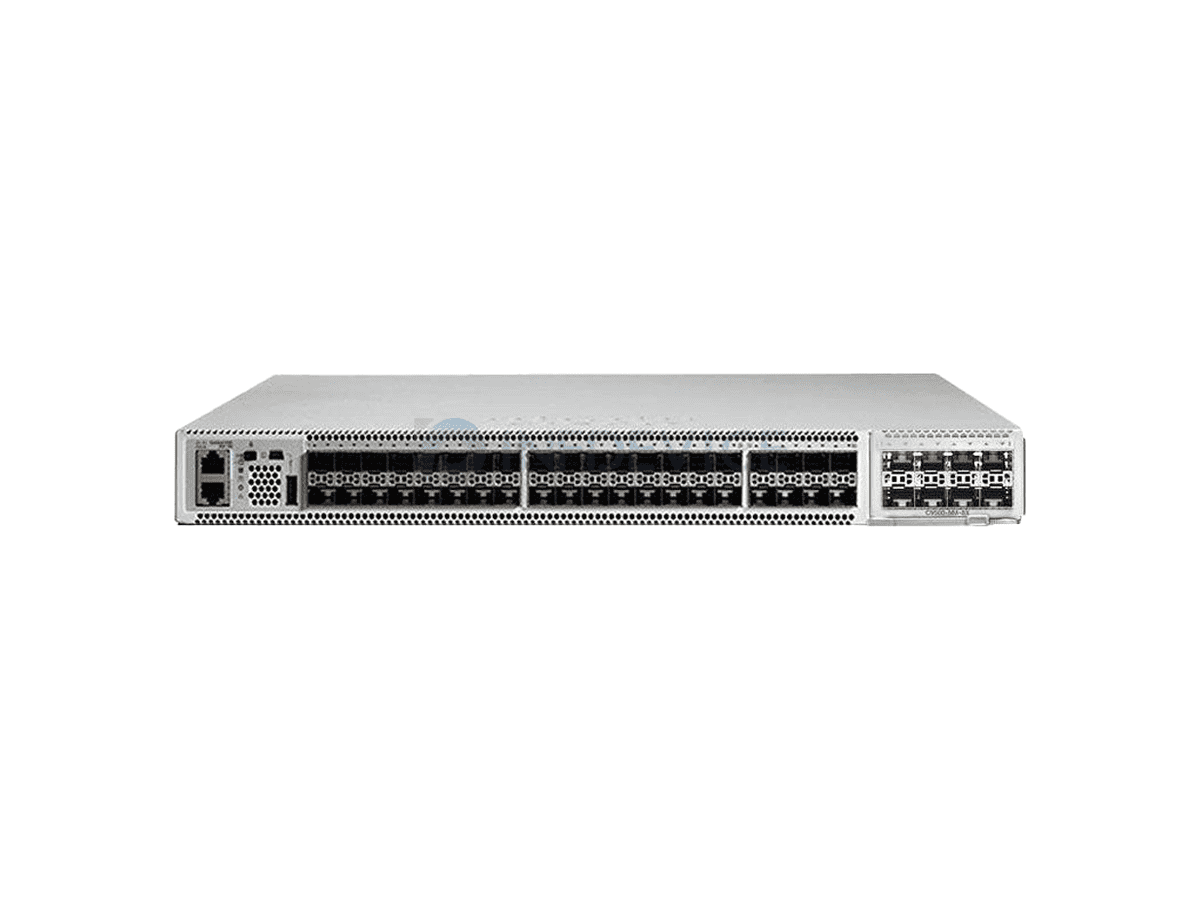

C9500-40X-10A

C9500-40X-10A Specification

Product Code

C9500-40X-10A

Product Description

9500 10Y DNA Advantage, HW

Dimensions (H x W x D)

1.73 x 17.5 x 21.52 in

Rack units (RU)

1 RU

Minimum software requirement

Open Cisco IOS XE Software Release 16.6.1a

ASIC

UADP 2.0

Switching capacity

Up to 960 Gbps

Forwarding rate

Up to 720 Mpps

Total number of MAC addresses

Up to 64,000

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 64,000 indirect

Up to 80,000 host

Total number of IPv6 routes

Up to 32,000 indirect

Up to 40,000 host

Total number of IPv4 Multicast routes

Up to 32,000

Total number of IPv6 Multicast routes

Up to 16,000

QoS ACL scale

Up to 18000

Security ACL scale

Up to 18000

FNF entries

Up to 512,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9198 bytes

Safety certifications

C9500-12Q, C9500-24Q, C9500-40X, C9500-16X

•UL 60950-1

•CAN/CSA-C22.2 No. 60950-1

•EN 60950-1

•IEC 60950-1

•AS/NZS 60950-1

•GB4943

C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C

•IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences

•AS/NZS 60950.1.2011

•CAN/CSA-C22.2 No. 60950-1-07

•GB 4943-95

•EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences

•NOM-019-SCFI-1998

•UL 60950-1, Second Edition

EMI and EMC compliance

•47 CFR Part 15 Class A

•CNS13438: 2006 Class A

•EN 300 386 V1.6.1

•EN61000-3-2: 2014

•EN61000-3-3: 2013

•ICES-003 Issue 6: 2016 Class A

•KN 32: 2015 Class A

•TCVN 7189: 2009 Class A

•EN 55032:2012/ AC:2013 Class A

•EN 55032:2015 Class A

•CISPR 32 Edition 2 Class A

•V-2/2015.04 Class A

•V-3/2015.04 Class A

•CISPR24: 2010 + A1: 2015

•EN 300 386 V1.6.1

•EN55024: 2010 + A1: 2015

•KN35: 2015

•TCVN 7317: 2003

Input voltage

90 to 264 VAC

Operating temperature

32°to 104°F (0°to 40°C)

Storage temperature

-4°to 149°F (-20°to 65°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

NEBS criteria levels

NEBS:

•Normal operating temperature range: 5C to 40C (up to 1829 meters (6000 ft)

•Short term operating temperature range: -5C to 55C

•Normal Relative Humidity range: 5% to 85%

•Short term Relative Humidity range: 5% to 93%

•Operating Altitude: up to 1829 m (6000 ft) at 55C

•ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.

•SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue

Altitude

Operation up to 6000 feet at 55°C and 13,000 feet at 45°C

MTBF (hours)

277,310
