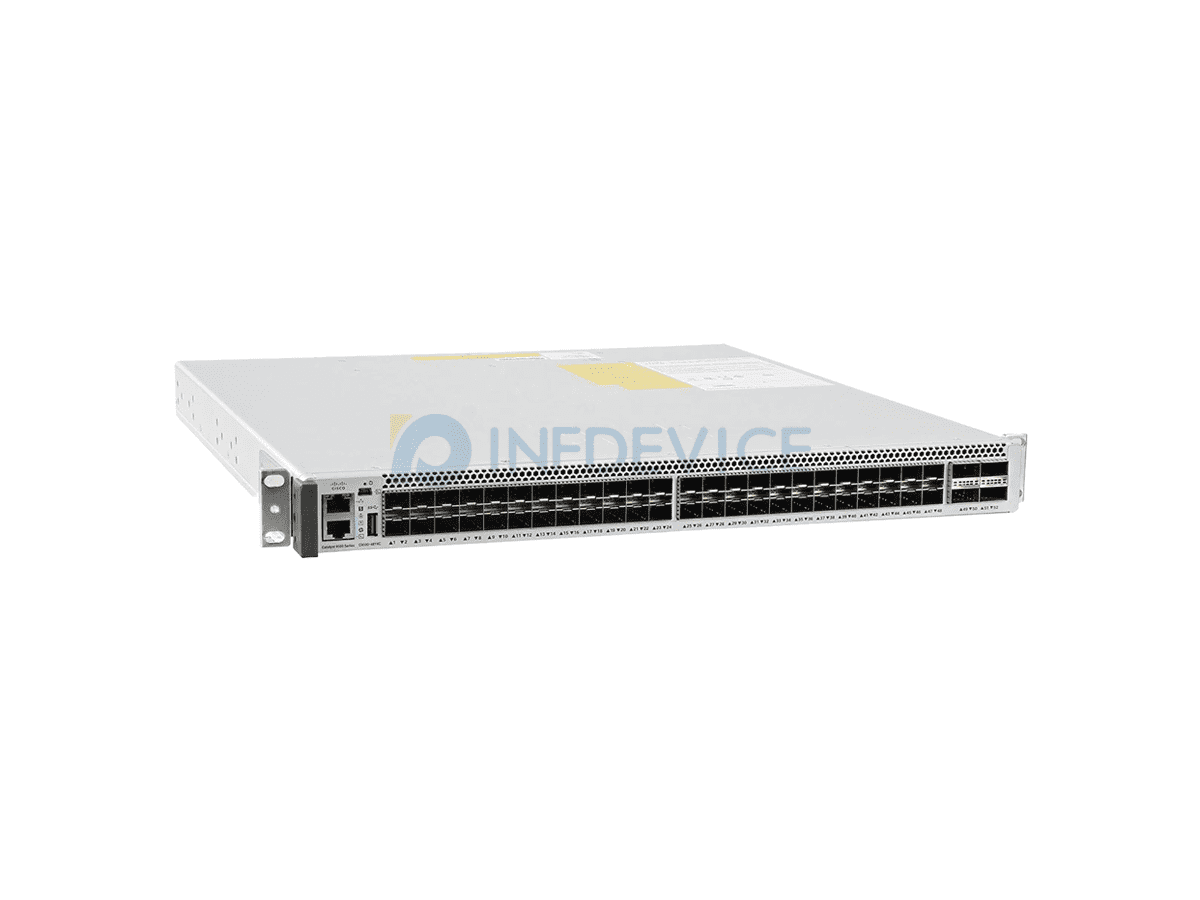

C9500-32QC-E

C9500-32QC-E Specification

Performance specifications

Switching capacity

Up to 3.2 Tbps

Forwarding rate

Up to 1 Bpps

Total number of MAC addresses

Up to 82,000

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 212,000 indirect + direct

Up to 90,000 host/ARP

Total number of IPv6 routes

Up to 212,000 indirect + direct

Up to 90,000 host

QoS ACL scale

Up to 16000

Security ACL scale

Up to 27000

FNF entries

Up to 98,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9216 bytes

Power supply specifications

Power Supply Selection

C9K-PWR-650WAC-R or C9K-PWR-930WDC-R

Dimensions, physical specifications, weight, and MTBF

Dimensions (H x W x D)

1.73 x 17.5 x 21.2 in

Rack units (RU)

1 RU

Input voltage

90 to 264 VAC

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 149°F (-20° to 65°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude

Operation up to 13,000 feet at 40°C

MTBF (hours)

307,200
