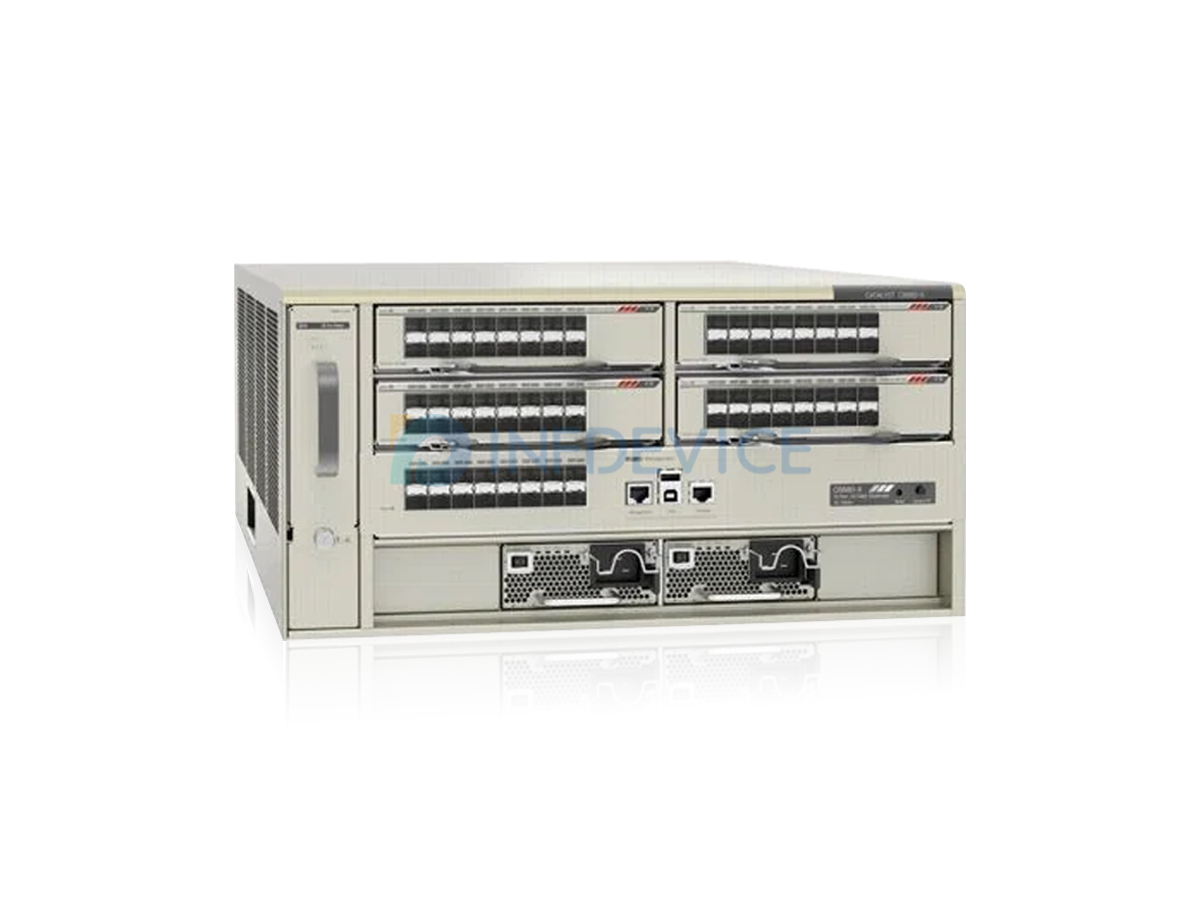

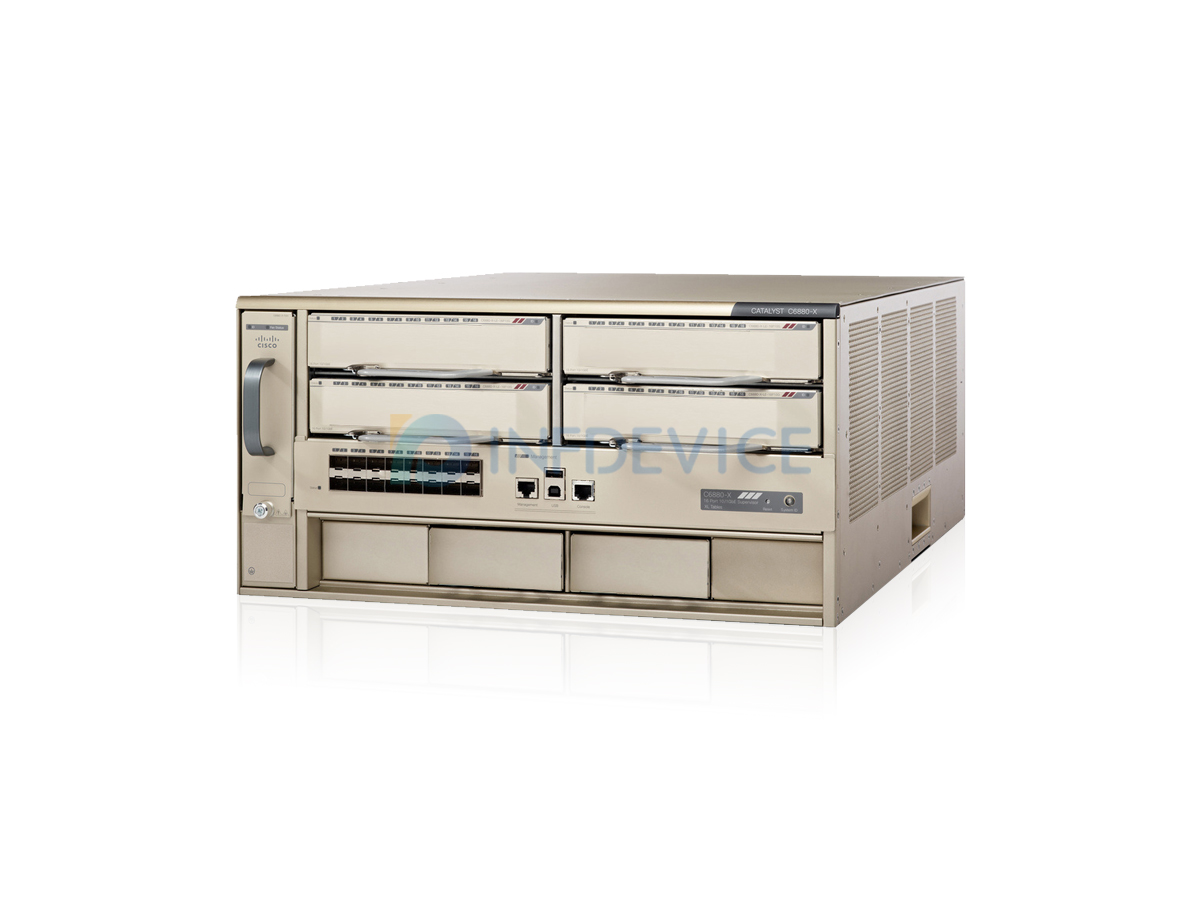

C6880-X

C6880-X Specification

QoS Features and Scalability

Feature

C6880-X

Layer-3 classification and marking access control entries (ACEs)

256K shared for QoS/Security

Aggregate traffic rate-limiting policers

16,348

Flow-based rate-limiting method; number of rates

Per source address, destination address, or full flow; 64 rates

Layer 2 rate limiters

20 ingress/6 egress

MAC ACLs featuring per-port/per VLAN granularity

Yes

Distributed policers

Yes

Shared uFlow policers

Yes

Egress uFlow policers

Yes

Packet or byte policers

Yes

Per port per VLAN

Yes

COS and DSCP based Queue mapping

Yes

Deficit Weighted Round Robin Scheduler (DWRR) and Weighted Random Early Detection Scheduler (WRED)

Yes

Receive and Transmit Queues

Default: 1p7q4t

Configurable: 2p6q4t

Security Features and Scalability

Port security

Yes

IEEE 802.1x and 802.1x extensions

Yes

VLAN and router ACLs and port ACLs

Yes

1:1 mask ratio to ACE values

Yes

Security ACL entries

256K shared for QoS/Security

CPU rate limiters (DoS protection)

57

uRPF check (IPv4/IPv6)

Up to 16

Number of interfaces with unique ACL

16k

RPF interfaces

16

Private VLANs

Yes

MAC ACLs on IP

Yes

Layer 2 and Layer 3 Cisco TrustSec

(Security Group Tagging & Security Group Access Control List)

Yes

IEEE 802.1ae (MACsec) Layer 2 encryption in hardware

Yes

CPU HW rate limiters by PPS or BPS

Yes

CoPP for multicast

L2 and L3 support

CoPP for exceptions (MTU, TTL)

Yes

CoPP exceptions NetFlow support

Yes

ACL labels

16K

Port ACL

8K

ACL dry run

Yes

Hitless ACL changes

Yes

MPLS and Virtualization Features

VSS*

Yes

Label imposition/disposition (MPLS-PE), swapping (MPLS‑P)

Yes

Label Distribution Protocol (LDP)

Yes

MPLS VPN

Yes

VRF Lite

Yes

EVN

Yes

QoS mechanisms using experimental (EXP) bits

Yes

MPLS-RSVP-TE

Yes

MPLS differentiated services (diffserv)-aware traffic engineering (MPLS-DS-TE)

Yes

MPLS traceroute

Yes

EoMPLS

Yes

EoMPLS tunnels

16k

IPv4 and IPv6 in IPv6 tunneling

Yes

IPv6 in IPv4 tunnelling (Intra-Site Automatic Tunnel Addressing Protocol [ISATAP], 6to4, GRE

Yes

QoS support for uniform, short pipe and pipe mode tunnel

Yes

Native VPLS in HW

Yes

Native L2 over multipoint GRE

Yes

VRF-aware operational contexts

Yes

VPN NetFlow support

Yes

VPN aware NAT

Yes

VRF-lite scalability

VLAN reuse per subinterface

Per VPN interface statistics

Yes

Netflow and Multicast Features

Netflow support in hardware

Yes

Flexible Netflow

Yes

Sampled Netflow

Yes

Ingress/Egress Netflow

Yes

Ingress and Egress replication in hardware

Yes

IGMPv3 snooping in hardware

Yes

IPv6 MLDv2 snooping in hardware

Yes

PIM registers in hardware

Yes

Label Switched Multicast (LSM)

Yes

Base System Scalability

MAC entries

128K

Routes

2048K (IPv4)

1024K (IPv6)

ACL entries

256K shared for QoS/Security

NetFlow entries

1024K (per module slot)

Up to 5M per system

Multicast routes

128K (IPv4)

128K (IPv6)

IPv4 routing

In hardware

Up to 300 Mpps**

IPv6 routing

In hardware

Up to 150 Mpps**

L2 bridging

In hardware

Up to 300 Mpps**

Jumbo frame support

Up to 9216 bytes

(For bridged and routed pkts.)

VLAN

4K

Bridge domains

16K

MPLS

In hardware (up to 8192 VRFs at 300 Mpps**)

Logical interfaces

128K

EtherChannel hash

8 bits

VPLS

In hardware (up to 150 Mpps**)

GRE

In hardware (up to 150 Mpps**)

NAT

Hardware assisted

Onboard memory

4GB

Ingress buffers

1.25MB per 10G port in 2:1 mode

2.5MB per 10G port in 1:1 mode

(10MB per Port ASIC)

Egress buffers

24MB per 10G port in 2:1 mode

48MB per 10G port in 1:1 mode

(192MB per MUX FPGA)

Software Packaging

Software License

●  IP Services

●  Advanced Enterprise Services

Software compatibility

15.1(2)SY1 and later releases*
