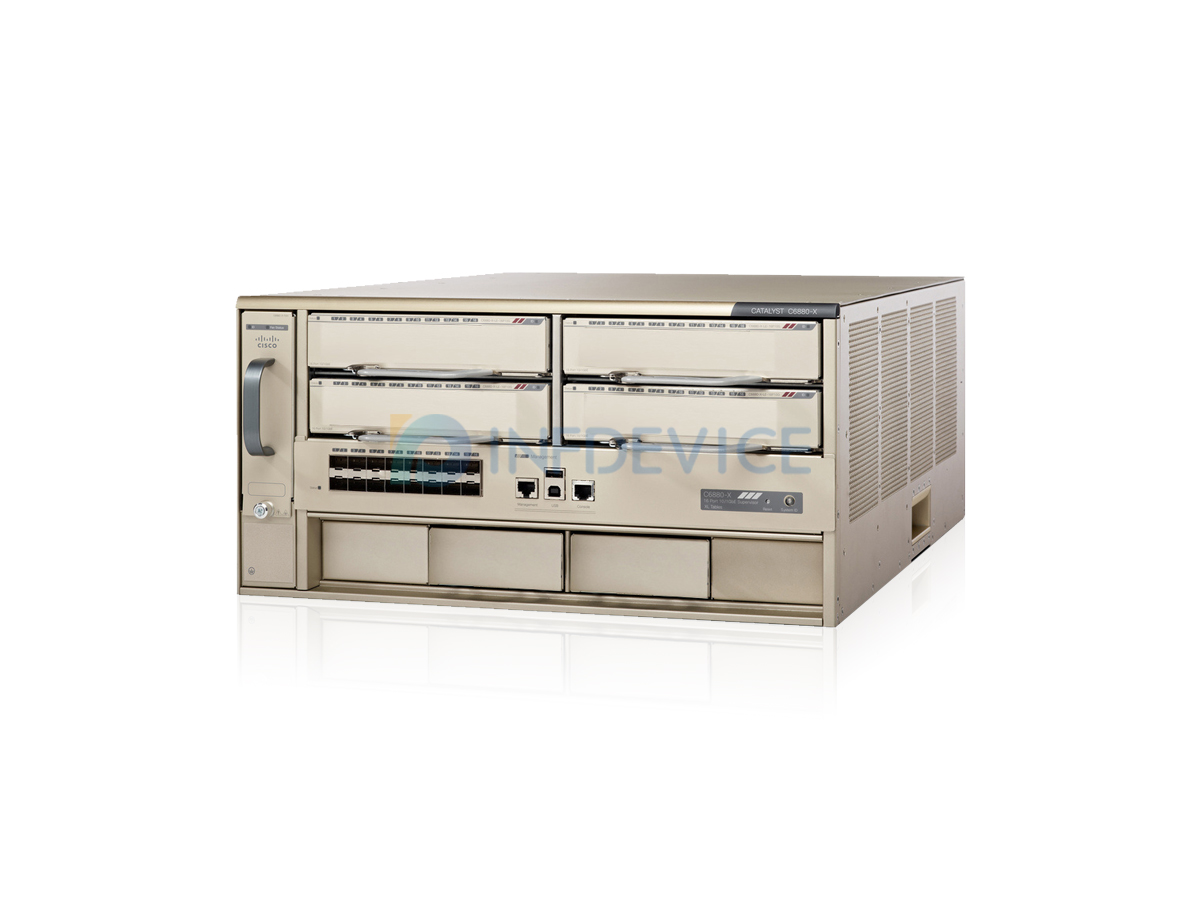

C6880-X-LE

C6880-X Specification

Number of port card slots

4

Switching Capacity

Up to 2Tbps

Performance

The chassis is capable of supporting up to 220 Gbps per port card slot.

The 16 port 10G port cards and the base module will support 80 Gbps.

Maximum Port Density Per Chassis

Up to 80 x 10 Gigabit Ethernet ports

Up to 80x 1 Gigabit Ethernet ports

Maximum Port Density (VSS)

Up to 158x 10 Gigabit Ethernet ports

Up to 158x 1 Gigabit Ethernet ports

Power Supply Compatibility

AC: 3000W, DC: 3000W

Module Compatibility

All modules based on the software release in the system

Reliability and Availability

Online Insertion and Removal (OIR)

OIR supported for redundant power supplies and port cards.

Physical dimensions (H x W x D)

Inches

8.75x 17.35 x 23

Centimeters

22.23 X 44.07 X 58.42

Rack units (RU)

4.85

Weight

Chassis with 2 power supplies and fan tray

64 lbs/29.03 kgs

Chassis with 2 power supplies, fan tray with four port cards

88 lbs/39.92 kgs

Input Voltage

100 to 240 VAC

-48 to -60 VDC

Safety

UL 60950 Second Edition

CAN/CSA-C22.2 No. 60950 Second Edition

EN 60950 Second Edition

IEC 60950 Second Edition

AS/NZS 60950

EMC

FCC Part 15 (CFR 47) Class A

VCCI Class A

EN55022 Class A

CISPR 22 Class A

CE marking

AS/NZS 3548 Class A

ETS300 386

EN55024

EN61000-6-1

EN50082-1

NEBS/ETSI

GR-1089-Core NEBS Level 3

ETS 300 019 Storage Class 1.1

ETS 300 019 Transportation Class 2.3

ETS 300 019 Stationary Use Class 3.1

ATIS Pb free and Energy efficiency

ATIS-0600020.2010 Pb Free circuit packs

ATIS-0600015-2009 General Energy Efficiency Requirements (TEER)

ATIS-0600015.03-2009 Switch and Router Energy Efficiency

ATIS-0600015.01-2009 Server Energy Efficiency

VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER)

Network Management

ETHERLIKE-MIB (RFC 1643)

IP-MIB and IP-FORWARD-MIB for IPv6

IF-MIB (RFC 1573)

Bridge MIB (RFC 1493)

CISCO-STACK-MIB

CISCO-VTP-MIB

CISCO-CDP-MIB

RMON MIB (RFC 1757)

CISCO-PAGP-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-VLAN-BRIDGE-MIB

CISCO-VLAN-MEMBERSHIP-MIB

ENTITY-MIB (RFC 2037)

HC-RMON

RFC1213-MIB (MIB-II)

SMON-MIB

Operating Environment

Operating Temperature

32°F to 104°F (0 to 40°C)

Storage Temperature

-4 to 149°F (-20 to 65°C)

Thermal Transition

0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Relative Humidity

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Operating Altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
