WS-C4948E

Model:

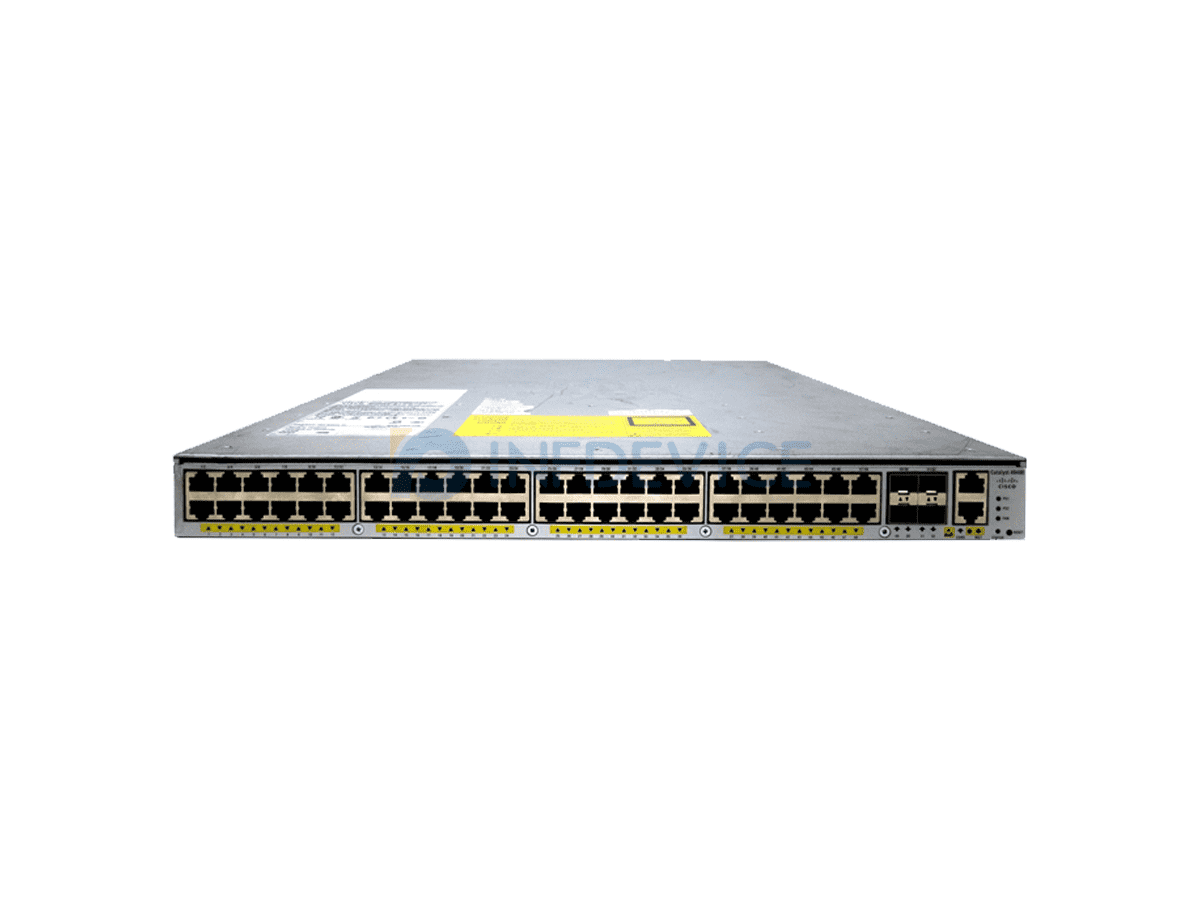

Cisco 4948E Switch WS-C4948E

Detail:

The Cisco 4948E Switch WS-C4948E is a cutting-edge network switch, designed to deliver high-speed connectivity and top-notch performance for your network.

Price:

US$5,199.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

Specification

WS-C4948E Specification
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	167 °F
Header
Compatibility	PC
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Catalyst
Model	4948E
Brand	Cisco
Interface Provided
Qty	48
Type	1000Base-T
Connector Type	RJ-45
Miscellaneous
Compliant Standards	AS/NZ 3548 Class B, CISPR 22 Class A, CSA C22.2 No. 60950-1, EMC, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN50082-1, EN55022 Class A, EN55024, ETSI, FCC CFR21 Part 1040, FCC Part 15 A, ICES-003 Class A, IEC 60825-1, IEC 60950-1, NEBS level 3, RoHS, UL 60950-1, VCCI Class A ITE
Authentication Method	RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Height (Rack Units)	1
Color Category	Gray
Networking
Type	Switch
Form Factor	Rack-mountable
Data Transfer Rate	1000 Mbps
Remote Management Protocol	CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Telnet, TFTP
Compliant Standards	IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Status Indicators	Link OK, Link/activity, Port status, Power, System
Ports Qty	48
Features	Access Control List (ACL) support, Auto-negotiation, Broadcast Storm Control, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Hot swap module replacement, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 switching, MAC address filtering, MLD snooping, Multicast Storm Control, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Time Domain Reflectometry (TDR), Tunneling, VLAN support
Routing Protocol	RIP-1, RIP-2, Static IP routing
MAC Address Table Size	55K entries
Subcategory	Network hubs and switches
Manageable	Yes
Jumbo Frame Support	9216 bytes
Subtype	Gigabit Ethernet
Power Device
Installed Qty	0
Max Supported Qty	2
Power Redundancy	Optional
Type	Internal power supply
Hot-Plug	Hot-plug
Processor
Installed Qty	1
Clock Speed	1 GHz
Dimensions & Weight
Width	17.5 in
Depth	19.4 in
Height	1.7 in
Weight	14.11 lbs
Capacity
Type	Switched virtual interfaces (SVIs)
Value	4000
Performance
Type	Switching capacity
Value	176 Gbps
Ports
Qty	48
Type	10/100/1000
Ports (2nd)
Qty	4
Type	SFP+
RAM
Installed Size	1 GB
Technology	SDRAM

Q&A

How does the Catalyst 4948E switch compare to similar products?

The Catalyst 4948E switch offers superior port density and performance compared to similar switches like the Catalyst 3750 series.

What accessories are available for the Catalyst 4948E switch?

Accessories for the Catalyst 4948E switch include power supply units, fan modules, and rack-mount kits.

What are common troubleshooting steps for the Catalyst 4948E switch?

Common troubleshooting steps include checking cable connections, verifying power supply, and ensuring correct configuration.
