WS-C3560CX-12PC-S

Model:

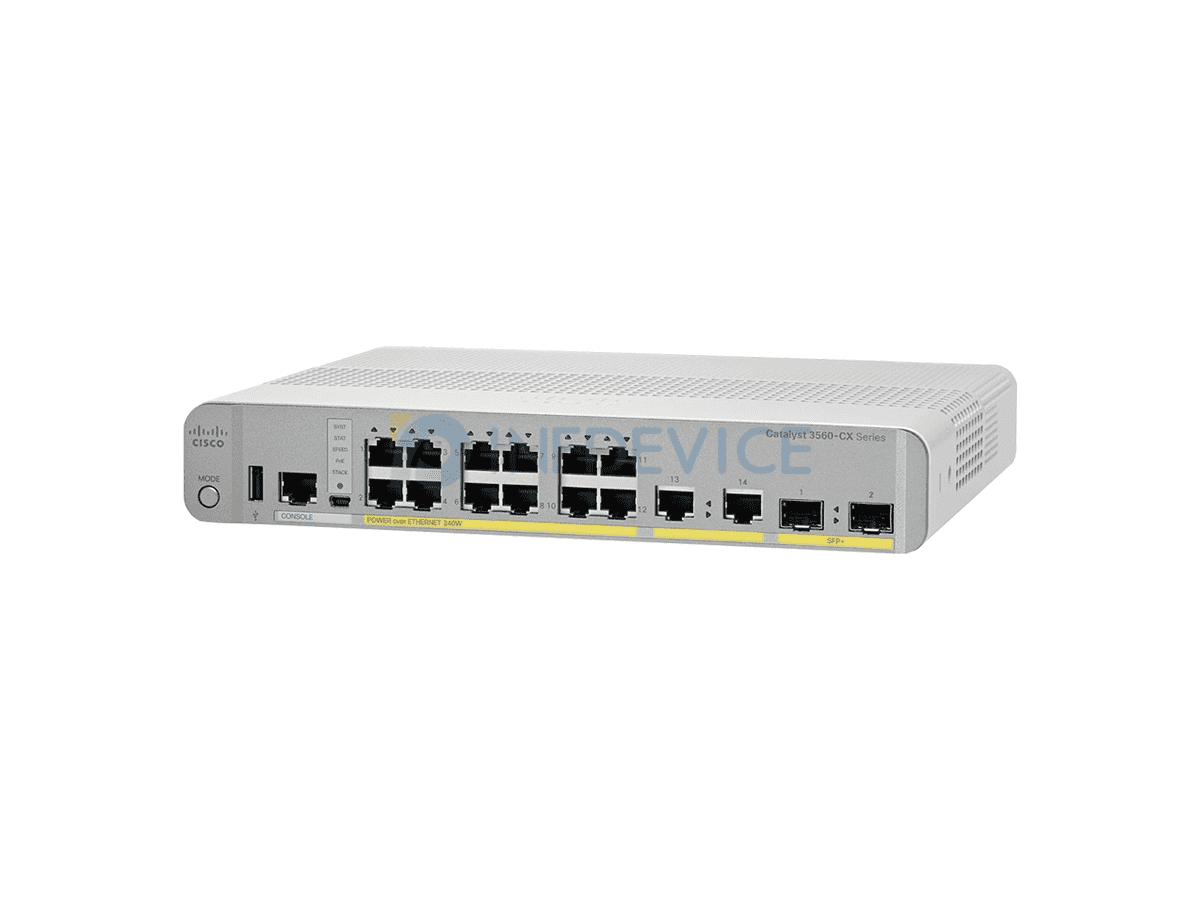

WS-C3560CX-12PC-S - Cisco Catalyst 3560-CX Switch

Detail:

Cisco Catalyst 3560-CX 12 Port PoE IP Base.

List Price:

US$ 3,019.85

Price:

US$2,045.18

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

PoE 12-Port

Add to Cart

WS-C3560CX-12PC-S Specification

WS-C3560CX-12PC-S Specifications
Forwarding Bandwidth	46 Gbps (with C3560CX-8XPD-S) 34 Gbps (with C3560CX-12PD-S) 16 Gbps (with 1 G uplinks)
Switching Bandwidth (full-duplex capacity)	92 Gbps (with C3560CX-8XPD-S) 68 Gbps (with C3560CX-12PD-S) 32 Gbps (with 1 G uplinks)
Flash memory	128 MB
Memory DRAM	512 MB
Max VLANs	1023
VLAN IDs	4000
Maximum Transmission Unit (MTU)	Up to 9000 bytes
Jumbo frames	9198 bytes
Forwarding rate 64 Byte Packet	23.8 mpps
Ethernet Interfaces	● 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling ● 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling ● 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling ● 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Power connectors	● Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit ● The internal power supply supports input voltages between 100 and 240VAC ● Use the supplied AC power cord to connect the AC power connector to an AC power outlet Note: The Cisco Catalyst WS-C3560CX-8PT-S has an option for an external AC-DC or DC-DC power adapter if desired.
Indicators	Per-port status: Link integrity, disabled, activity, speed, full-duplex System status: System, link status, link duplex, link speed
Dimensions (H x W x D)	1.75 x 10.6 x 9.4 Inches
Weight	5.1 Pounds
Operating* temperature up to 5000 ft (1524 m)	-5°C to +45°C** (+23°F to +113°F)
Operating* temperature up to 10,000 ft (3048 m)	-5°C to +45°C (+23°F to +113°F)
Storage temperature up to 15,000 ft (4572 m)	-25°C to +70°C (-13°F to +158°F)
Operating altitude	Up to 3048 m (Up to 10,000 ft)
Storage altitude	Up to 4000 m (Up to 15,000 ft)
Operating relative humidity	5% to 95% noncondensing
Storage relative humidity	5% to 95% noncondensing
Mean Time Between Failure (MTBF)	553,140
Safety standards	● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
Electromagnetic emissions certifications	● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental	Reduction of Hazardous Substances (ROHS) 6
Telco	Common Language Equipment Identifier (CLEI) code

Q&A

How does the Cisco Catalyst 3560-CX compare to similar switches?

The WS-C3560CX-12PC-S offers superior PoE capabilities and Layer 3 features compared to many other compact switches.

What is a common troubleshooting step for the Cisco Catalyst 3560-CX?

A common troubleshooting step is to check port connections and ensure that the device firmware is up to date.

What are the management options available for the Cisco Catalyst 3560-CX?

The WS-C3560CX-12PC-S can be managed via Cisco Network Assistant, CLI, or through web-based interfaces.
