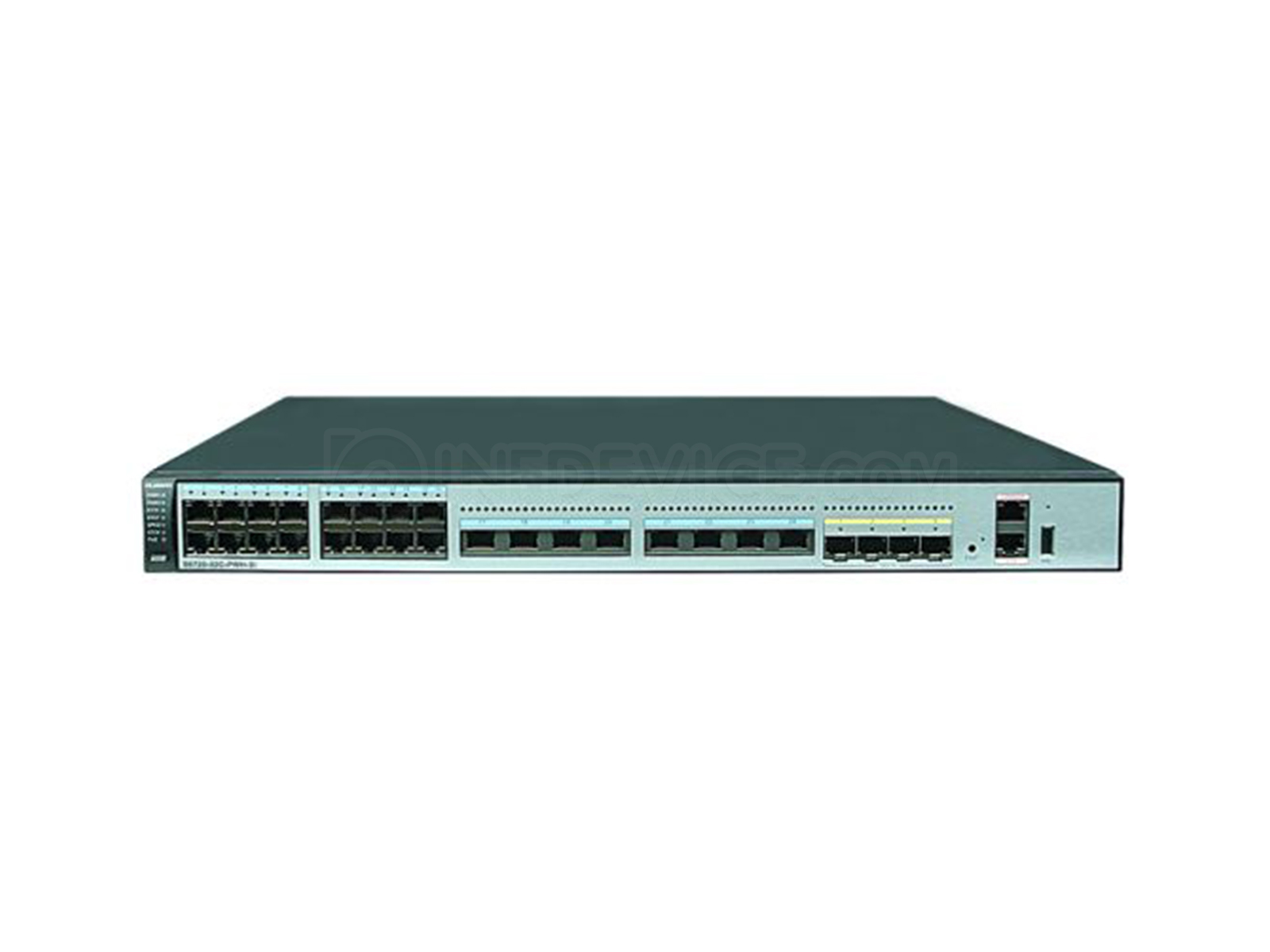

S6720-32C-PWH-SI

S6720-32C-PWH-SI Specification

Switching Capacity

2.56 Tbit/s

Forwarding Performance

240 Mpps

Fixed ports

24x100M/1G/2.5G/5G/10GBase-T

Ethernet ports, 4x10GE SFP+

Extended slots

One extended slot, support 2*40GE QSFP+，4*10GE SFP+

MAC address table

32K

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN features

4K VLANs

Guest VLAN and voice VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

VLAN mapping

Super VLAN

Basic QinQ and selective QinQ

IPv4 routing

Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP

VRRP

Policy-based routing

Routing policies

IPv6 routing

Static routing

RIPng

OSPFv3

BGP4+

ISISv6

IPv6 features

Neighbor Discovery (ND) and ND snooping

IPv6 Ping

VRRP6

DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay

MLDv1 and MLDv2

PIM-DM for IPv6

PIM-SM for IPv6

6 Over 4 tunnels

Multicast

IGMP V1/V2/V3 snooping

Fast leave

IGMP snooping proxy

MLD snooping

Port-based multicast traffic suppression

Inter-VLAN multicast replication

Controllable multicast

IGMP v1/v2/v3

PIM-SM and PIM-DM

Multicast Source Discovery Protocol (MSDP)

Multicast routing policies

QoS/ACL

Traffic classification based on ACLs

Traffic classification based on outer 802.1p fields, inner VLAN IDs, outer VLAN IDs, source MAC addresses, and Ethernet types

Access control after traffic classification

Traffic policing based on traffic classifiers

Re-marking based on traffic classifiers

Class-based packet queuing

Associating traffic classifiers with traffic behaviors

Rate limiting on inbound and outbound ports

Traffic shaping based on ports and queues

Tail drop

Priority Queuing (PQ)

Deficit Round Robin (DRR)

PQ + DRR scheduling

Weighted Round Robin (WRR)

PQ + WRR scheduling

Reliability

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection

switchover

Smart Ethernet Protection (SEP)

G.8032 Ethernet Ring Protection Switching (ERPS)

BFD for OSPF, IS-IS, VRRP, and PIM protocols

Enhanced trunk (E-trunk)

Security features

Defense against DoS, ARP, and ICMP attacks

Binding of the IP address, MAC address, port number, and VLAN ID of a user

Port isolation, port security, and sticky MAC

MAC-Forced Forwarding (MACFF)

Limit on the number of learned MAC addresses

IEEE 802.1X authentication, MAC address authentication, Portal authentication, and hybrid

authentication

Authentication methods, including AAA, RADIUS, and HWTACACS

CPU defense

MACSec

Super Virtual Fabric (SVF)

SVF Parent and Client

Management and maintenance

iStack (using service ports as stack ports)

Virtual Cable Test (VCT)

Ethernet OAM (IEEE 802.3ah and 802.1ag)

SNMPv1/v2c/v3

RMON

Web-based network management system and relevant features

System logs and multi-level alarms

GVRP

MUX VLAN

sFlow

Hypertext Transfer Protocol Secure (HTTPS)

SSH1.5/SSH2

Operating environment

Working temperature: 0–1800 m, 0–45°C; 1800–5000 m, the highest operating temperature reduces

by 1°C every time the altitude increases by 220 m.

Relative humidity: 5%–95% (noncondensing)

Input voltage

AC:

• Rated voltage range: 100 V to 240 V AC, 50/60 Hz

• Maximum voltage range: 90 V to 264 V AC, 47/63Hz

DC:

• Rated voltage range: –48 V to –60 V DC

• Maximum voltage range: –36 V to –72 V DC

Dimensions (W x D x H, mm)

442 x 420 x 44.4

Height

1 U

Typical power consumption

• 650W DC/580W AC without card and PD: 106.9W

• 1150W AC /1000W AC without card and PD: 121.6W

Maximum power consumption (W)

• 650W DC/580W AC (without card and PD): 125.6W

• 1150W AC/1000W AC(without card and PD): 125.6W
