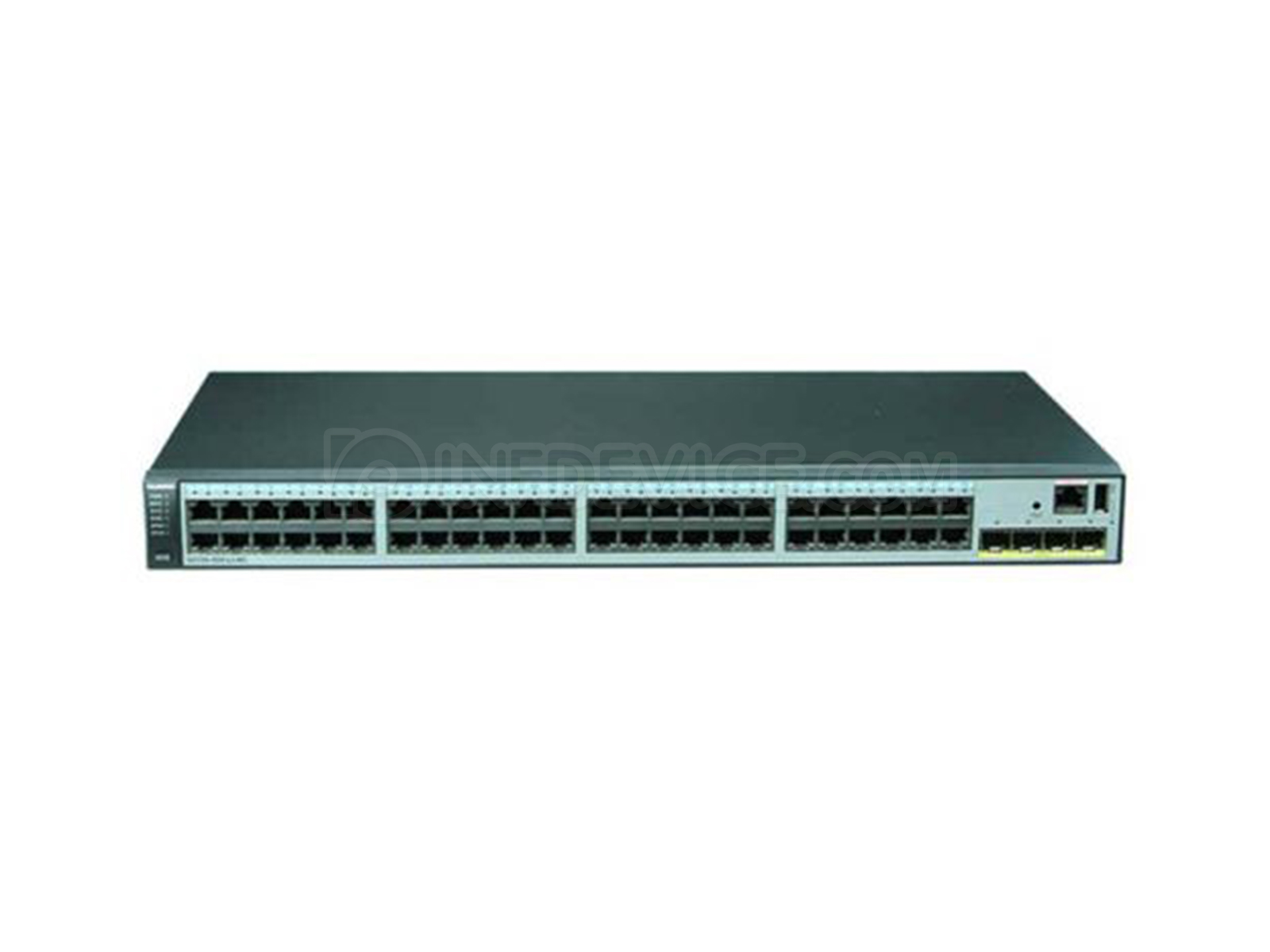

S5720-52X-LI-DC Specification |
|
Memory (RAM) |
512 MB |
Flash |
240 MB |
Mean time between failures (MTBF) |
41 years |
Mean time to repair (MTTR) |
2 hours |
Availability |
> 0.99999 |
Service port surge protection |
Common mode: ±7 kV |
Power supply surge protection |
±1 kV in differential mode, ±2 kV in common mode |
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
Weight (including packaging materials) |
3.5 kg (7.72 lb) |
Stack ports |
Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports |
RTC |
Not supported |
RPS |
Supported |
PoE |
Not supported |
Rated voltage range |
-48 V DC to -60 V DC |
Maximum voltage range |
-36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) |
51.6 W |
Typical power consumption (30% of traffic load)
|
33.1 W |
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) |
less than 44.5 dBA |
Relative humidity |
5% to 95%, noncondensing |
Operating altitude |
0-5000 m (0-16404 ft.) |
