N9K-C9336C-FX2

Model:

Cisco Nexus 9000 N9K-C9336C-FX2 Switch

Detail:

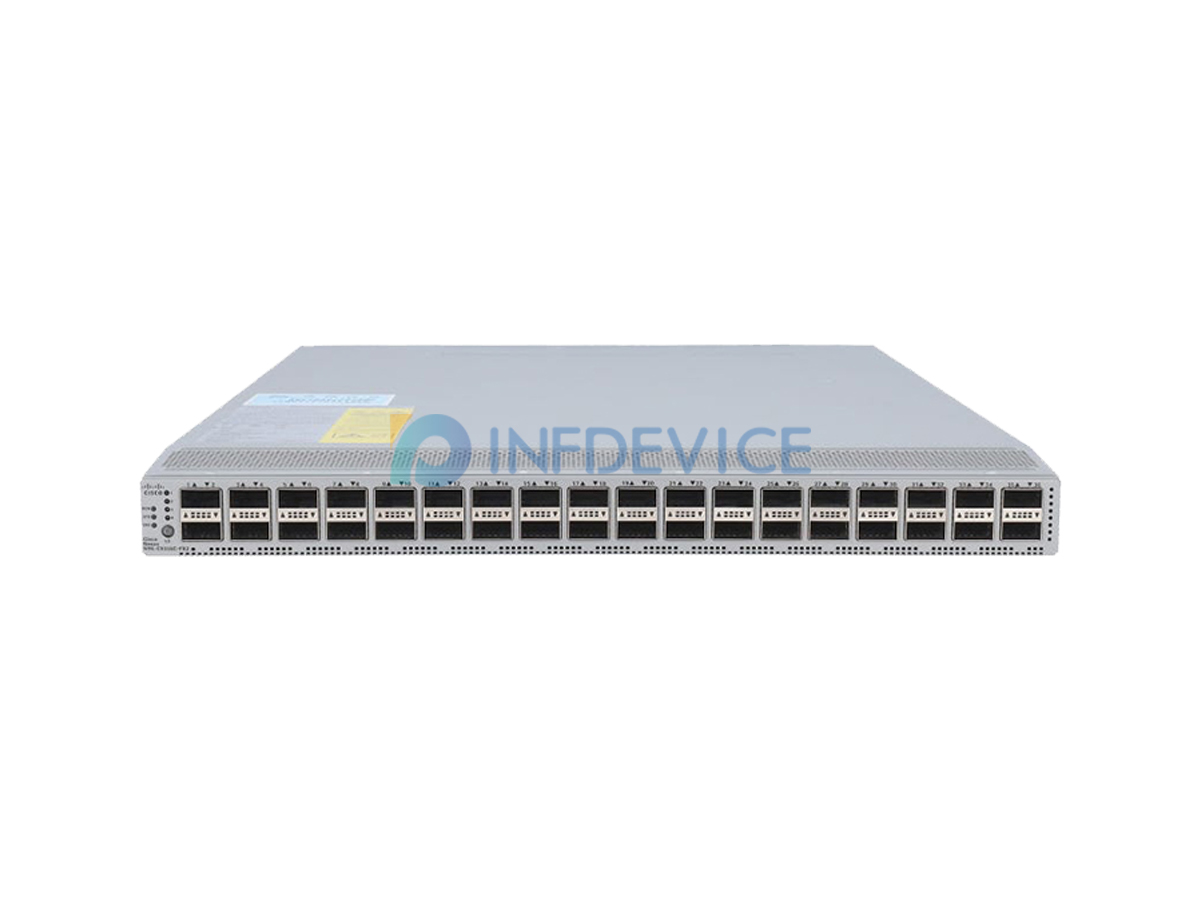

Cisco Nexus 9336C-FX2 with 36x 40G/100G QSFP28 ports for dense throughput requirements.

Price:

US$8,575.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

Specification

N9K-C9336C-FX2 Specification

N9K-C9336C-FX2 Specification
Item	Cisco Nexus 9300-FX2 Series Switches
Feature	Cisco Nexus 9336C-FX2
Ports	36 x 40/100-Gbps QSFP28 ports
Supported speeds	1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36
CPU	4 cores
System memory	24 GB
SSD drive	128 GB
System buffer	40 MB
Management ports	2 ports: 1 RJ-45 and 1 SFP+
USB ports	1
RS-232 serial ports	1
Power supplies (up to 2)	750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC
Typical power (AC)	337W
Maximum power (AC)	719W
Input voltage (AC)	100 to 240V
Input voltage (High-Voltage AC [HVAC])	100 to 277V
Input voltage (DC)	–40 to –72V
Input voltage (High-Voltage DC [HVDC])	–240 to –380V
Frequency (AC)	50 to 60 Hz

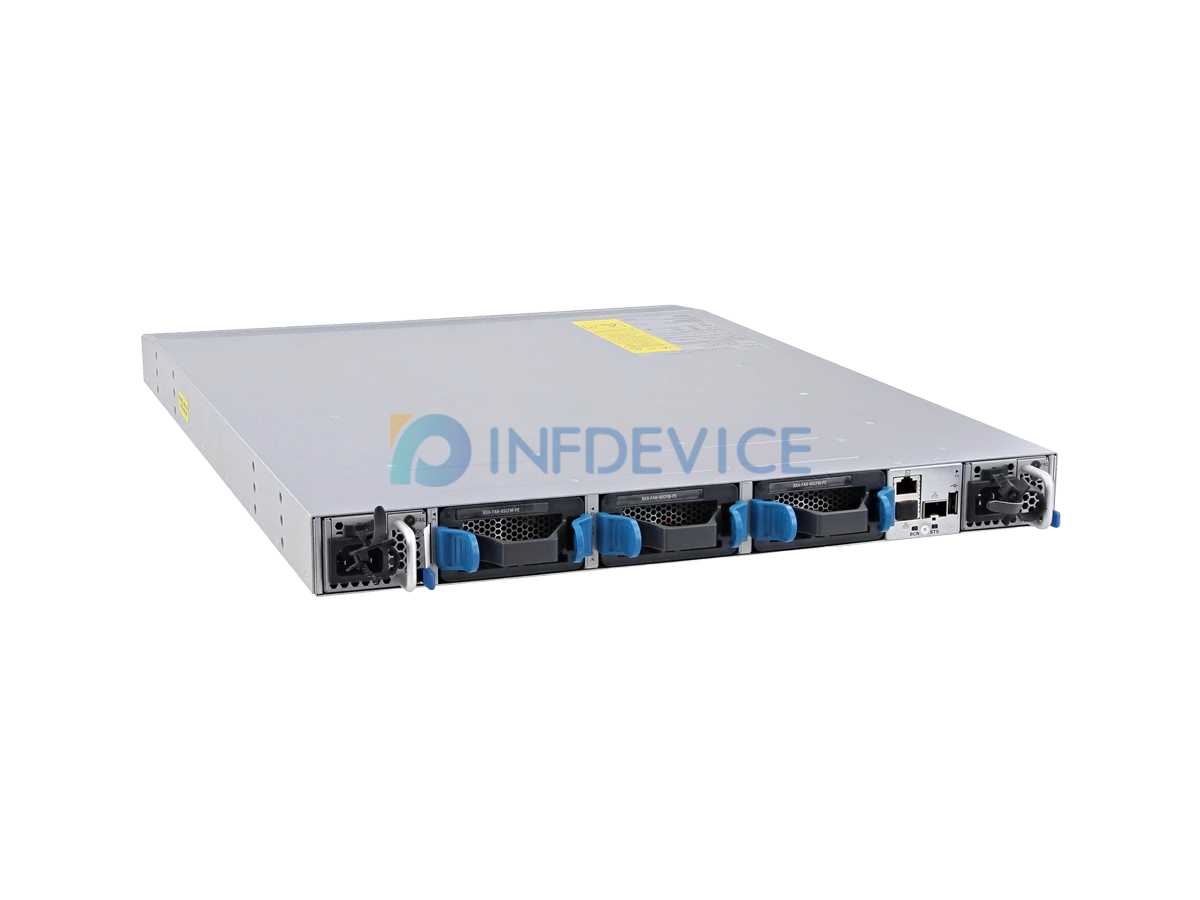

Fans	3 dual fan trays
Airflow	Port-side intake and exhaust
Physical dimensions (H x W x D)	1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm)
MTBF	352,590 hours
Maximum number of Longest Prefix Match (LPM) routes^**	896,000
Maximum number of IP host entries^**	896,000
Maximum number of MAC address entries^**	256,000
Maximum number of multicast routes	128,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups	Shipping: 8,000 Maximum: 32,000
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch	16
Maximum number of Access Control List (ACL) entries	Per slice of the forwarding engine: 5000 ingress 2000 egress
Maximum number of VLANs	4096
Number of Virtual Routing and Forwarding (VRF) instances	Shipping: 1,000 Maximum: 16,000
Maximum number of ECMP paths	64
Maximum number of port channels	512
Maximum number of links in a port channel	32
Number of active SPAN sessions	4
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances	3,967
Maximum number of Hot-Standby Router Protocol (HSRP) groups	490
Number of Network Address Translation (NAT) entries	1,023
Maximum number of Multiple Spanning Tree (MST) instances	64
Flow-table size used for Cisco Tetration Analytics platform	64,000
Number of Queues	8
