FPR4120-NGIPS-K9

FPR4120-NGIPS-K9 Specification

Product Number

FPR4120-NGIPS-K9

Product Description

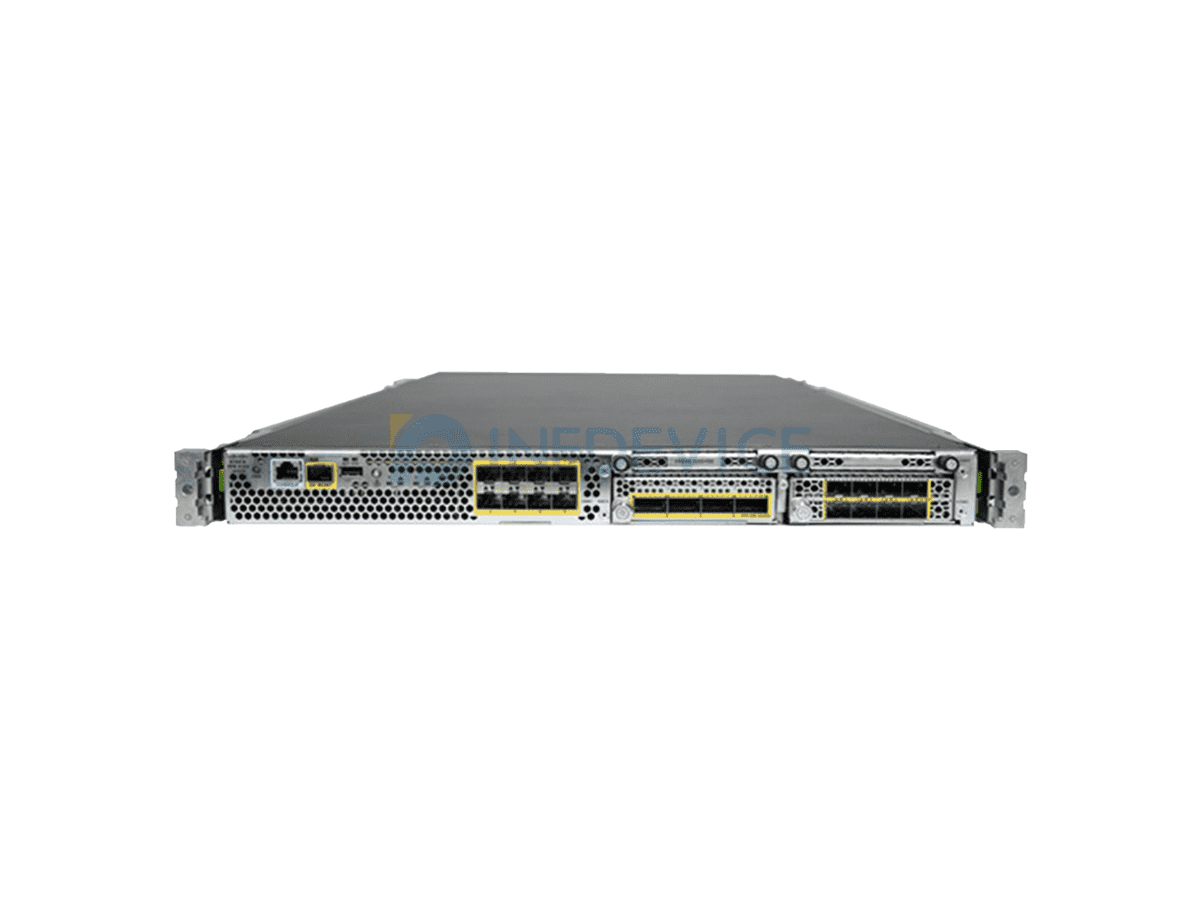

Cisco Firepower 4120 NGIPS Appliance. 1U. 2 x NetMod Bays

Cisco Firepower 4120 Specification

Performance and Capabilities on Firepower Appliances

Stateful inspection firewall throughput

60 Gbps

Stateful inspection firewall throughput (multiprotocol)

30 Gbps

Concurrent firewall connections

15 million

Firewall latency (UDP 64B microseconds)

3.5

New connections per second

250,000

IPsec VPN throughput (450B UDP L2L test)

10 Gbps

IPsec/Cisco AnyConnect/Apex site-to-site VPN peers

15,000

Maximum number of VLANs

1024

Security contexts (included; maximum)

10; 250

High availability

Active/active and active/standby

Clustering

Up to 16 appliances

Scalability

VPN Load Balancing, Firewall Clustering

Centralized management

Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator

Adaptive Security Device Manager

Web-based, local management for small-scale deployments

Hardware Specifications

Dimensions (H x W x D)

1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm)

Form factor (rack units)

1RU

Security module slots

-

I/O module slots

2

Supervisor

Cisco Firepower 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion

Network modules

●  8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules

●  4 x 40 Gigabit Ethernet Quad SFP+ network modules

●  8-port 1Gbps copper, FTW (fail to wire) Network Module

Note: Firepower 4100 Series appliances may also be deployed as dedicated threat sensors, with fail-to-wire network modules. Please contact your Cisco representative for details.

Maximum number of interfaces

Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules

Integrated network management ports

1 x Gigabit Ethernet copper port

Serial port

1 x RJ-45 console

USB

1 x USB 2.0

Storage

200 GB

Power supplies

Configuration

Single 1100W AC, dual optional. Single/dual 950W DC optional

AC input voltage

100 to 240V AC

AC maximum input current

13A

AC maximum output power

1100W

AC frequency

50 to 60 Hz

AC efficiency

>92% at 50% load

DC input voltage

-40V to -60VDC

DC maximum input current

27A

DC maximum output power

950W

DC efficiency

>92.5% at 50% load

Redundancy

1+1

Fans

6 hot-swappable fans

Noise

78 dBA

Rack mountable

Yes, mount rails included (4-post EIA-310-D rack)

Weight

36 lb (16 kg): 2 x power supplies, 2 x NMs, 6x fans; 30 lb (13.6 kg): no power supplies, no NMs, no fans

Temperature: operating

32 to 104°F
(0 to 40°C)

Temperature: nonoperating

-40 to 149°F (-40 to 65°C)

Humidity: operating

5 to 95% noncondensing

Humidity: nonoperating

5 to 95% noncondensing

Altitude: operating

10,000 ft (max) or NEBS operation (see below)

Altitude: nonoperating

40,000 ft (max)

NEBS operation (FPR 4120 only)

Operating altitude: 0 to 13,000 ft (3960 m)

Operating temperature:

Long term: 0 to 45°C, up to 6,000 ft (1829 m)

Long term: 0 to 35°C, 6,000 to 13,000 ft (1829 to 3964 m)

Short term: -5 to 50°C, up to 6,000 ft (1829 m)
