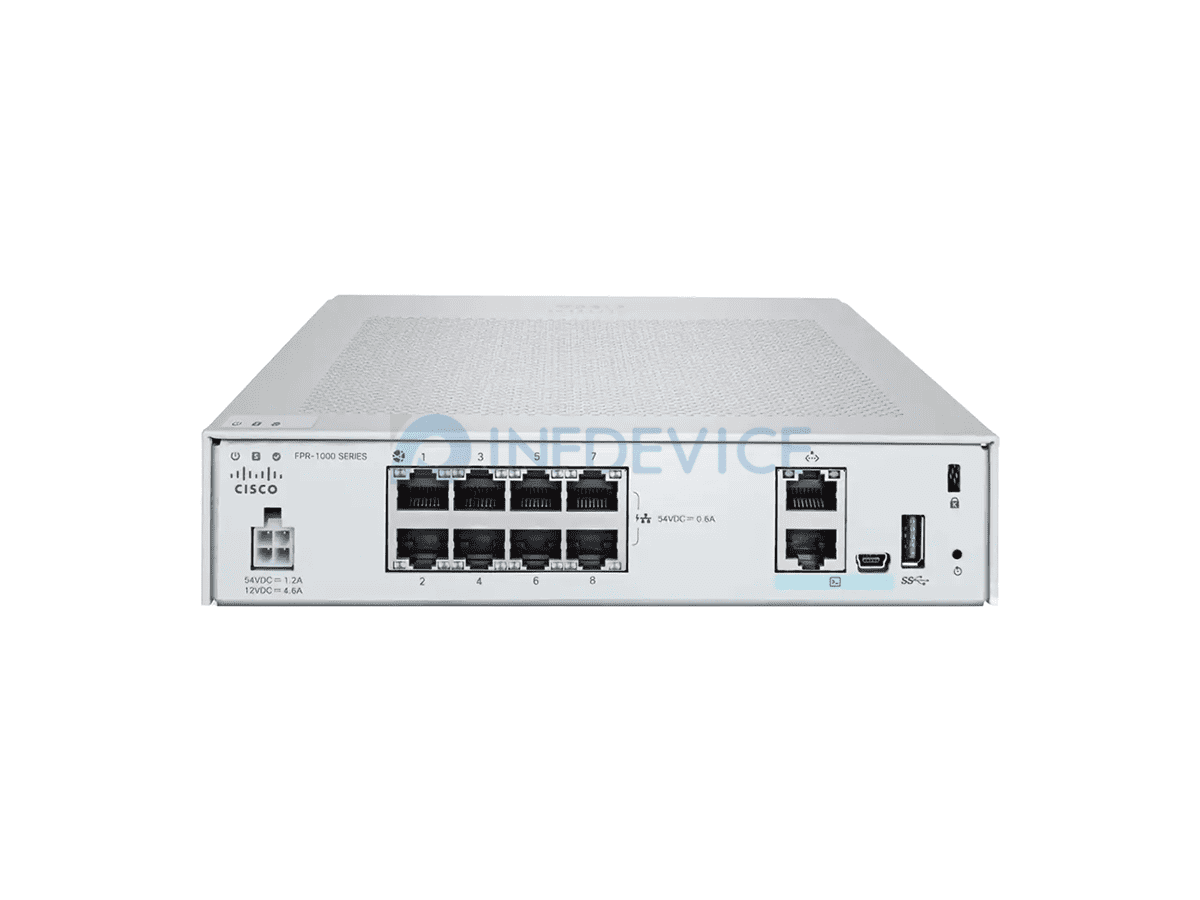

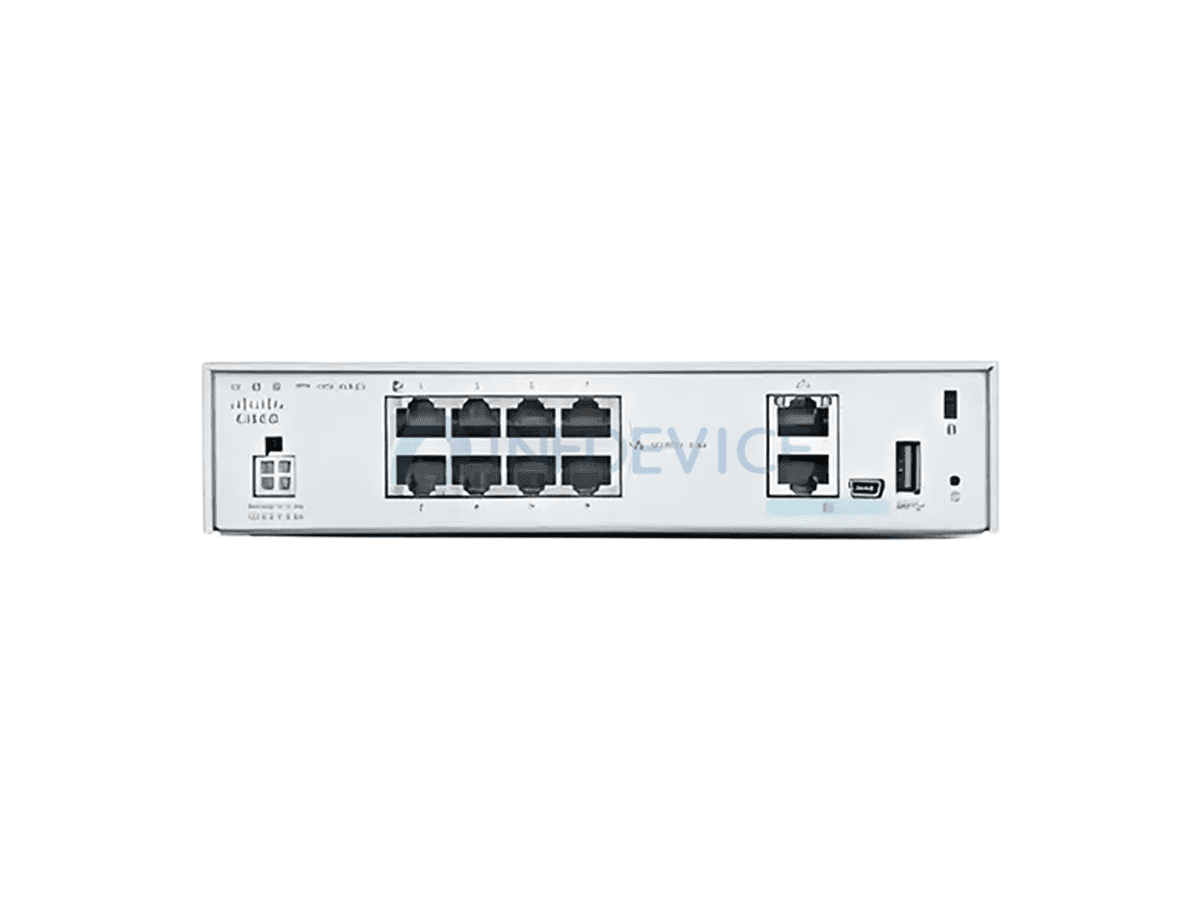

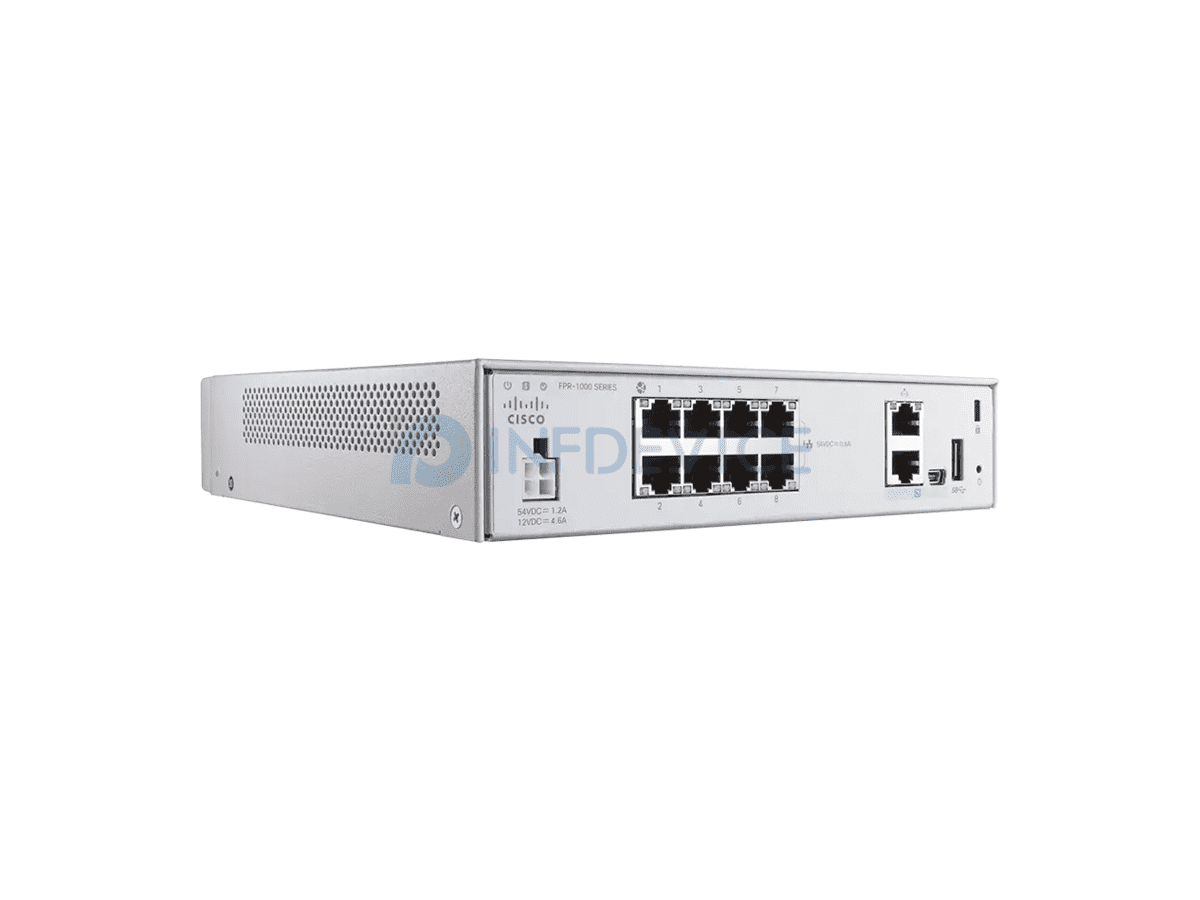

FPR1010-NGFW-K9

FPR1010-NGFW-K9 Specification

NGFW

650 Mbps

Next-Generation Intrusion Prevention System (NGIPS)

650 Mbps

Dimensions (H x W x D)

1.82 x 7.85 x 8.07 in.

Form factor (rack units)

DT

Integrated I/O

8 x RJ-45

Integrated network management ports

1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)

Serial port

1 x RJ-45 console

USB

1 x USB 3.0 Type-A (500mA)

Storage

1 x 200 GB

Power supply configuration

+12V and -53.5V

AC input voltage

100 to 240V AC

AC maximum input current

< 2A at 100V, < 1A at 240V

AC maximum output power

115W (55W of +12V and 60W of -53.5V)

AC frequency

50 to 60 Hz

AC efficiency

>88% at 50% load

Redundancy

None

Fans

None

Noise

0 dBA

Rack mountable

Yes. Separate kit must be ordered.

Weight

3 lb (1.36 kg)

Temperature: operating

32 to 104°F (0 to 40°C)

Temperature: nonoperating

-13 to 158°F (-25 to 70°C)

Humidity: operating

90% noncondensing

Humidity: nonoperating

10 to 90% noncondensing

Altitude: operating

9843 ft (max)

3000 m (max)

Altitude: nonoperating

15,000 ft (max)
