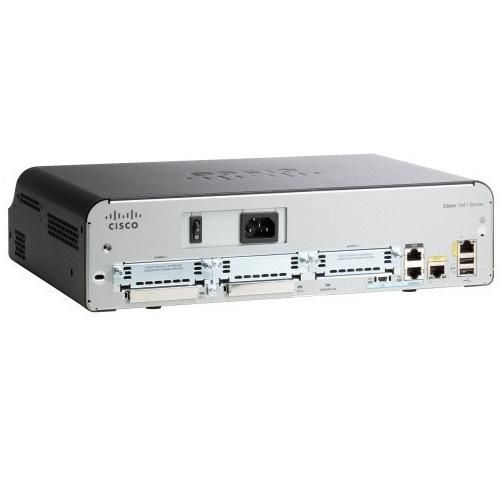

CISCO1941/K9

Model:

CISCO1941/K9 Cisco 1941 Router ISR G2

Detail:

Cisco 1941 Router with 2 GE ports, 2 EHWIC slots, 256MB CompactFlash, 512MB DRAM, and IP Base license.

Price:

US$1,066.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Small Business Routers Router Cisco

Add to Cart

Cisco ISR4331/K9 Overview

The Cisco ISR4331/K9 is a versatile and powerful integrated services router designed for small to medium-sized businesses and branch offices. It offers a range of features to support secure connectivity, unified communications, and application performance.

Key Features and Benefits

High Performance: Delivers an aggregate throughput of 100 Mbps to 300 Mbps, ensuring smooth network operation even under heavy loads.
Flexible Connectivity: Provides a variety of connectivity options including:
- 3 WAN/LAN ports (1 combo port with both RJ-45 and SFP, 1 dedicated RJ-45, and 1 dedicated SFP)
- 2 NIM slots for expansion modules
- 1 SM-X slot for service modules
Unified Communications: Supports voice and video applications, enabling efficient collaboration and communication.
Enhanced Security: Offers integrated security features to protect your network from threats.
Simplified Management: Easy to deploy and manage, reducing operational overhead.

Technical Specifications

Feature	Specification
Product Code	Cisco ISR4331/K9
Aggregate Throughput	100 Mbps to 300 Mbps
WAN/LAN Ports	3 (1 combo, 1 RJ-45, 1 SFP)
NIM Slots	2
SM-X Slot	1
ISC Slot	1
Memory	4 GB (default) / 16 GB (maximum)
Flash Memory	4 GB (default) / 16 GB (maximum)
Power Supply	Internal AC and PoE
Rack Height	1 RU
Dimensions (H x W x D)	44.45 x 438.15 x 438.15 mm
Weight	12.96 Kg

USB Type B mini port: For console connection
Management port: For out-of-band management
Serial console port: For initial configuration and troubleshooting
LEDs: Provide status information on various components
USB Type A port: For external storage or other peripherals
AC Power: Connector for AC power input
AUX Port: Auxiliary port for dial-in modem or other devices
Power switch: To turn the router on or off

Back Panel

RJ45 Ports: For connecting to Ethernet networks
NIM Slots: For installing network interface modules
SFP Ports: For connecting to fiber optic networks
SM-X Slot: For installing service modules

Note: The combo port allows either the RJ-45 or the SFP to be used, but not both simultaneously.

Expansion Options

The ISR4331/K9 supports a wide range of expansion modules, including:

Network Interface Modules (NIMs): Add various types of network connectivity, such as T1/E1, serial, and ISDN PRI.
Service Modules (SMs): Provide additional functionality, such as voice processing, security, and WAN optimization.

Why Choose the Cisco ISR4331/K9?

Reliability: Cisco routers are known for their reliability and stability, ensuring your network stays up and running.
Security: The ISR4331/K9 offers a comprehensive suite of security features to protect your network from threats.
Scalability: The router can be easily expanded to accommodate future growth.
Investment Protection: Cisco's long product lifecycles help protect your investment.

If you're looking for a reliable, secure, and scalable router for your business, the Cisco ISR4331/K9 is an excellent choice.

Specification

CISCO1941/K9 Specification

CISCO1941/K9 Specification
Main Specs
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	CISCO1941/K9
Product Type	Router
Form Factor	External - modular - 2U
Dimensions (WxDxH)	34.3 cm x 29.2 cm x 8.9 cm
Weight	5.8 kg
DRAM Memory	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	IPSec
Remote Management Protocol	SNMP, RMON
Features	Cisco IOS IP Base , firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)
Compliant Standards	IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag
Power	AC 120/230 V ( 50/60 Hz
Services and Slot Density
Embedded hardware-based crypto acceleration (IPSec + SSL)	Yes
Total Onboard LAN 10/100/1000	2
RJ-45-Based Ports	2
SFP-Based Ports	0
SM Slots	0
Double-Wide SM Slots	0
EHWIC Slots	2
Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots)	1
ISM Slots	1 (0 on the Cisco 1941W)
Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default	512 MB
Memory (DDR2 ECC DRAM) - Maximum	2.0 GB
Compact Flash (external) - Default	slot 0: 256 MB slot 1: none
Compact Flash (external) - Maximum	slot 0: 4 GB slot 1: 4 GB
External USB flash memory slots (Type A)	2
USB Console Port (Type B) (up to 115.2 kbps)	1
Serial Console Port (up to 115.2 kbps)	1
Serial Auxiliary Port (up to 115.2 kbps	1
Power Supply Options	AC, POE
Redundant Power Supply Support	No
Power Specifications
AC Input Voltage	100-240 V ~
AC Input Frequency	47-63 Hz
AC Input Current range AC Power Supply (Max) (Amps)	1.5-0.6
AC Input Surge Current	<50 A
Typical Power (No Modules)	35 W
Maximum Power capacity with AC power supply	110 W
Maximum Power capacity with PoE power supply (platform only)	110 W
Maximum PoE device power capacity with PoE power supply	80 W
Physical Specifications
Dimensions (H x W x D)	3.5 in x 13.5 in x 11.5 in (34.3 cm x 29.2 cm x 8.9 cm)
Rack Height	2 RU
Rack-mount 19in. (48.3 cm) EIA	Included
Wall-mount (refer to installation guide for approved orientation)	Yes
Package Weight	23.1 lbs (10.48 Kg)
Weight-with AC power supply (no modules)	12 lbs(5.44 Kg)
Weight-with POE power supply (no modules)	12.8 lbs (5.8 Kg)
Maximum Weight-Fully Configured	14 lbs (6.35 Kg)
Airflow	Front to Side
Environmental Specifications
Operating Condition
Temperature-5906 feet (1800 m) max. altitude	0-40°C (32-104°F)
Temperature-9843 feet (3000 m) max. altitude	0-25°C (32-77°F)
Altitude	3000 m (10000 ft)
Humidity	10 to 85% RH
Acoustic: Sound Pressure (Typ/Max)	26/46 dBA
Acoustic: Sound Power (Typ/Max)	36/55 dBA
Transportation/Storage Condition
Temperature	-40 - 70 oC (-40 - 158 oF)
Humidity	5 to 95%RH
Altitude	4570m (15000 ft)
Regulatory Compliance
Safety	UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1
EMC	47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 EN50082-1
Telecom	TIA/EIA/IS-968 CS-03 ANSI T1.101 ITU-T G.823, G.824 IEEE 802.3 RTTE Directive

Q&A

What troubleshooting steps can be taken if the Cisco ISR4331/K9 experiences connectivity issues?

For connectivity issues, check cable connections, verify configuration settings, restart the router, and consult the Cisco support documentation.

What accessories are available for the Cisco ISR4331/K9?

Accessories include additional service modules, SFP modules, power supplies, and rack-mount kits.

How does the Cisco ISR4331/K9 compare with similar routers in its category?

The ISR4331/K9 offers superior system throughput, advanced service capabilities, and flexible port options.

What security features are integrated into the Cisco ISR4331/K9?

The ISR4331/K9 integrates robust security features such as firewall protection, VPN support, and advanced security software.

What is the throughput capacity of the Cisco ISR4331/K9?

The Cisco ISR4331/K9 offers an aggregate throughput of 100 Mbps to 300 Mbps.
