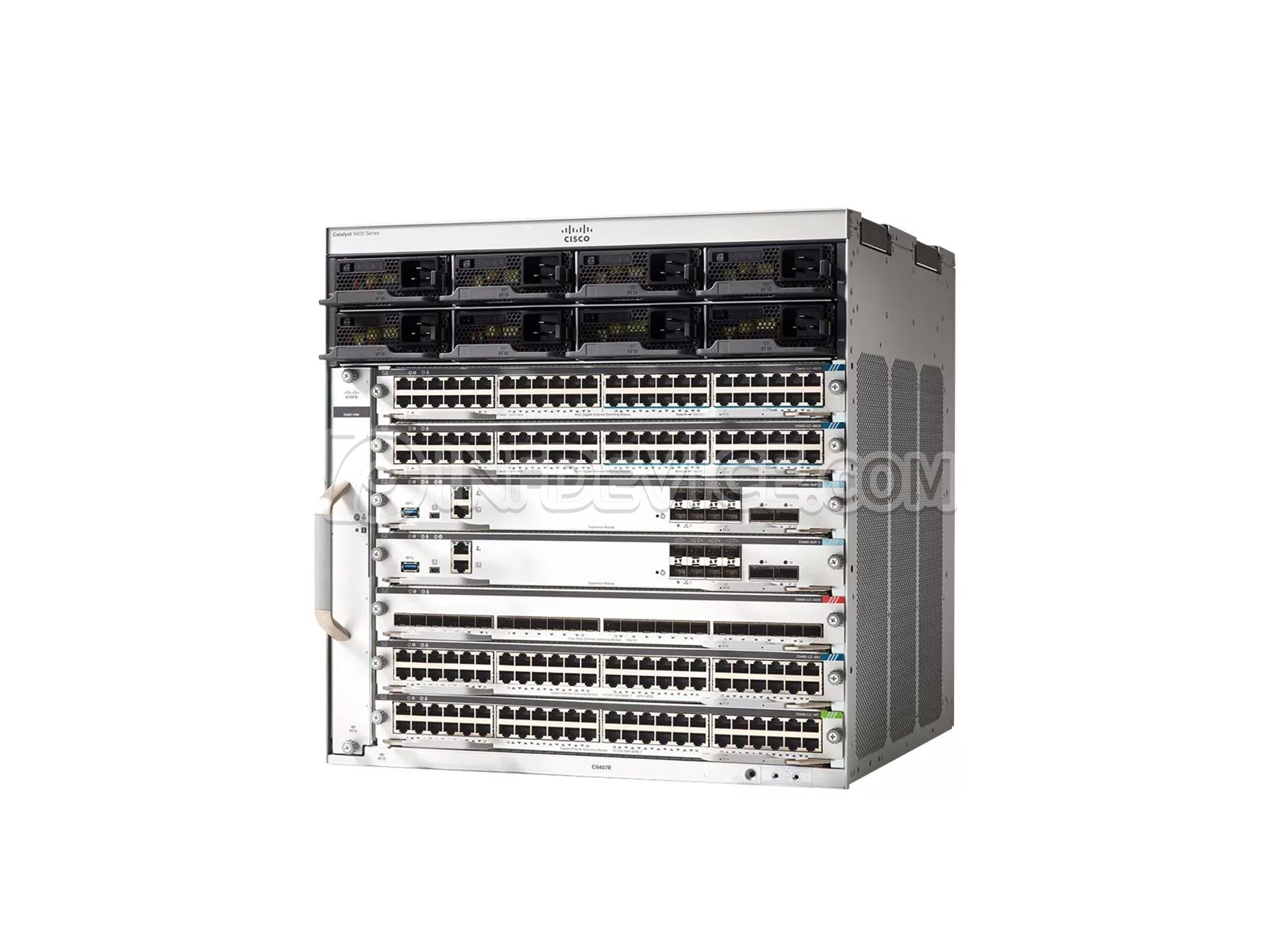

C9407R-96U-BNDL-A

C9407R-96U-BNDL-A Specification

Total number of slots

7

Line-card slots

5

Supervisor engine slots

2

Dedicated supervisor engine slot numbers

3 and 4

Supervisor engine redundancy

Yes

Supervisor engines supported

C9400-SUP-1,

C9400-SUP-1XL, C9400-SUP-1XL-Y

Maximum PoE per slot

2880W

Maximum Bandwidth scalability per line-card slot

Up to 480 Gbps on all slots

Number of power supply bays

8

AC input power

Yes

Integrated PoE

Yes

Power supplies supported

3200W AC, 2100W AC

Number of fan-tray bays

1

Location of 19-inch rack-mount

Front

Dimensions (H x W x D)

17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm)

Rack Units (RU)

10 RU

Chassis weight (with fan tray)

63.0 lb (28.58 kg)

Mounting

19-in rack compatible (19-in. rack and cable guide hardware included)

Regulatory compliance

CE Marking

Safety

●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

EMC

●  47 CFR Part 15

●  CISPR22 Class A

●  KN 32 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CNS13438 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

●  KN35

Industry EMC, safety, and environmental standards

●  NEBS: Operating temperature: -5 to 55C

●  Relative Humidity: 10-93%

●  Operating Altitude: up to 1829 m (6000 ft) at 55C

●  ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.

●  SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue)

●  ETS 300 019-2-1, Class 1.2 Storage

●  ETS 300 019-2-2, Class 2.3 Transportation

●  ETS 300 019-2-3, Class 3.2 Stationary

●  EN50121-4

●  EN 300 386

ROHS compliance

ROHS5
