C9300-48U-A

Model:

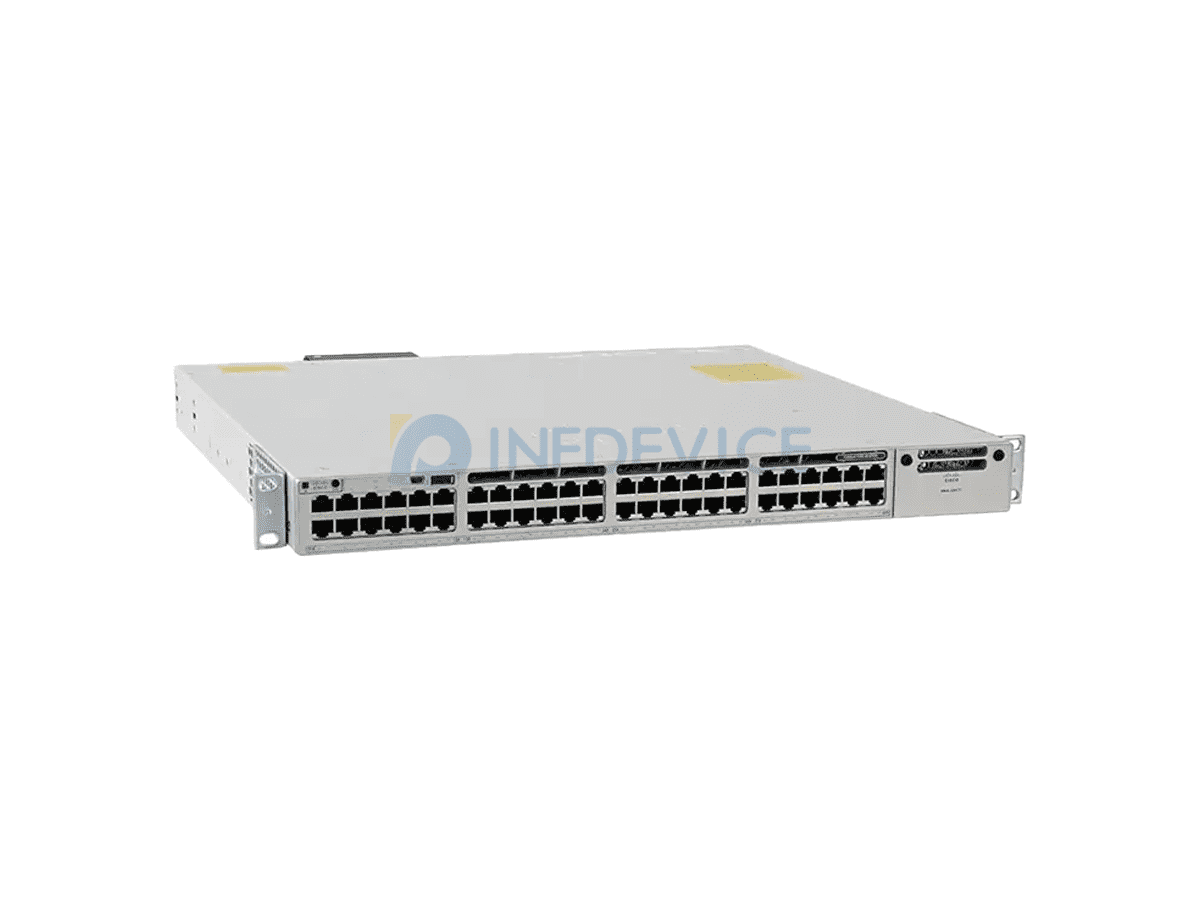

Cisco Catalyst 9300 48-Port UPOE Switch

Detail:

48-port UPOE Switch with Network Advantage for universal power over Ethernet applications.

Price:

US$4,000.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

48 Port PoE Switch 48 Port Switch 48 Port Gigabit Switch Convergence Switches C9300-48U Layer 3 Switch

Add to Cart

C9300-48U-A Overview

C9300-48U-A: Leading the Catalyst 9300 Series

The Cisco Catalyst 9300 Series stands as Cisco's premier stackable enterprise switching solution, engineered to excel in security, IoT, mobility, and cloud environments. The C9300-48U-A, a standout member of this series, is a 48-port UPOE switch packed with Network Advantage features.

The Catalyst 9300 Series represents the cutting edge in enterprise switching, building on the success of its widely deployed predecessor. Boasting an impressive 480 Gbps stacking bandwidth, it leads the industry in both density and uplink flexibility. Moreover, it's the first platform optimized for high-density 802.11ac Wave2, redefining the limits of network scalability.

Future-proofing is built into its DNA with an x86 CPU architecture and expanded memory, allowing it to host containers and execute third-party applications and scripts directly on the switch.

Quick Specs at a Glance

Feature	Value
Product Code	C9300-48U-A
Description	Catalyst 9300 48-port UPOE, Network Advantage
Copper Ports	48 Cisco UPOE
Power Supply	1100W AC
Available PoE Power	822W
Dimensions	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds

Comparison: C9300-48U-A vs C9300-24P-A

Feature	C9300-48U-A	C9300-24P-A
Description	48-port UPOE, Network Advantage	24-port PoE+, Network Advantage
Copper Ports	48 Cisco UPOE	24 POE+
Power Supply	1100W AC	715W AC
Available PoE Power	822W	445W
Dimensions	1.73 x 17.5 x 17.5 Inches	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds	16.33 Pounds

Specification

C9300-48U-A Specification

C9300-48U-A Specification
Part Number	C9300-48U-A
Product Description	Catalyst 9300 48-port UPOE, Network Advantage
Total 10/100/1000 or Multigigabit copper ports	48 Cisco UPOE
Default AC power supply	1100W AC
Available PoE power	822W
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-1100WAC-P/2
Switching capacity	256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds
Mean time between failures (hours)	299,000
Safety certifications	● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3
Electromagnetic emissions certifications	● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317
Environmental	Reduction of Hazardous Substances (ROHS) 5

Q&A

What is the total number of ports on the C9300-48U-A?

It has 48 Cisco UPOE ports.

What is the default AC power supply for the C9300-48U-A?

It comes with a 1100W AC power supply.

What is the available PoE power on the C9300-48U-A?

It provides 822W of available PoE power.

Does the C9300-48U-A support stacking?

Yes, it supports Cisco StackWise-480 and Cisco StackPower.

How does the C9300-48U-A compare to other switches in the series?

The C9300-48U-A offers superior performance, a wider array of advanced features, and enhanced power capabilities compared to less powerful models within the Catalyst 9300 series.
