C9200L-24PXG-2Y-E

Model:

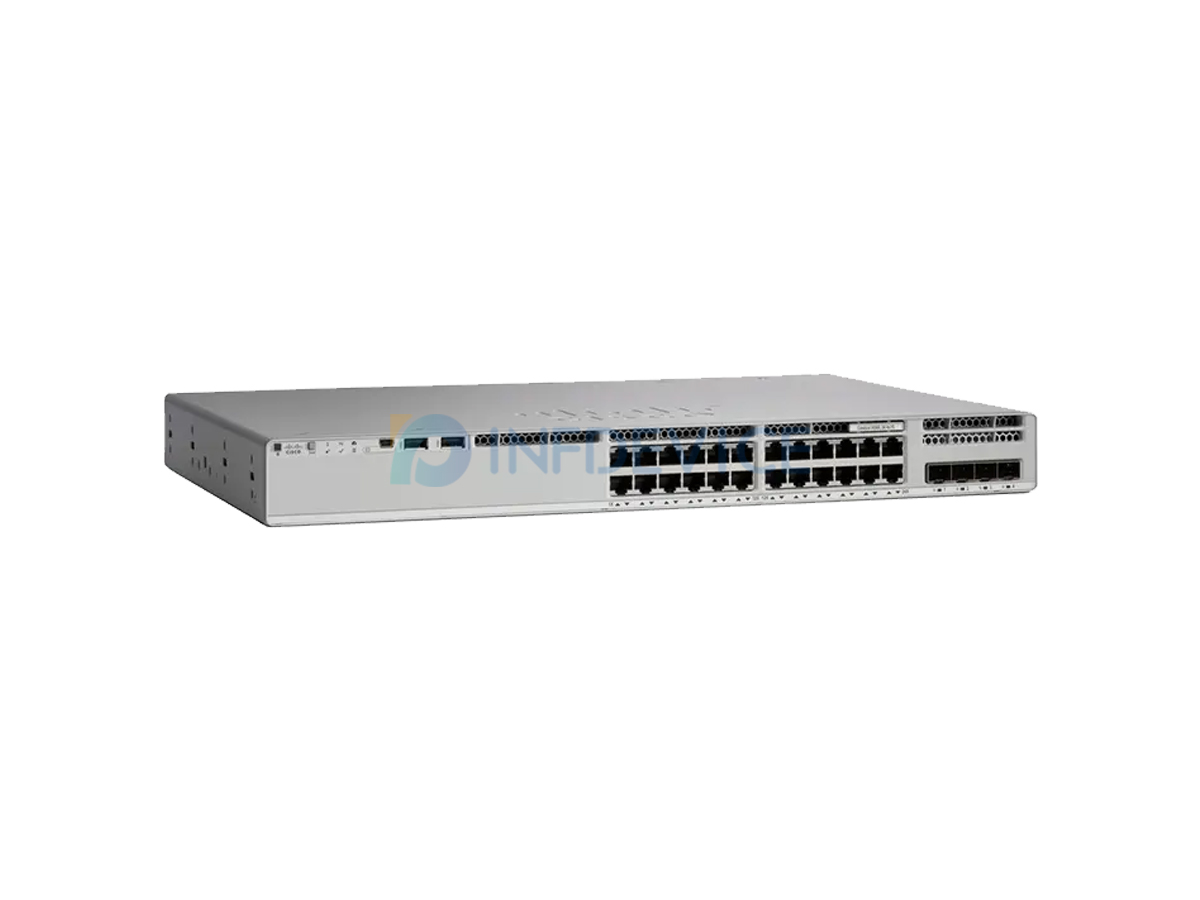

Cisco Catalyst 9200L 24-Port Switch

Detail:

Cisco Catalyst 9200L featuring 24-ports, 8x10G SFP+, 16x1G, 2x25G PoE+, Network Essentials.

Price:

US$3,987.79

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Add to Cart

Specification

C9200L-24PXG-2Y-E Specification
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)
Uplink configuration	2x 25G fixed uplinks
Default primary AC power supply	PWR-C5-600WAC
Fans	Fixed redundant
Software	Network Essentials
Chassis Dimensions	1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm
Virtual Networks	1
Stacking bandwidth	80 Gbps
Total number of MAC addresses	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries	3,000
IPv6 routing entries	1,500
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,500
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	2 GB
Flash	4 GB
VLAN IDs	1024
Total Switched Virtual Interfaces (SVIs)	512
Jumbo frames	9198 bytes
Wireless bandwidth per switch	N/A
Switching capacity	292 Gbps
Forwarding rate	229.16 Mpps
Mean time between failures (hours)	374,730

Q&A

What features does the Catalyst 9200 switch provide?

Cisco Catalyst 9200 Series of enterprise-class access switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. Compared to the scale and feature richness the of Catalyst 9300 Series switches, Catalyst 9200 Series switches focus on offering right-sized switching for simple branch deployments. With its family pedigree, Catalyst 9200 Series offers simplicity without compromise – it is secure, always on and provides a new level of IT simplicity. These switches also support full IEEE 802.3at PoE+, fixed and modular uplink options with field-replaceable network modules, redundant fans, and power supplies and a variety of uplink modules.

Which old series of Catalyst switches will be replaced by Catalyst 9200?

You can upgrade your Catalyst 2960X/XR to Catalyst 9200, but you still can use 2960X/XR switches.

What are the supported uplink modules for Cisco Catalyst 9200 Series switches?

Catalyst 9200 Series switches support the following uplink options: 4x 1 Gigabit Ethernet network module, and 4x 10 Gigabit Ethernet network module.
