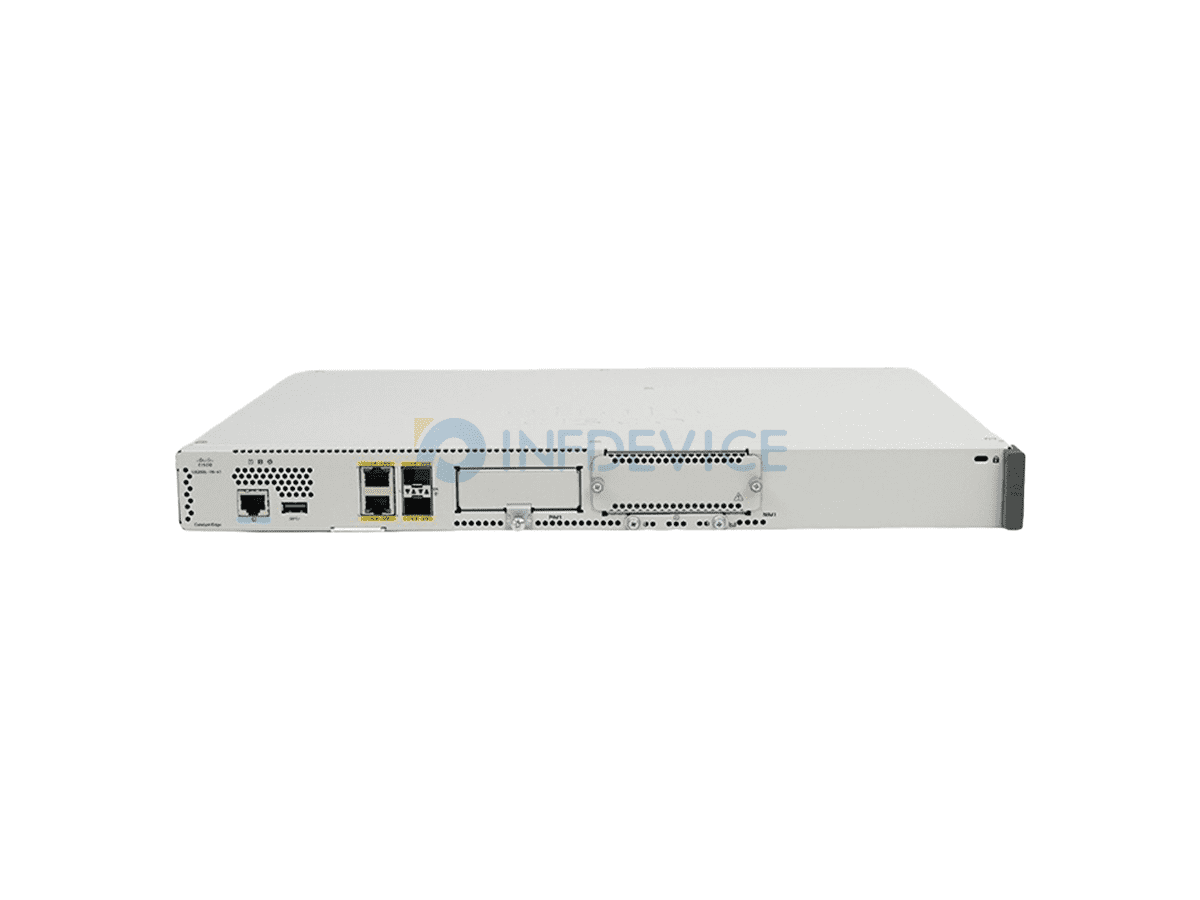

C8200L-1N-4T

C8200L-1N-4T Specification

Description

C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports

Multicore processors

Intel x86 CPU with 4 GB memory default

Embedded IPsec VPN hardware acceleration

up to 500 Mbps IPsec traffic

SD-WAN overlay tunnels scale

1500

Integrated Gigabit Ethernet ports

4 built-in Ethernet WAN ports

2 SFP Ethernet ports, 2 RJ45 ports

Flash memory support

8-GB flash

Power supply

AC power supply

Modularity and form factor

1-Rack Unit (1RU) form factor

Supports NIM and Pluggable Interface Module (PIM) slots

1G port density

4

Slots

1 NIM

1 PIM

DRAM

4 GB

Storage (M.2 SSD) default

16 GB

IPv4 forwarding throughput (1400 bytes)

Up to 3.8 Gbps

IPsec throughput (1400 bytes, clear text**)

Up to 500 Mbps

Number of IPsec static virtual tunnel interface (SVTI) tunnels

1500

Number of access control lists (ACLs) per system

4000

Number of IPv4 access control entries (ACEs) per system

72,000

Number of IPv4 routes

800,000 with default 4 GB, up to 4M with 32 GB

Number of IPv6 routes

800,000 with default 4 GB, up to 4M with 32 GB

Number of queues

16,000

Number of Network Address Translation (NAT) sessions

600,000 with default 8 GB, up to 2M with 32 GB

Number of firewall sessions

512,000

Number of Virtual Route Forwarding (VRF) instances

2000
