C1111-8P

Model:

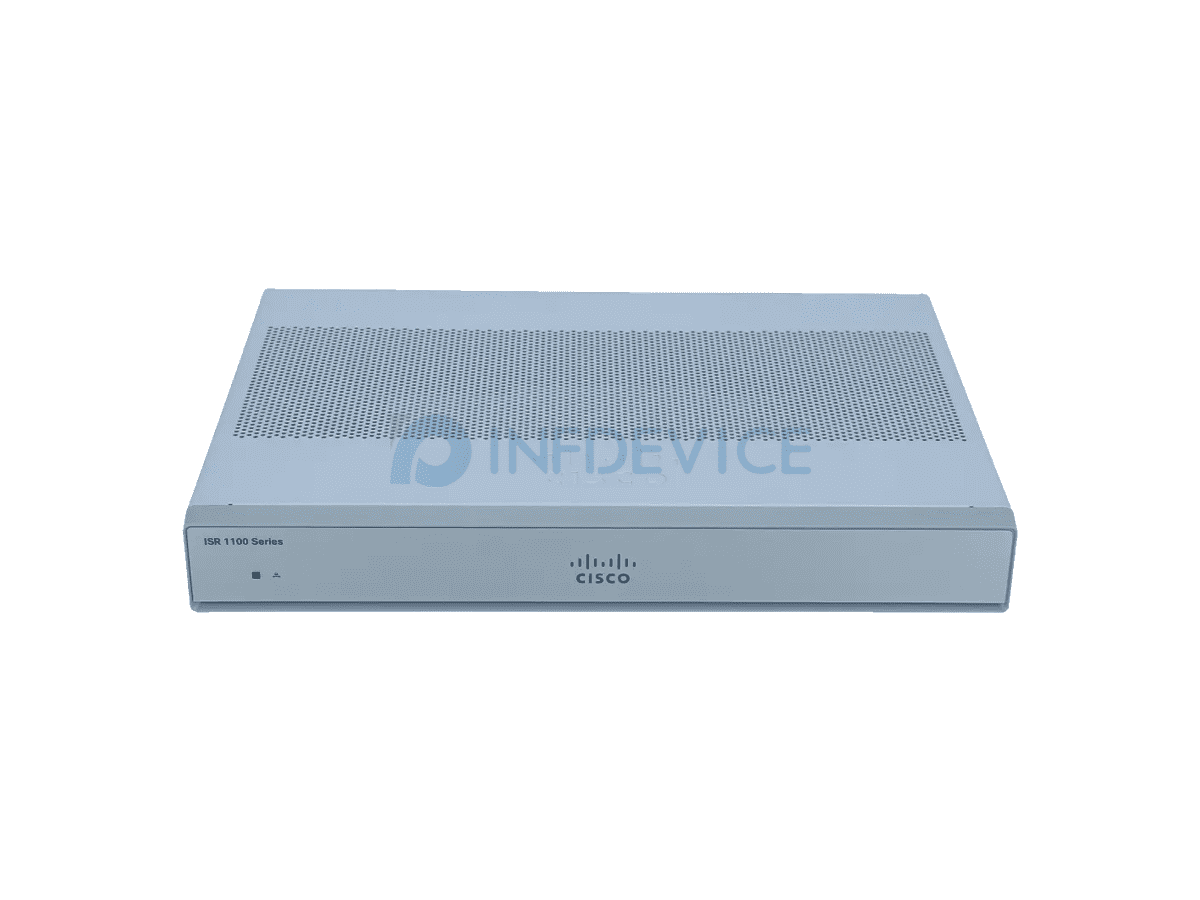

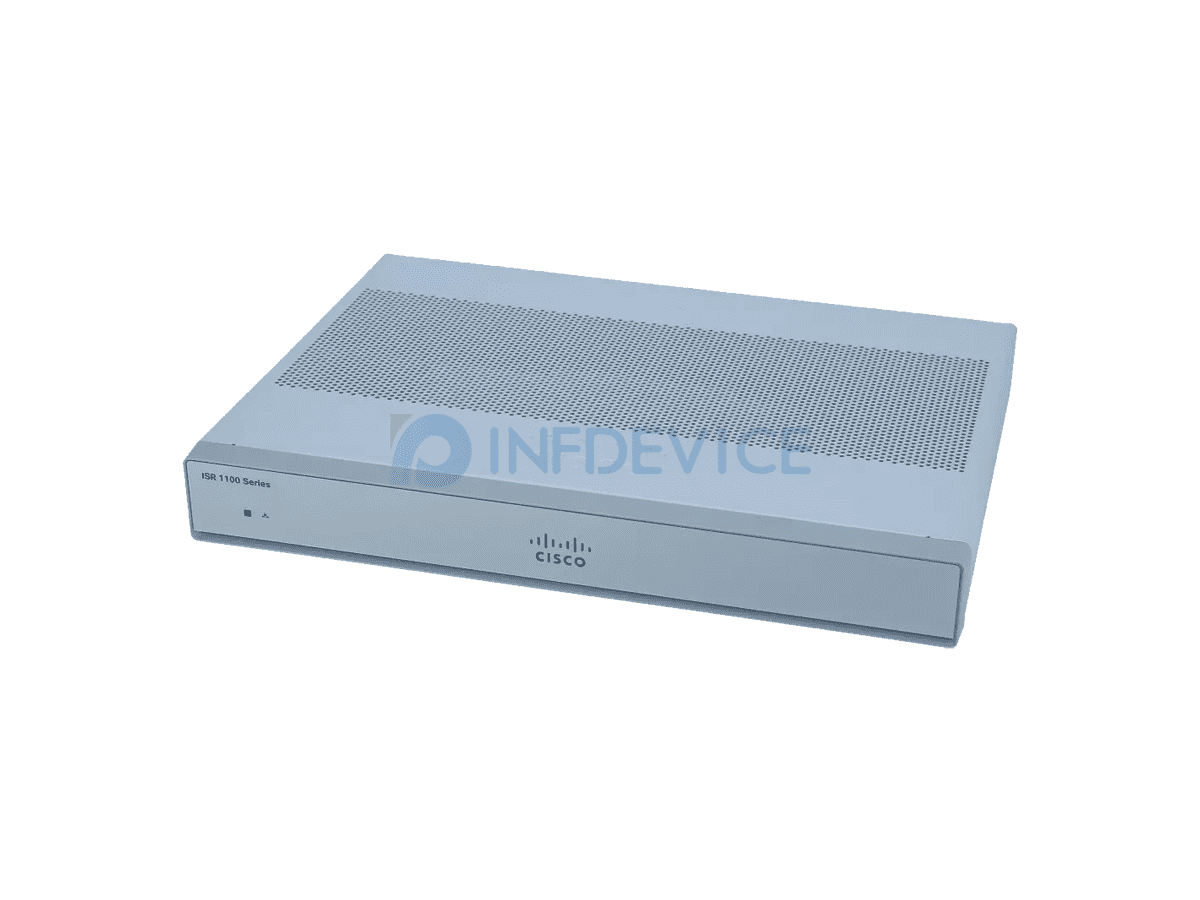

C1111-8P - Cisco ISR 1100 Series Router

Detail:

Cisco 1100 Series Router ISR 1100 8 Ports Dual GE WAN Ethernet Router

Price:

US$579.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Small Business Routers Router

Add to Cart

Cisco C1111-8P Ovenview

The Powerhouse Router for SMBs

The Cisco C1111-8P, part of the Cisco 1100 Series Integrated Services Routers (ISRs), is a high-performance networking solution designed to meet the diverse needs of small and medium-sized businesses (SMBs). Powered by Cisco IOS® XE Software, it provides a comprehensive suite of features in a compact and energy-efficient form factor.

Key Features and Benefits

Feature	Description	Benefit
High Performance	Delivers fast and reliable network speeds to support concurrent data, voice, video, and wireless services.	Enables businesses to take full advantage of broadband connectivity without compromising on performance.
Comprehensive Security	Integrated application inspection firewall, high-speed IPsec encryption, and support for various VPNs.	Protects your network from threats and ensures data privacy.
Wired and Wireless Connectivity	Provides both wired and wireless access in a single platform.	Simplifies network management and reduces the need for separate devices.
Flexibility	Supports PoE and PoE+ for powering devices, along with various SFP modules for WAN connectivity.	Adapts to different network requirements and allows for future expansion.
Easy Management	Remote configuration and management options streamline operations and reduce IT overhead.	Enables efficient network administration even with limited IT staff.

Ideal for SMB Branch Offices

The Cisco C1111-8P is the perfect choice for SMB branch offices looking for a reliable, secure, and high-performance networking solution that is easy to manage and can grow with their business.

Specification

C1111-8P Specification

C1111-8P Specification
Description	ISR 1100 8 Ports Dual GE WAN Ethernet Router
Physical Properties
Dimensions (H x W x D)	Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules)	5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage	Universal 100 to 240 VAC
Frequency	50-60 Hz
Input current	PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum
Surge current	90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port	One RJ-45: Separate console port
USB port	USB 3.0 Type A host port USB devices supported: USB flash memory
Console port	One USB 5-pin micro Type B: Console management connectivity
10/100/1000 Gigabit Ethernet	Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
Wireless VLANs	32 (encrypted and non-encrypted VLANs)
Wireless specifications	2x2 .11ac Wave 2
Default and maximum DRAM	4GB
Default and maximum flash	4GB
Inline PoE	4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+
Acoustic for Cisco 1100 Series ISRs	Not Applicable - Fanless design
Approvals and compliance	Emission 47 CFR Part 15 CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003
Environmental
Operating humidity	5 to 85% relative humidity
Operating temperature	32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft
Altitude in China	0-6560 ft (0-2000 m)
Altitude in all other countries	0-10,000 ft (0-3050 m)
Transportation and Storage
Nonoperating temperature	-40 to 158°F (-40 to 70°C)
Nonoperating humidity	5 to 95% relative humidity (noncondensing)
Nonoperating altitude	0 to 15,000 ft (0 to 4570m)

Q&A

What are common troubleshooting steps for the Cisco C1111-8P Router?

Common troubleshooting steps include restarting the device, verifying cable connections, and ensuring the latest firmware is installed.

How does the Cisco C1111-8P Router compare with other Cisco routers?

The C1111-8P offers a balance of performance and affordability, ideal for small businesses compared to higher-end Cisco models.

Can the Cisco C1111-8P Router support dual WAN connections?

Yes, it supports dual GE WAN connections for redundancy and load balancing.

Does the Cisco C1111-8P Router support Power over Ethernet (PoE)?

Yes, it supports both PoE and PoE+ for powering devices like IP phones and access points.

What security features are included in the Cisco C1111-8P Router?

It includes features like a firewall, VPN support, and content filtering for enhanced network security.

Support FAQ

Warranty terms

We promise that our products are original and genuine only. Brand-new products will be brand new and sealed to ensure no malfunctions, and second-hand products will undergo strict testing before shipment.

We offer a 1-year warranty for brand-new products and a 90-day warranty for second-hand products. During the warranty period, if the equipment you purchase has any operational defects, we will replace it for you (the warranty does not cover faults caused by human damage and improper use).

Once the product malfunctions, please notify us as soon as possible, and we will appreciate your detailed description or photos.

The warranty period is calculated from the date of receipt of the goods. For any issues or inquiries regarding your purchase, please feel free to contact us via WhatsApp (+86 152 7186 6615) or Skype/Email: sales@infdevice.com
