C1111-4P

Model:

C1111-4P - Cisco 1100 Series Router

Detail:

Cisco 1100 Series, ISR 1100 4 Ports Dual GE WAN Ethernet Router

Price:

US$684.00

Delivery:

1 Month Standard Lead Time
Need it sooner? Contact our sales team.

Tags:

Small Business Routers Router

Add to Cart

C1111-4P Overview

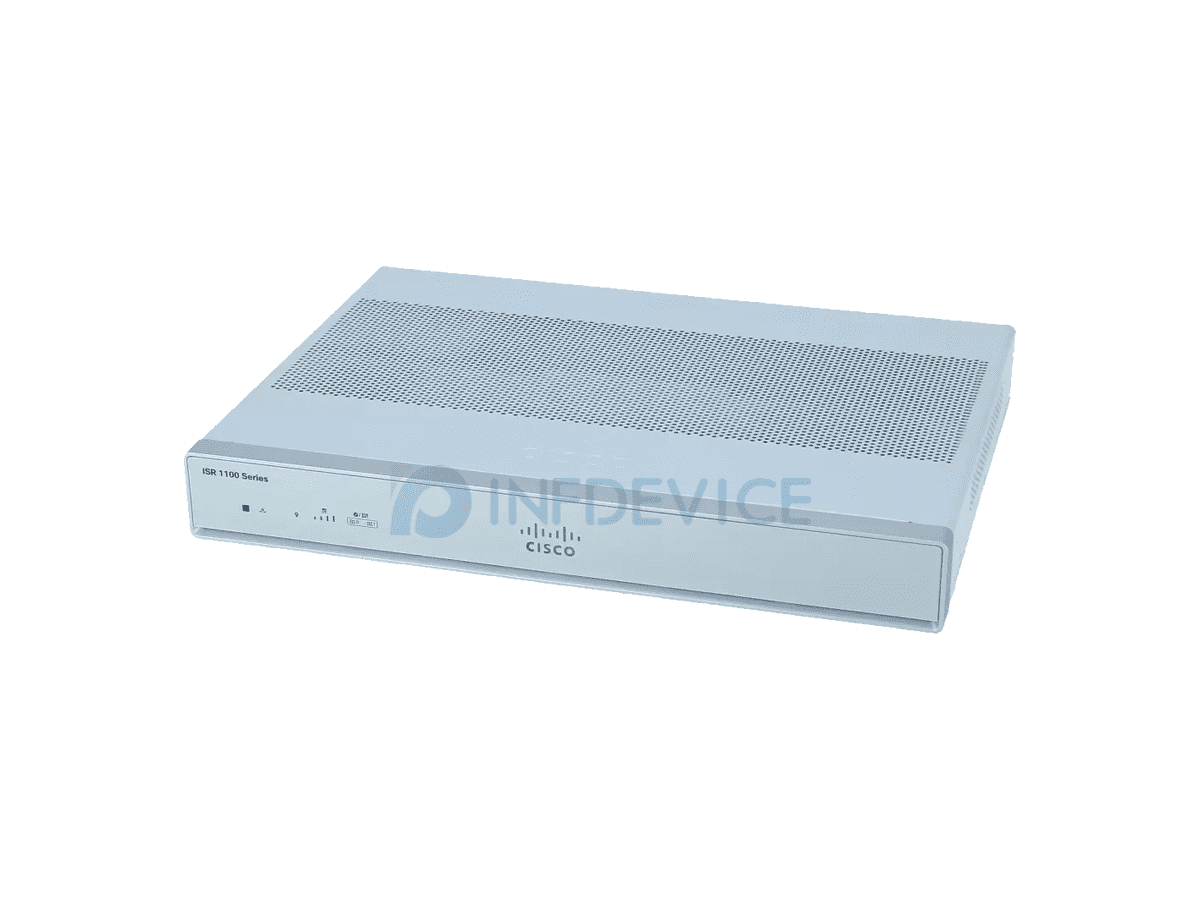

C1111-4P Cisco 1100 Series Integrated Services Router

The Cisco C1111-4P is a compact and powerful router designed for small to medium-sized businesses. It offers a range of features to support your network needs, including WAN connectivity, security, and wired/wireless access.

Key Features

High Performance: Handles concurrent data, voice, and video services with minimal performance degradation.
Versatile Connectivity: Offers 1 WAN port, 1 WAN GE/SFP combo port, and 4 GE LAN ports.
Power over Ethernet: Provides PoE and PoE+ power to endpoints.
Compact Design: Ideal for environments where space is limited.
Security: Includes integrated firewall, IPSec encryption, and support for Cisco Umbrella security.

Specifications

Feature	Description
Model	C1111-4P
WAN GE	1
WAN GE/SFP Combo	1
ADSL2/VDSL2+	N/A
LTE Advanced (CAT6)	N/A
802.11ac	N/A
LAN GE	4
PoE	2
PoE+	1
Integrated USB 3.0 AUX/Console	Yes
Dimensions (H x W x D)	1.75 x 12.7 x 9.03 in. (42 x 323 x 230 mm)
Weight with AC PS (w/o modules)	5.5 lbs (2.5 kg)

Business Benefits

Business Need	Features/Description
Space-Saving and Energy Efficient	Compact size and low power consumption make it suitable for various environments.
High Performance	Run multiple services simultaneously with minimal performance impact.
Reliable Connectivity	Redundant WAN connections and dynamic failover protocols ensure business continuity.
Strong Security	Multi-level security features protect your network from threats.
Simplified Management	Unified control of wired and wireless networks from a single console.
Remote Management	Supports remote configuration and management.
Cost-Effective	Lower WAN expenditures and pay-as-you-grow licensing model.

Specification

C1111-4P Specification

C1111-4P Specification
Description	ISR 1100 4 Ports Dual GE WAN Ethernet Router
Physical Properties
Dimensions (H x W x D)	Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules)	5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage	Universal 100 to 240 VAC
Frequency	50-60 Hz
Input current	PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum
Surge current	90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port	One RJ-45: Separate console port
USB port	USB 3.0 Type A host port USB devices supported: USB flash memory
Console port	One USB 5-pin micro Type B: Console management connectivity
10/100/1000 Gigabit Ethernet	Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
Wireless VLANs	32 (encrypted and non-encrypted VLANs)
Wireless specifications	2x2 .11ac Wave 2
Default and maximum DRAM	4GB
Default and maximum flash	4GB
Inline PoE	4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+
Acoustic for Cisco 1100 Series ISRs	Not Applicable - Fanless design
Approvals and compliance	Emission 47 CFR Part 15 CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003
Environmental
Operating humidity	5 to 85% relative humidity
Operating temperature	32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft
Altitude in China	0-6560 ft (0-2000 m)
Altitude in all other countries	0-10,000 ft (0-3050 m)
Transportation and Storage
Nonoperating temperature	-40 to 158°F (-40 to 70°C)
Nonoperating humidity	5 to 95% relative humidity (noncondensing)
Nonoperating altitude	0 to 15,000 ft (0 to 4570m)

Q&A

What accessories are compatible with the Cisco C1111-4P Router?

Compatible accessories encompass mounting kits, supplementary power supplies, and optional security licenses for bolstering network protection.

How does the Cisco C1111-4P Router compare to similar products?

The C1111-4P distinguishes itself with its dual GE WAN ports, integrated security features, and competitive performance-to-cost ratio.

How is the Cisco C1111-4P Router managed?

Management is facilitated through Cisco IOS XE software, offering both a CLI and web-based configuration tools for simplified network administration.

Does the Cisco C1111-4P Router support Power over Ethernet (PoE)?

Yes, it supports both PoE and PoE+ for powering compatible devices.

What is the maximum throughput of the Cisco C1111-4P Router?

It has a maximum throughput of up to 1 Gbps.
