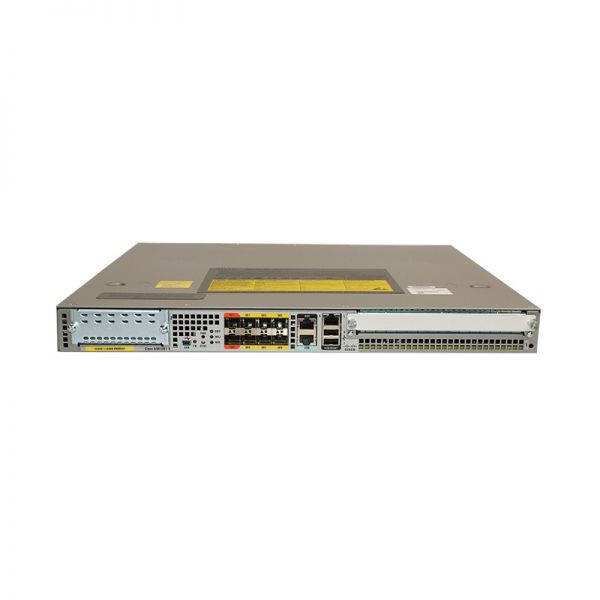

C1-ASR1002-HX/K9 Specification |
|
Physical specifications |
Height: 3.5 in. (88.9 mm) Width: 17.3 in. (439.4 mm) Depth: 19.25 in. (489.0 mm) Weight: ● 34 lb (15.45 kg) (with dual AC power supplies) ● 34 lb (15.45 kg) (with dual DC power supplies) |
Default memory |
16-GB DRAM shared across route processor, ESP, and MIP |
Number of SIPs or Ethernet line cards supported |
Integrated in chassis |
Shared port adapters |
N/A |
Ethernet port adapters |
1 EPA slot |
Cisco ASR 1000 Series ESP |
Integrated in chassis |
Route processor |
Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor |
Redundancy |
Software: Yes |
Built-in Gigabit Ethernet ports |
Yes: 8 Gigabit Ethernet SFP ports |
Built-in 10 Gigabit Ethernet port |
Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
Network interface module |
Yes |
ESP support |
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) equivalent |
ESP bandwidth |
100 Gbps |
ESP memory |
Share the same control memory on route processor |
SIPs and Ethernet line cards |
Integrated in chassis: not upgradable |
Embedded hardware-based encryption |
Yes: Up to 25-Gbps crypto support throughput |
Minimum Cisco IOS XE Software release |
Cisco IOS XE Software Release 16.2.1S |
Rack-mounting |
Yes: 19-inch |
Wall-mounting |
No |
External USB flash memory |
1-GB USB flash-memory support |
Redundant power supply |
Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
Power input |
Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal) |
Power consumption |
● Maximum (DC): 500W ● Maximum (AC): 500W |
Airflow |
Front-to-back |
Operating temperature (nominal) |
32 to 104°F |
Operating temperature (short-term) |
32 to 122°F |
Operating humidity (nominal) (relative humidity) |
10 to 85% |
Operating humidity (short-term) |
5 to 90% |
Storage temperature |
-40 to 150°F (-40 to 70°C) |
Storage humidity (relative humidity) |
5 to 95% |
Operating altitude |
-500 to 10,000 feet |
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 |
EMC standards |
Emissions ● FCC 47CFR15 Class A ● AS/NZS CISPR 22 ● CISPR 22 Class A ● EN55022 Class A ● ICES-003 Class A ● VCCI Class A ● CNS-13438 Class A ● EN61000-3-2 ● EN61000-3-3 Immunity ● IEC/EN61000-4-2 Electrostatic Discharge Immunity ● IEC/EN61000-4-3 Radiated Immunity ● IEC/EN61000-4-4 EFT-B Immunity ● IEC/EN61000-4-5 Surge ● IEC/EN61000-4-6 Immunity to Conducted Disturbances ● IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity ● IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations ETSI/EN ● EN55022/CISPR 22 Information Technology Equipment (Emissions) ● EN55024/CISPR 24 Information Technology Equipment (Immunity) ● EN300 386 Telecommunications Network Equipment ● EN50082-1/EN61000-6-1 Generic Immunity Standard |
Safety Standard |
UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
