ASR-9001 Specifications

Type

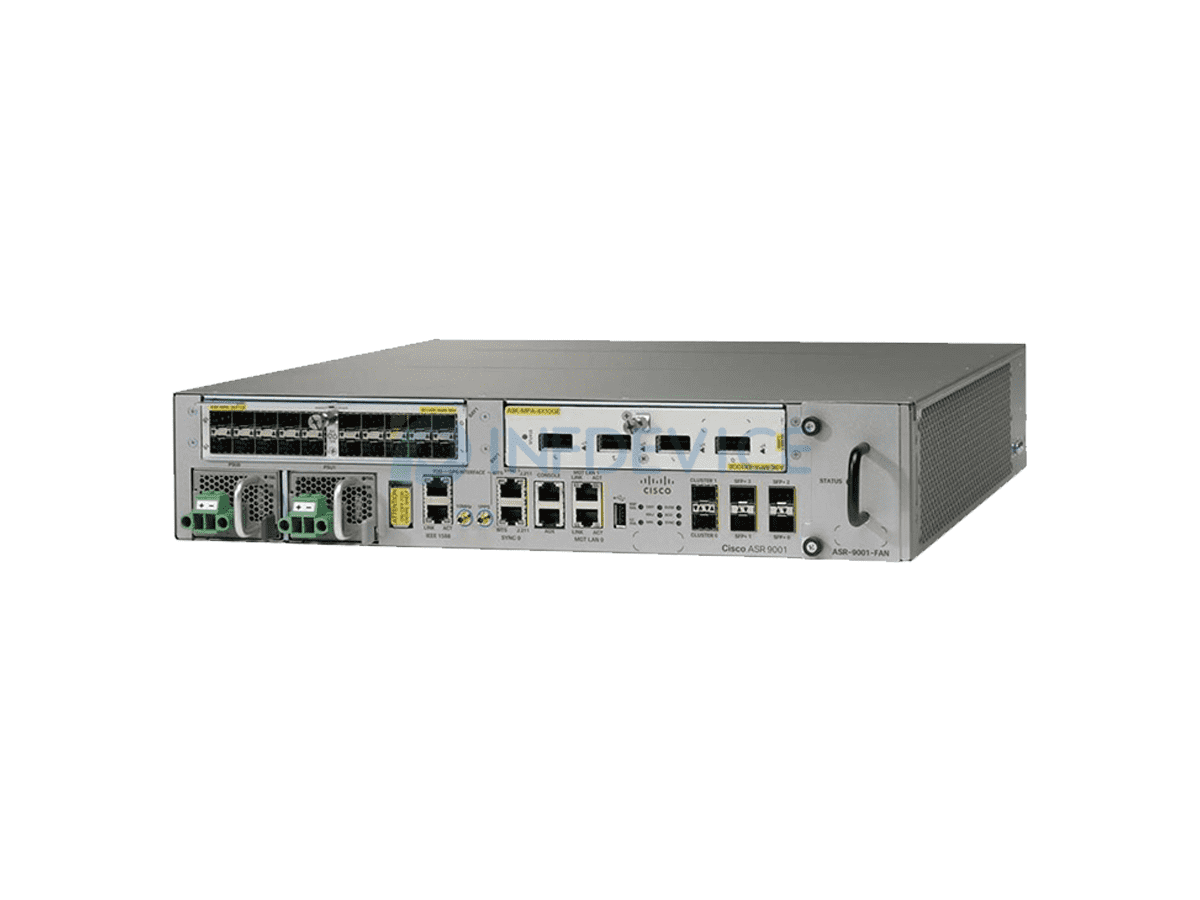

Cisco ASR 9001 Chassis

Integrated interfaces

4 x 10 GE SFP+

Modular port adapters

20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE

Redundancy

Power supply redundancy

Power supply part number

●  A9K-750W-AC

●  A9K-750W-DC

Physical specifications

●  Height: 3.472 inches (88.2 mm)

●  Width: 17.42 inches (442 mm)

●  Depth: 18.5 inches (470 mm)

●  Weight of chassis: 30.2032 lbs (13.7 kg)

●  Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg)

Power inputs

●  Worldwide ranging AC (90-265V; 50-60 Hz)

●  Worldwide ranging DC (-40V to -72V)

Power consumption

425 watts typical, 525 watts maximum

Environmental conditions

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90%, noncondensing

●  Regulatory compliance

Environmental Specifications

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature
(short-term)

23 to 131ºF (-5 to 55ºC)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity
(short-term)

5 to 90%
Note: Not to exceed 0.024 kg water or dry air

Storage temperature

-40 to 158ºF (-40 to 70ºC)

Storage (relative humidity)

5 to 95%
Note: Not to exceed 0.024 kg water or dry air

Operating altitude

-1800m

Air flow

Side to side

Compliance

Network Equipment Building Standards (NEBS)

Cisco ASR 9001 is designed to meet:

●  SR-3580: NEBS Criteria Levels (Level 3)

●  GR-1089-CORE: NEBS EMC and Safety

●  GR-63-CORE: NEBS Physical Protection

●  VZ.TPR.9205: Verizon TEEER

ETSI standards

Cisco ASR 9001 is designed to meet (qualification in progress):

●  EN300 386: Telecommunications Network Equipment (EMC)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

●  EN55022: Information Technology Equipment (Emissions)

●  EN55024: Information Technology Equipment (Immunity)

●  EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9001 is designed to meet:

●  FCC Class A

●  ICES 003 Class A

●  AS/NZS 3548 Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  BSMI Class A

●  IEC/EN 61000-3-2: Power Line Harmonics

●  IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

●  EN 50121-4: Railway EMC

Immunity

Cisco ASR 9001 is designed to meet:

●  IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

●  IEC/EN-61000-4-3: Radiated Immunity (10V/m)

●  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

●  IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

●  IEC/EN-61000-4-5: Signal Ports (1kV)

●  IEC/EN-61000-4-5: Surge DC Port (1kV)

●  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

●  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

●  IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

●  EN 50121-4: Railway EMC

Safety

Cisco ASR 9001 is designed to meet:

●  UL/CSA/IEC/EN 60950-1

●  IEC/EN 60825 Laser Safety

●  ACA TS001

●  AS/NZS 60950

●  FDA: Code of Federal Regulations Laser Safety
